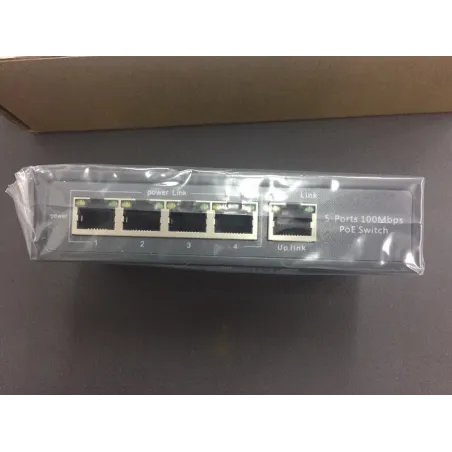

Power Switch PUS051D-24V Passive POE Switch 5 Port 10/100Mbps จ่ายไฟ 4 Port 24VDC-3A สูงสุด 72W

Overview

Power Switch PUS051D-24V Passive POE Switch 5 Port 10/100Mbps จ่ายไฟ 4 Port 24VDC-3A สูงสุด 72W ใช้ร่วมกับอุปกรณ์ที่รองรับ POE แบบ Passive เช่น Deliberant, Ubiquiti, Mikrotik, Engenius

Interface

5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

PoE Ports (RJ45)

PoE Ports: Port1- Port4
Power Supply: 75W

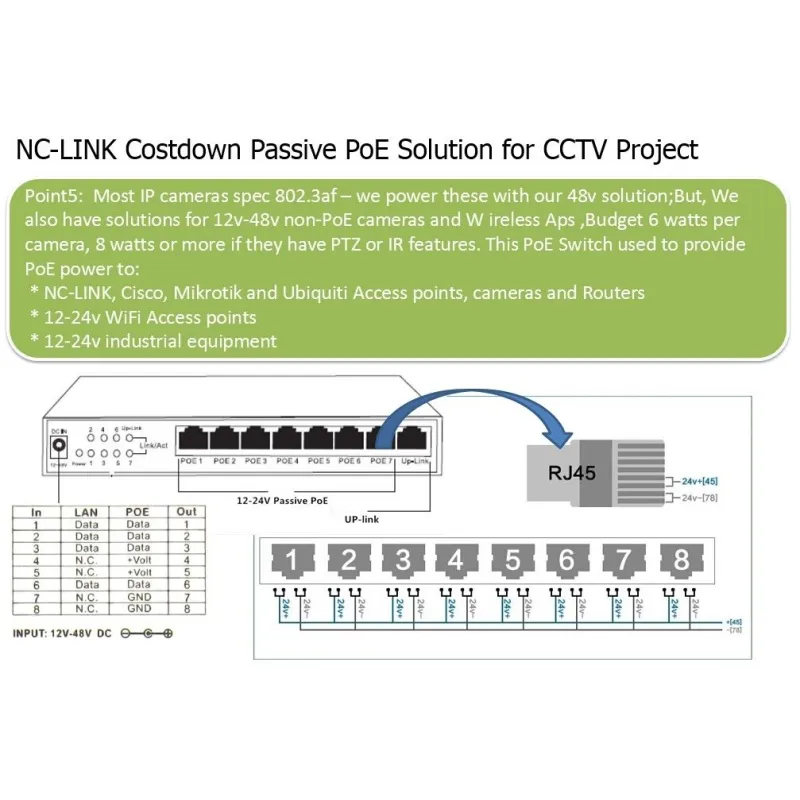

PoE Pin definition

4/5 (+), 7/8 (-)

Backbound Bandwidth

1Gbps

Power Supply

DC 24V/3A

Fan Quantity

Fanless

Dimensions (L xW x H )

138mm*86mm*25mm

SOFTWARE

Transfer Method

Store and Forward

MAC Address Table

2K

Advanced Functions

Compatible With 24V passive PoE Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Others

Certification

CE

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Package

5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Power Adapter
User Guide

รับประกัน

สินค้ารับประกัน 1 ปี
