Product Specification
|
|
|
Overview
|

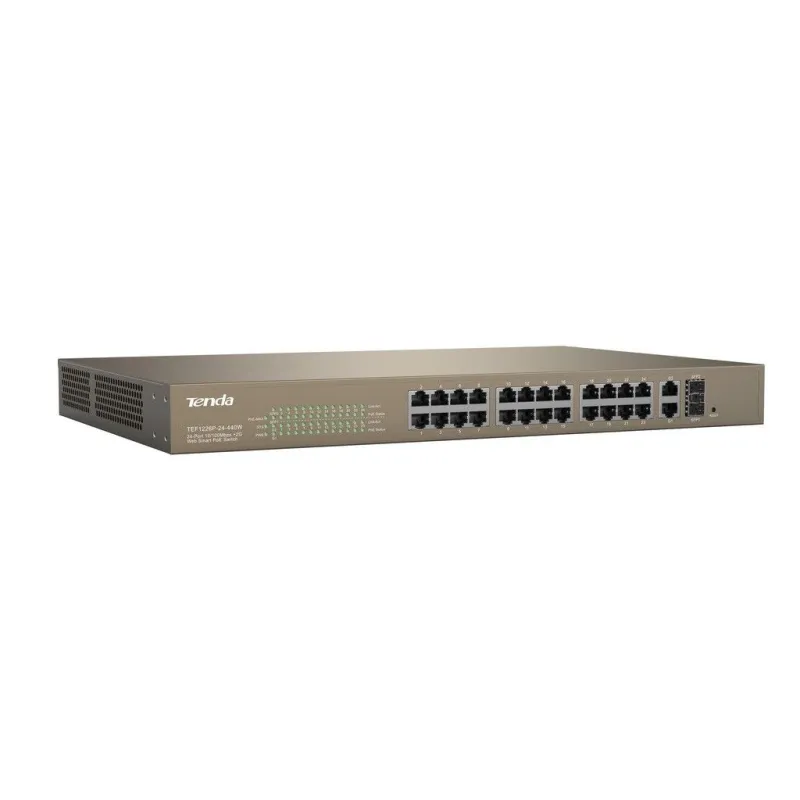

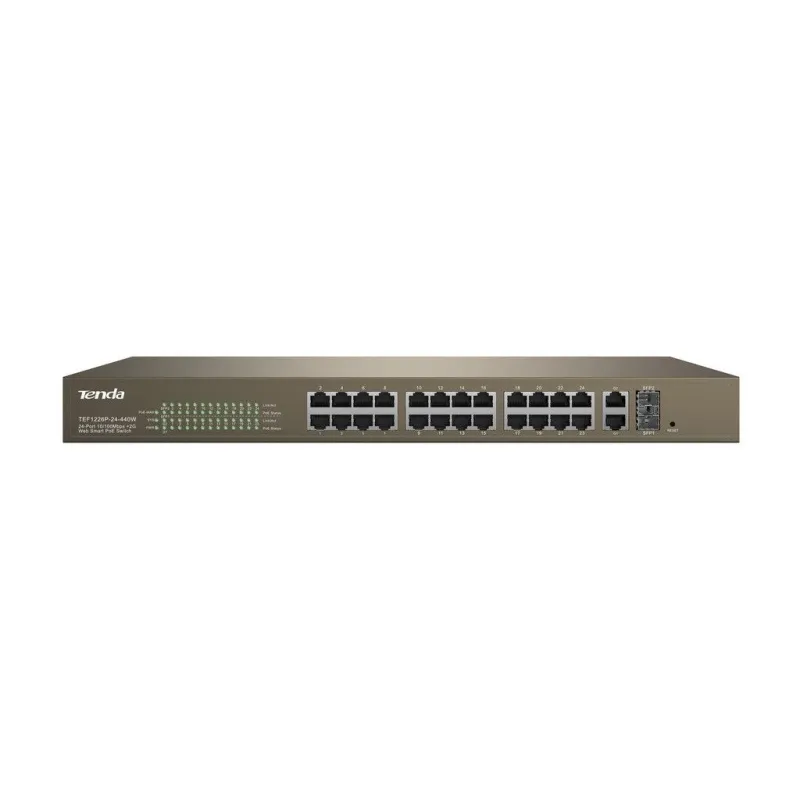

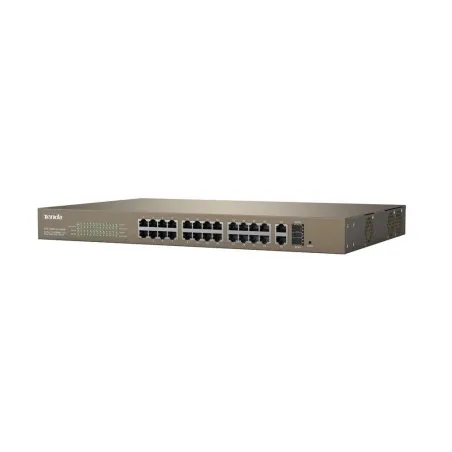

TENDA TEF1226P-24-440W L2 Manage PoE Switch 24 Port 100Mbps, 2 Port Gigabit , 2 Port SFP จ่ายไฟ POE 802.3af/at 24 Port จ่ายไฟสูงสุดรวม 440W
|
|
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
|
|
MTBF
|
100,000hours
|
|
Indicator
|
Link/Act, PoE Status,System, Power,PoE Max
|
|
Interface
|
Fixed Ports:24 10/100Base-TX ports
2 10/100/1000Base-T ports
2 1000Base-X SFP ports Combo)
lightning protection:?6KV |
|
Performance
|
Store and forward:Yes
Exchange capacity:8.8 Gbit/s
MAC address entries:4K MAC |
|
Power
|
Power supply module:Providing 24 ports under IEEE 802.3af(15.4W) or 24 ports under IEEE 802.3at(30W)
PoE through pin:1 2 4 5 +,3 6 7 8 -
Voltage input range:AC:100-240V~ 50/60Hz |
|
Dimension
|
440mm*284mm*44mm (L?W?H)
|
|
Weight
|
?5kg
|
|
Power Consumption
|
<450W
PoE consumption up to 370W
|
|
Temperature
|
Perating temperature:0 ?~40 ?
Storage temperature:-40 ?~70 ?
|
|
Humidity
|
Operational:10%~95%(noncondensing)
Storage:10%~95%(noncondensing)
|
|
PoE supply management
|
Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module
|
|
VLAN
|
Support VLAN(4K) based on ports
Support 802.1QVLAN
|
|
Mirroring
|
Support local mirror image
|
|
|
Support LACP, manual link aggregation
Support up to 6 link aggregation groups and up to 8 GE ports per group
|
|
QoS
|
Support message transmission for ports and limitation of speed
Support SP & WRR
|
|
Layer 2 ring network protocol
|
Support STP/RSTP and looped Network for devices
|
|
Certification
|
FCC/CE/RoHS
|
