Product Specification | |

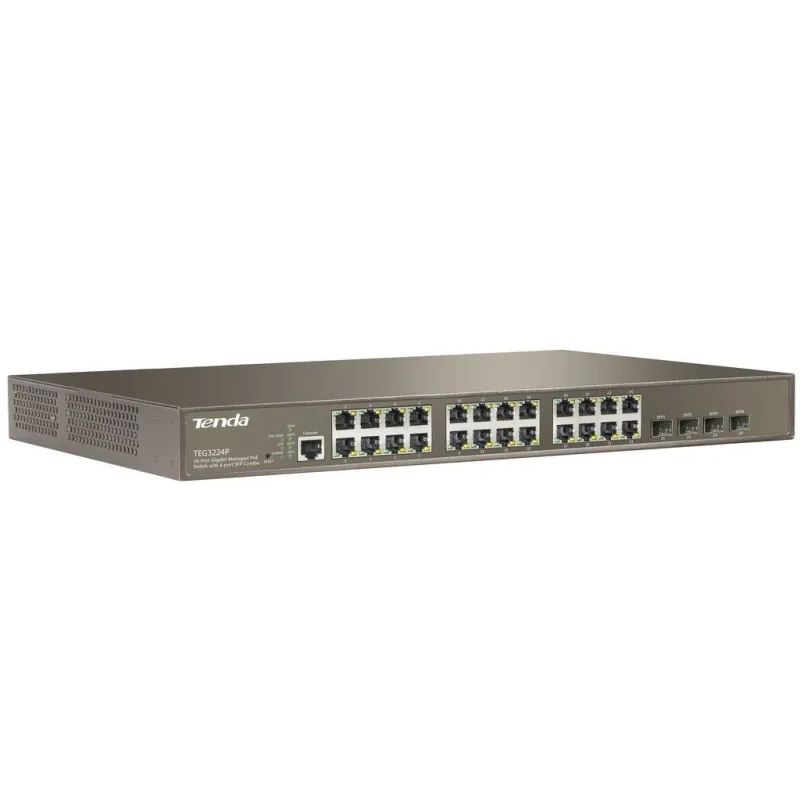

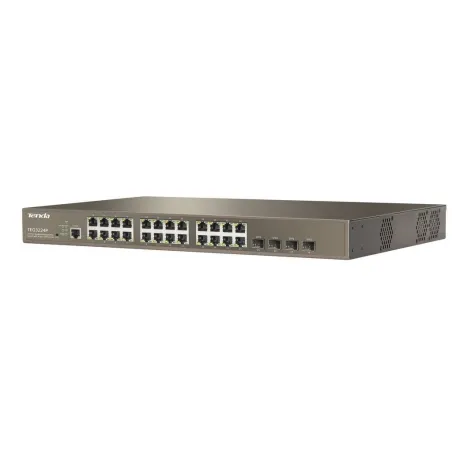

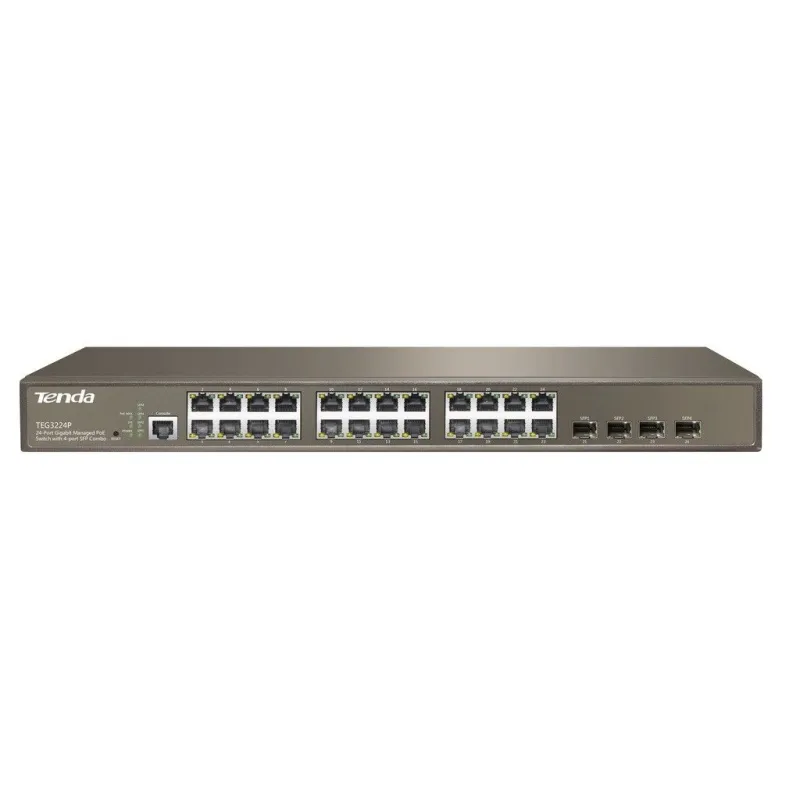

Overview | TENDA TEG3224P L2 Manage PoE Gigabit Switch 24 Port 1000Mbps, 4 Port SFP จ่ายไฟ POE 802.3af/at 24 Port จ่ายไฟสูงสุดรวม 440W รองรับ DHCP Snooping |
| IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at |
Layer 2 switch | All ports support linear forward
Packet forwarding speed: 35.7Mpps |
MTBF | 100,000hours |
Store & Forward | Yes |
Switch Fabric | 56Gbit/s |
MAC Address Table | 8K MAC
Support set port MAC address learning maximum number |
Fixed Port | 24 10/100/1000Base-T ports (Data/PoE)
4 10/100/1000 Base-X SFP ports ( Combo) |
Optional Module | SFP optical fiber module with single port |
Power supply module | Supply 24 RJ-45 802.3af(15.4W)/12 RJ-45 802.3at(30W)
Power Pin Assignment: 1/2(+),3/6(-) |
Input Voltage | AC:176V~264V
50/60Hz |
Dimension | 440*284*44 (W x D x H mm) |
Weight | <5kg |
Consumption | Power consumption:<450W
PoE Power Budget:370 Watts |
Operation Temperature | 0~45 Degree C |
Operating Humidity | 10%~95%(Non-condensing) |
Port Trunking | Support LACP
Support manual polymerization
12 groups of port trunk support,up to 16 GE port per trunk group |
PoE supply management | PoE port setting and power priority supply setting
PoE over temperature protection
Smart graphical management and detection of PD equipment, (priority, port state, power allocation, PD equipment state), intelligent management power of PD equipment |
Layer 2 ring network protocol | Conform to STP/RSTP/MSTP
Support equipment to prevent the loop |
VLAN | Support port-based VLAN(4K)?protocol-based VLAN Compliant with Voice VLAN?VLAN Mapping?VLAN VPN(QinQ),flexible QinQ |
DHCP | DHCP Snooping?DHCP Relay/Client/Server
DHCP Snooping Option82/DHCP Relay Option82 |
Multicast | Support IGMP Snooping?multicast VLAN?IGMP V1/V2?PIM-SM/ PIM-DM/MSDP |
Mirroring | N:1 port mirror?flow mirror?RSPAN(Remote port mirror) |
ACL | Support L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address, the destination MAC address, the source IP address, destination IP address, TCP/UDP port number and protocol type, VLAN and illegal frame filtering
Support based on |
QoS | Support for the rate at which port to receive a message and send a message to limit the speed
Support message to redirect, the function of the CAR
Support 8 port output queue
Support port queue scheduling (SP,WRR)
Support port queue scheduling (SP,WRR)
|
Security | User classification management,and password protection
IEEE 802.1 X authentication
Centralized MAC address authentication
Protection of the ARP,IP source address intrusion detection
Support SSH2.0, port isolation |
Management | XModem/FTP/TFTP load to upgrade
Support command line interface (CLI), Telnet, the configurations of the Console port
Support the SNMP v1 / v2, v3 and WEB network management
Support RMON (Remote Monitoring) 1,2,3,9 group MIB
Support system logs, hierarchic |
Certification | FCC/CE/RoHS |
