USW-Pro-Max-24-POE Product Specification |

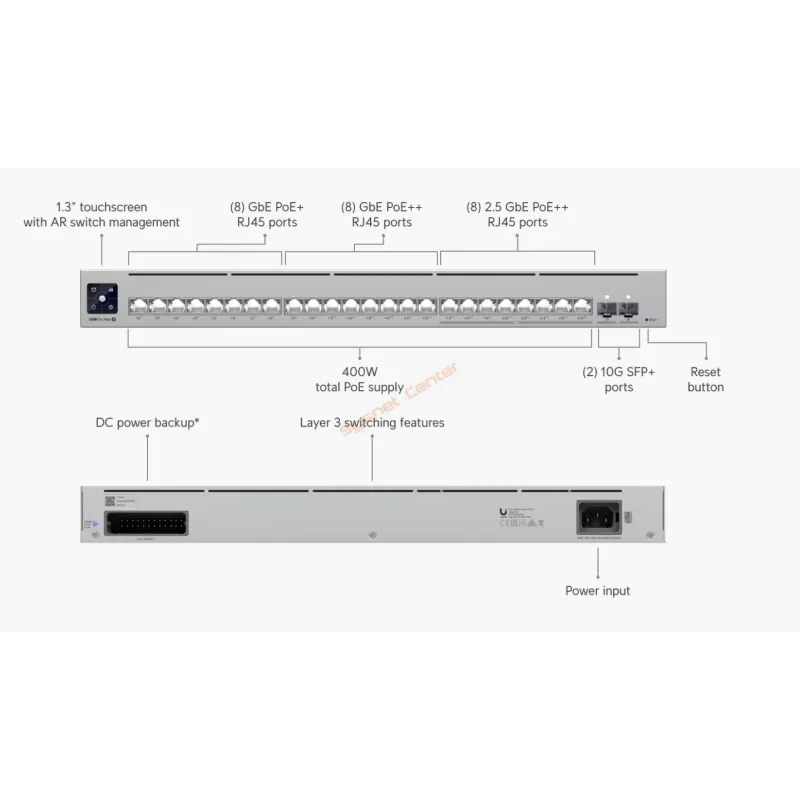

Overview | Ubiquiti Professionnal Switch USW-Pro-Max-24-POE L2-L3 Managed Gigabit POE Switch 16 (8 PoE+; 8 PoE++) Gigabit + 8 (All PoE++) 2.5/1G, 2 Port SFP+ 10Gbps, จ่ายไฟ POE 802.3af/at/bt 24 Port สูงสุด 400W Layer 3 Feature รองรับการทำ Inter VLAN, Routing, Static Routing, DHCP Server 16 (8 PoE+ ; 8 PoE++) (1G/100M/10M) 2.5 GbE RJ45 8 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G) |
Performance |
Switching Capacity | 112 Gbps |
Total Non-Blocking Throughput | 56 Gbps |
Forwarding Rate | 83 Gbps |
Supported VLANs | 1,000 |
MAC Address Table Size | 16,000 |
L3 Table Size | 6,000 |
Packet Buffer Size | 1.5MB |
Layer 3 Features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
Hardware | PoE Ports -PoE+ : 8 -PoE++ : 16 |
Layer 2 Features | LACP Port Aggregation, STP & RSTP, QoS (DSCP)Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)Advanced IGMP Configuration (Querier, Fast Leave, Router Port)IGMP Snooping802.1X ControlMAC-Based ACLs & Device IsolationDHCP Snooping & GuardingEgress Rate LimitFlow ControlStorm ControlMulticast & Broadcast Rate LimitingMAC Address BlockingIP-Based ACLs & Network IsolationMAC-Based Port RestrictionPort IsolationPort MirroringJumbo FramesLLDP-MEDVoice VLANLoop Protection |
Max. PoE Wattage per Port by PSE | 802.3af: 15.4W802.3at: 32W802.3bt: 64W |
Max. PowerConsumption | 50W (Excluding PoE Output) 450W (Including PoE Output) |

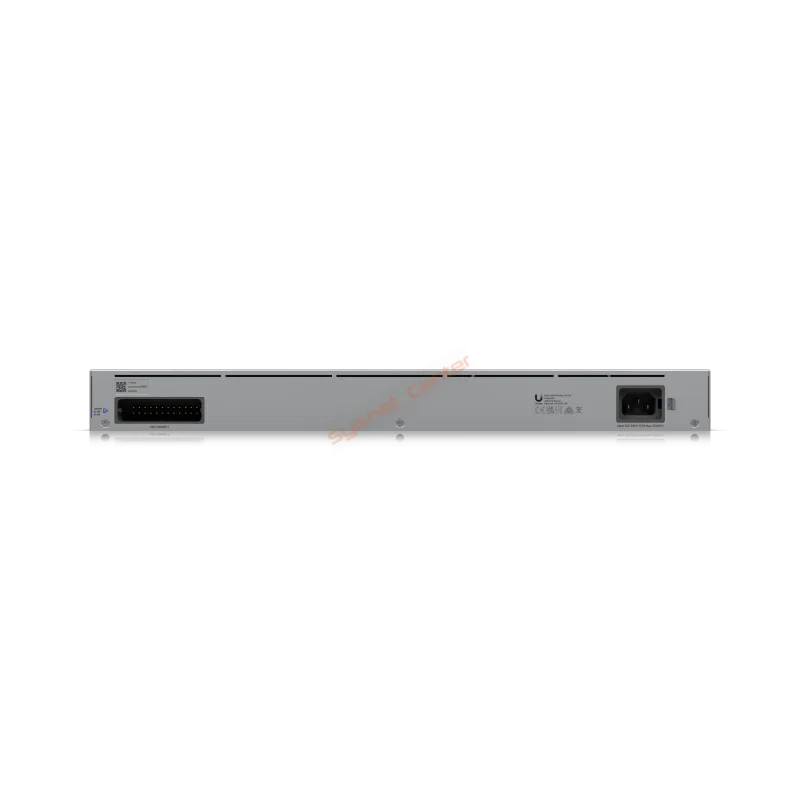

Power Method | (1) Universal input, 100-240V AC, 50/60 Hz (1) USP RPS DC input |
Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
LCM Display | 1.3" touchscreen |
Management | Ethernet AR |
Power Supply | AC/DC, internal, 550W |
Supported Voltage Range | 100-240V DC |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% Noncondensing |
Certifications | CE, FCC, IC |
Heat Dissipation (Excluding PoE Output) | 119 BTU/hr |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Software | UniFi Network Version 8.0.24 and later |
ประกัน | 2 ปี |
