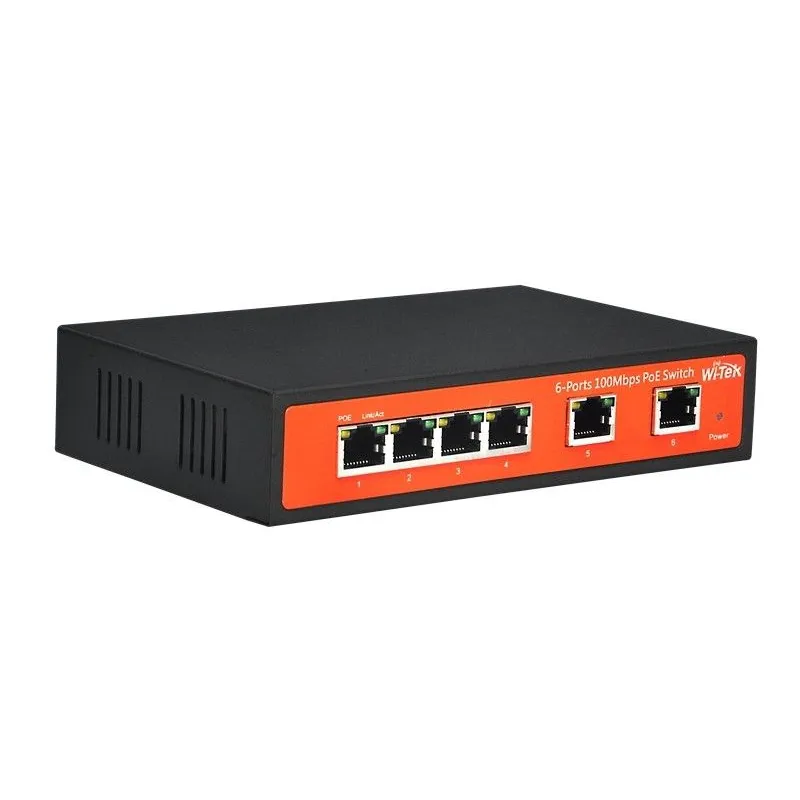

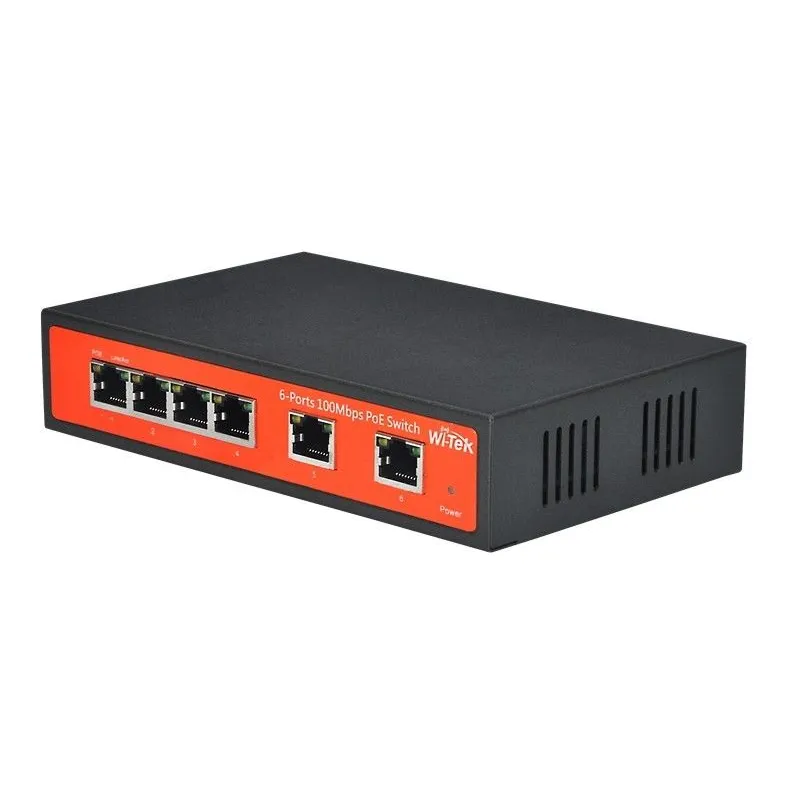

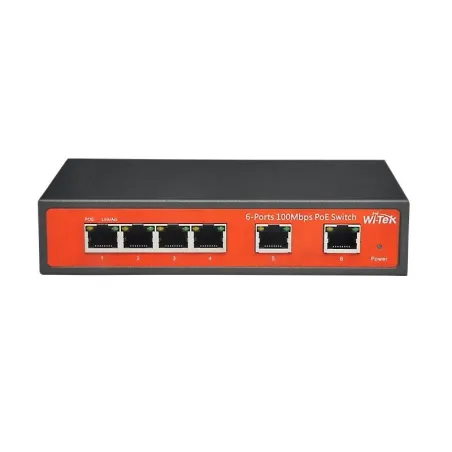

Wi-Tek WI-PS106 POE Switch 6 Port 100Mbps, 4 Port POE 802.3af/at 2 Port Uplink Max 65W

Overview

Wi-Tek WI-PS106 POE Switch 6 Port 10/100Mbps, จ่ายไฟ 4 Port POE มาตรฐาน 802.3af/at, 2 Port Uplink จ่ายไฟสูงสุด 65W

HARDWARE FEATURES

Interface

4 Port POE+ 2 UPLINK 10/100Mbps RJ45 Ports

Network Media

10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)

100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)

Fan Quantity

Fanless

Power Consumption

65W (max. with PoE device connected)

External Power Supply

DC 52V 1. 25A
AC 110~220V  50/60HZ

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port1- Port4
Power Supply: 60W

Exchange Capacity

1.2G

Mac Address Table

1K

Dimensions

-

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function
Mac Address Auto-Learning And Auto-AgingStore and forward
IEEE 802.3x  flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Contents

POE Switch
Electric Line

Environment

Working Temperature：0℃～40℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Hum idity：5%～90% RH non-condensing

รับประกัน

สินค้ารับประกัน 2 ปี
