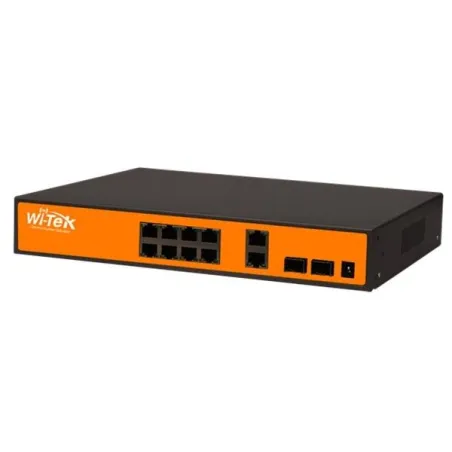

Wi-Tek WI-PS110F POE Switch 8 Port 100Mbps, 8 Port POE 802.3af/af, 2 Gigabit Combo SFP Port, 120W

Overview

Wi-Tek WI-PS109-24V  POE Switch 9 Port 10/100Mbps จ่ายไฟ 8 Port มาตรฐาน 802.3af/at ได้ 30W ต่อ Port, 1 Port Uplink จ่ายไฟสูงสุดรวม 120W

HARDWARE FEATURES

Interface

8  POE  Rj45 ports
2  Combo  ports

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m)

100Base -TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤100m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Fan Quantity

Fanless

Power Consumption

150W (max. with PoE device connected)

External Power Supply

AC 110~265V  50/60HZ

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port1- Port8
Power Supply: 150W

Exchange Capacity

5.6G

Mac Address Table

8K

Dimensions

Product Size：285 mm*215 mm*45mm（L*W*H）

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function
Mac Address Auto-Learning And Auto-AgingStore and forwardIEEE 802.3x  flow control forFull-duplex Mode
Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Contents

POE Switch
Electric Line
Guide Book/Warranty Card
2L Shape Mount+4 Shim

Environment

Working Temperature：0℃～40℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-ondensing

รับประกัน

สินค้ารับประกัน 2 ปี
