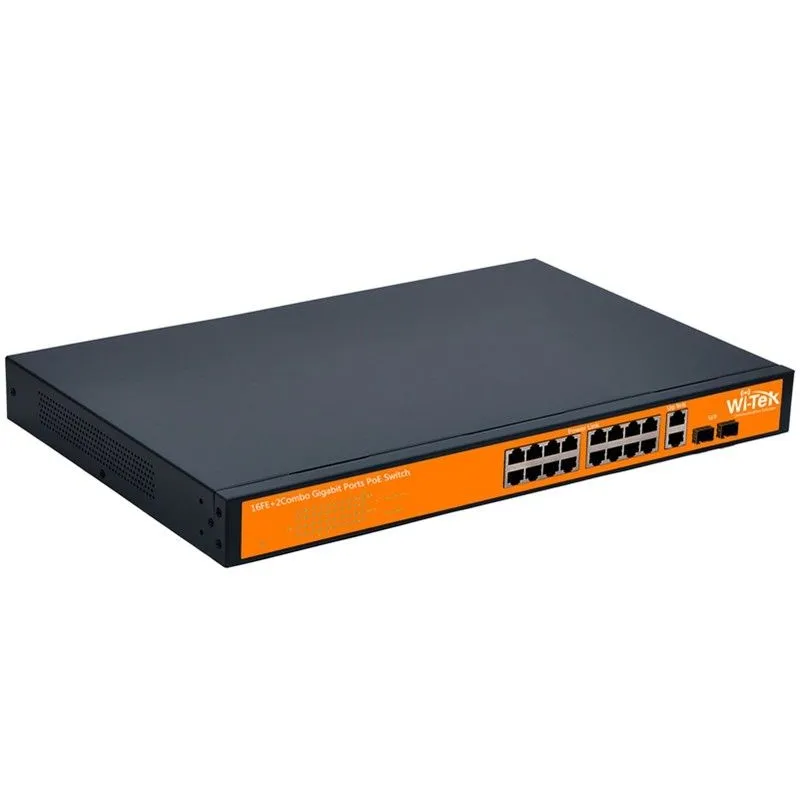

Wi-Tek WI-PS118G-24V Passive POE Switch 16 Port 100Mbps 2 Combo-Port Gigabit จ่ายไฟ 16 Port 24V 24W สูงสุด 250W

Overview

WI-PS118G-24V Passive POE Switch 16 Port 10/100Mbps, 2 Port Combo Gigabit, จ่ายไฟ 16 Port 24VDC 24W สูงสุดรวม 250W ใช้ร่วมกับอุปกรณ์ที่รองรับ POE แบบ Passive เช่น Ubiquiti, Mikrotik, Engenius, LigoWave

HARDWARE FEATURES

Interface

16 10/100M POE ports
2 1000M  ports
2 SFP ports

Network Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(?100m)

100Base -TX: Pair 2 Category 5(Cat5) and above UTP/STP(?100m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(?100m)

1000Base-SX:62.5?m/50?m MMF(2m~550m)

1000Base-L X:62.5?m/50?m MM(2m~550m) or 10?m SMF(2m~5000m)

Fan Quantity

Fanless

Power Consumption

250W (max. with PoE device connected)

External Power Supply

DC24V   10A

PoE Ports (RJ45)

PoE Ports: Port1- Port16
Power Supply: 250W

Exchange Capacity

7.2G

Mac Address Table

16K

Dimensions

440mm?180mm?44mm (L+W*H)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function
Mac Address Auto-Learning And Auto-AgingStore and forward
IEEE 802.3x  flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Contents

POE Switch
Electric Line
Guide Book/Warranty Card
2L Shape Mount+4 Shim

Environment

Working Temperature:
0?~40?

Storage temperature :
-40?~70?

Working Humidity :
10%~90% RH

non-condensing
Storage Humidity:
5%~90% RH non-condensing

รับประกัน

สินค้ารับประกัน 2 ปี
