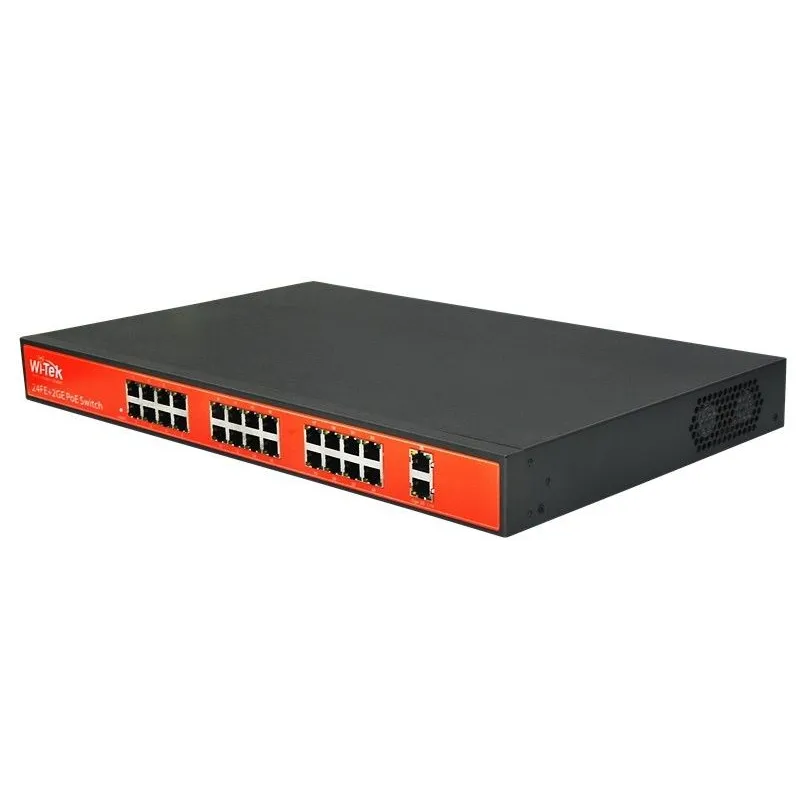

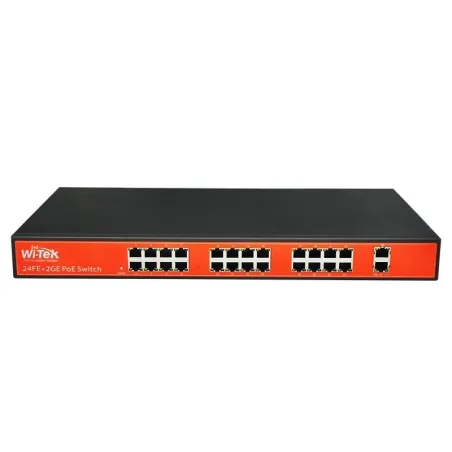

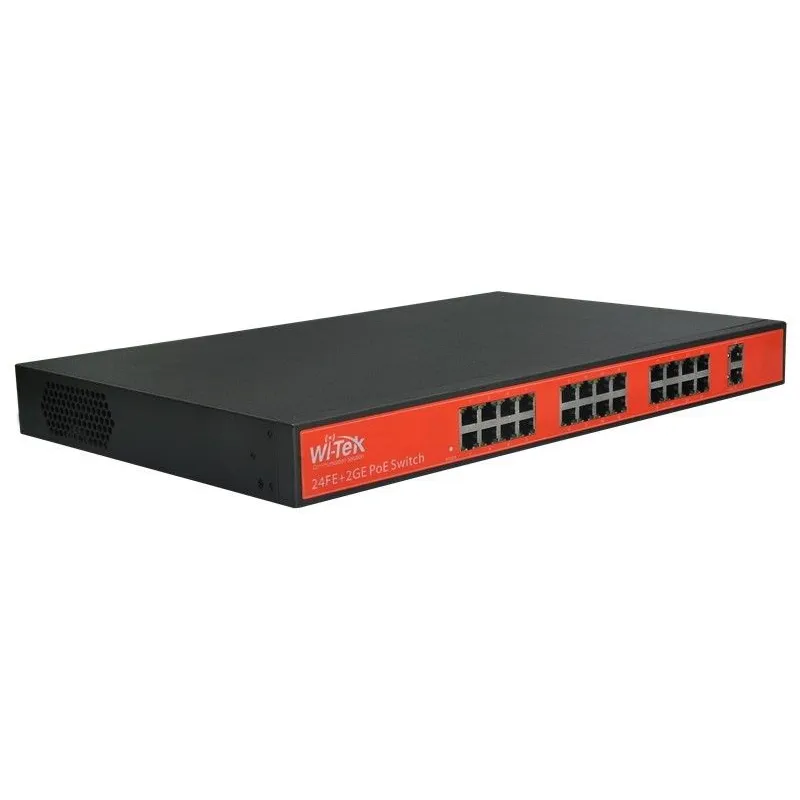

Wi-Tek WI-PS126G POE Switch 24 Port Fast, 2 Port Gigabit จ่ายไฟ 802.3at 24 Port 2 Port Uplink กำลังไฟ 300W

Overview

Wi-Tek WI-PS126G POE Switch 24 Port 100Mbps, 2 Port Gigabit จ่ายไฟ 802.3af/at 24 Port พร้อม 2 Port Uplink Gigabit กำลังไฟรวมสูงสุด 300W

HARDWARE FEATURES

Interface

24 Port 10/100Mbps  POE Ports
2 Ports Gigabit

Network Media

10Base -T:Pair 2 Category 3(Cat3) and above UTP/STP(≤100m)

100Base-TX: Pair 2 Category 5(Ca t5) and above UTP/STP(≤100m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤100m)

Fan Quantity

Fanless

Power Consumption

300W (max. with PoE device connected)

External Power Supply

AC 110~265V  50/60HZ

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port1- Port24
Power Supply: 300W

Exchange Capacity

8.8G

Mac Address Table

8K

Dimensions

440mm * 290mm * 45mm（L*W*H）

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function
Mac Address Auto-Learning And Auto-AgingStore and forwardIEEE 802.3x  flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Contents

POE Switch
Electric Line
Guide Book/Warranty Card
2L Shape Mount+4 Shim

Environment

Working Temperature：0℃～40℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing

รับประกัน

สินค้ารับประกัน 2 ปี
