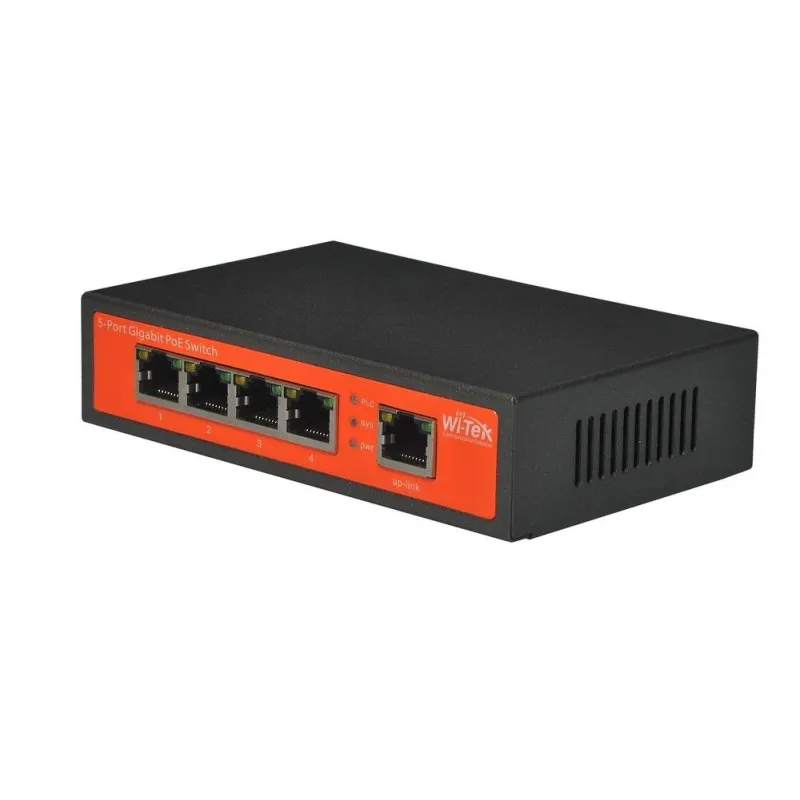

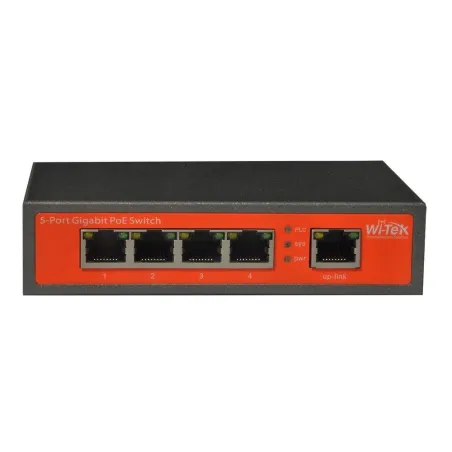

Wi-Tek WI-PS305G POE Switch 5 Port Gigabit, จ่ายไฟ POE 802.3af/at 4 Port Max 65W

Overview

Wi-Tek WI-PS305G POE Switch 5 Port Gigabit จ่ายไฟ POE มาตรฐาน 802.3af/at 4 Port, 1 Port Uplink Gigabit จ่ายไฟสูงสุด 65W (POE Budget)

HARDWARE FEATURES

Interface

Network Media

10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?100m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?100m)
1000BASE-TX: 6 Category and above UTP(?150m

Fan Quantity

Fanless

Power Consumption

65W (max. with PoE device connected)

External Power Supply

External Power Adapter(Output: DC52V / 1.25A)

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port1- Port4
Power Supply: 65W

Backbound Bandwidth

10G

Mac Address Table

2K

Dimensions

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function
Mac Address Auto-Learning And Auto-Aging
Store and forward
IEEE 802.3x  flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Contents

POE Switch
Electric Line
Guide Book
2L Shape Mount + 4 Shim

Environment

Working Temperature:0?~40?
Storage temperature :-40?~70?
Working Humidity :10%~90% RH non-condensing
Storage Hum idity:5%~90% RH non-condensing

รับประกัน

สินค้ารับประกัน 2 ปี
