    Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, POE 8 Port AF/AT 150W
    • Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, POE 8 Port AF/AT 150W
    • Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, POE 8 Port AF/AT 150W
    • Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, POE 8 Port AF/AT 150W

    Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, POE 8 Port AF/AT 150W

    Wi-Tek
    Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch, 2 Port SFP, จ่ายไฟ POE 8 Port มาตรฐาน af/at และ แบบ Passive 24VDC กำลังไฟ 150W
    ฿5,950.00
    ยังไม่ได้รวมภาษี
    จำนวน
    Out-of-Stock


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Wi-Tek WI-PS310GF-Alien Datasheet

    WI-PS310GF-Alien

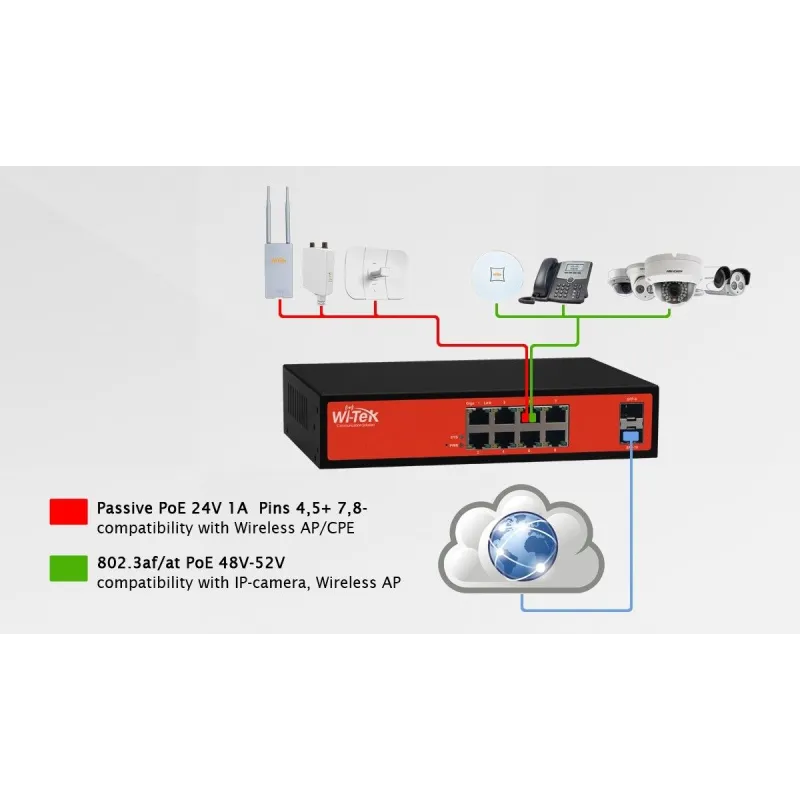

    • 8GE+2SFP Full Gigabit Switch with 8 PoE ?Supports PoE power up to 30W for each port Supports 48V PoE IEEE 802.3af/at and 24V Passive compliant PDs.
    • Support 24-48V PoE Output auto-detect, plug and play.
    • Support short-circuit protection and Over-current protection.
    • Internal power adapter supply 150W.
    • Suit for all PoE powered device like wireless AP,CPE, IP-camera,VOIP phone



    Overview

    Wi-Tek WI-PS310GF-Alien 8 Port Gigabit POE Switch พร้อม 2 Port SFP , จ่ายไฟ POE 8 Port มาตรฐาน 802.3af/at  กำลังไฟ 150W และ แบบ Passive 24VDC โดยจะตรวจสอบอุปกรณ์ภาครับให้อัตโนมัติ

    Interface

    8GE  POE  ports 2 SFP ports

    Network Media

    10Base-T: Pair 2 Category 3(Cat3) and above
    UTP/STP (?100m)
    100Base -TX: Pair 2 Category 5(Cat5) and above
    UTP/STP (?100m)
    1000Base-T: Pair 4 Category 5(Cat5e) and above
    UTP/STP (?100m)
    1000Base-SX:62.5?m/50?m MMF (2m~550m)
    1000Base-L X:62.5?m/50?m MM(2m~550m) or 10?m SMF(2m~5000m)

    Fan Quantity

    Fanless

    Power Consumption

    150W (max. with PoE device connected)

    Internal Power Supply

    AC 110~265V  50/60HZ

    PoE Ports (RJ45)

    Standard: 48V 802.3 af/at and 24V Passive compliant
    PoE PIN:4,5+ 7,8-
    PoE Ports: Port1- Port8
    Power Supply: 150W

    Exchange Capacity

    20G

    Mac Address Table

    8K

    Dimensions

    Product Size: 25mm* 105mm*32mm(L*W*H)

    Transmission Method

    Store-And-Forward

    Advanced Functions

    Priority Function
    Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x  flow control for Full-duplex Mode Backpressure for Half-duplex Mode

    Certification

    CE, FCC, RoHS

    Package Contents

    POE Switch Electric Line Guide Book/Warranty Card

    Environment

    Working Temperature: ?~40?
    Storage temperature : -40?~70?
    Working Humidity : 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing

    รับประกัน

    สินค้ารับประกัน 2 ปี

    รายละเอียดสินค้า

    ข้อมูลสินค้า

    Switches Layer
    UnManaged
    จำนวน Port Lan
    8 Port
    จำนวน Port จ่ายไฟ POE
    8 Port
    มาตรฐานจ่ายไฟ POE
    POE+ 802.3at (30W)
    จำนวน SFP Port 1Gigabit
    1 Port
