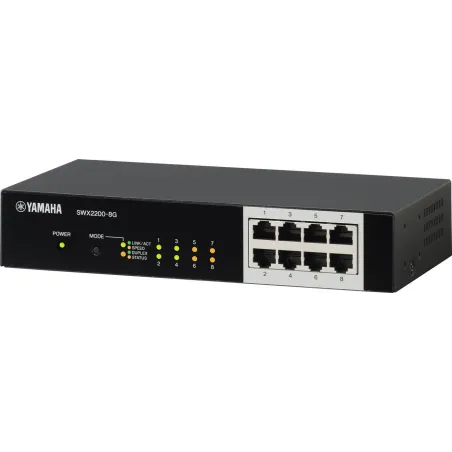

Yamaha SWX2200-8G L2-Managed Gigabit Switch 8 Port รองรับ VLAN

Overview

Yamaha SWX2200-8G L2-Managed Gigabit Switch 8 Port รองรับ 256 VLAN

Total port count

1000BASE-T

1000BASE-T PoE

Switching capacity (Gbps)

Switching forwarding rate (Mpps)

11.9

Packet buffer (byte)

256K

MAC address

8 K

Jumbo frame (byte)

9 K

Auto MDI/MDI-X

Yes

802.1p CoS

Yes

VLAN packet pass-through

Yes

Input voltage

100 - 240 V AC, 50/60 Hz

Power supply

External

Maximum power consumption (watt)

90

PoE power budget (watt)

75

Dimensions (WxDxH)(mm/in.)

210 x 104 x 27/ 8.27 x 4.09 x 1.06

Weight (kg/lb.)

0.54/1.19

Operating temperature

0?C to 50?C/32?F to 122?F

Storage temperature

-40?C to 70?C/-40?F to 158?F

Operating humidity

10% to 95%(non-condensing)

Storage humidity

10% to 95% (non-condensing)

MTBF (hr)

631,254

Heat dissipation (BTU/hr)

306.9

10/100/1000BASE-T ports

8

MDI / MDI-X auto-switching

ใช่

Transfer capability

11.9Mpps

Frame buffer

176KB

Tag VLAN (IEEE802.1Q)

มี

Flow Control

IEEE802.3x (full duplex), back pressure (half duplex)

Switch control function (? 1)

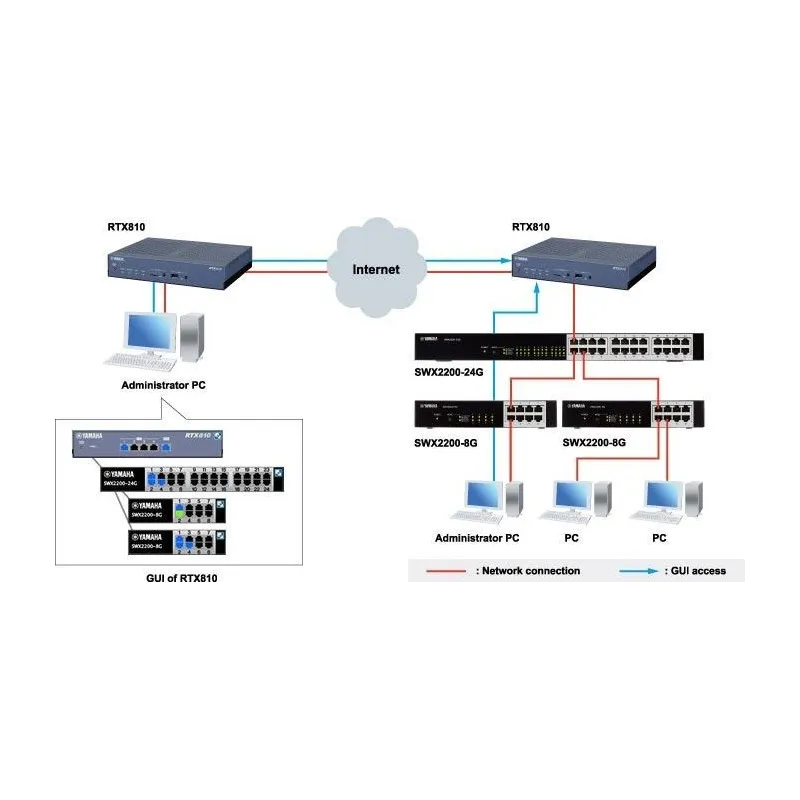

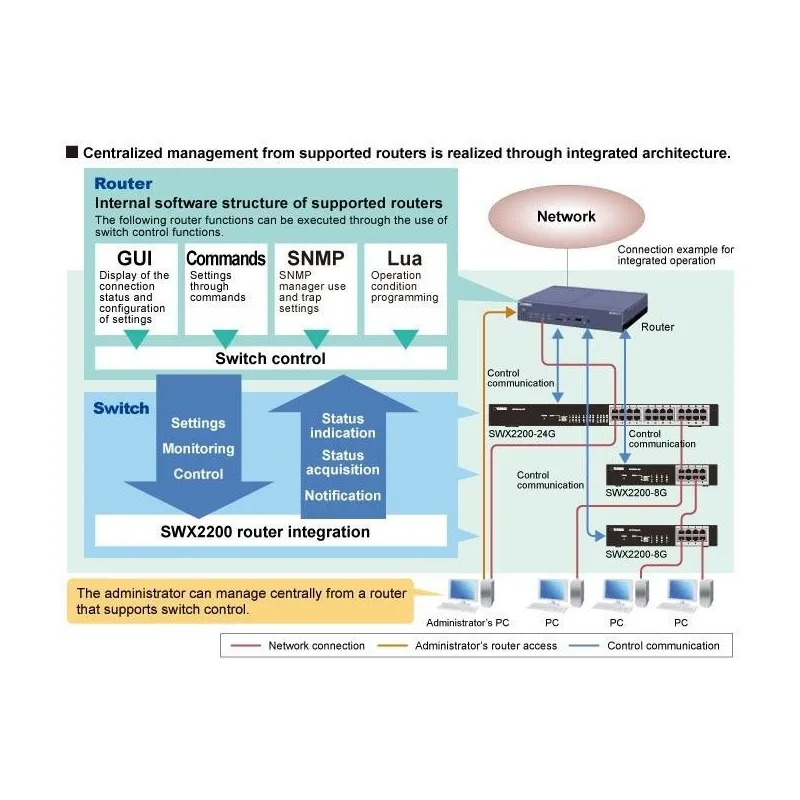

Management auto configured from the router, management control from the GUI / command of routers, network configuration display, VLAN batch configuration, host search, via SNMP on the router

Power

(Prevention bracket missing power) AC100V (50/60Hz), built-in power supply (no power switch), parallel 2-pole plug, power inlet

Chassis

Metal housing, fanless

รับประกัน

3 ปี
