Omada-Pro Access Point Datasheet
AP9650 Access Point Product Specification |
|
Overview |

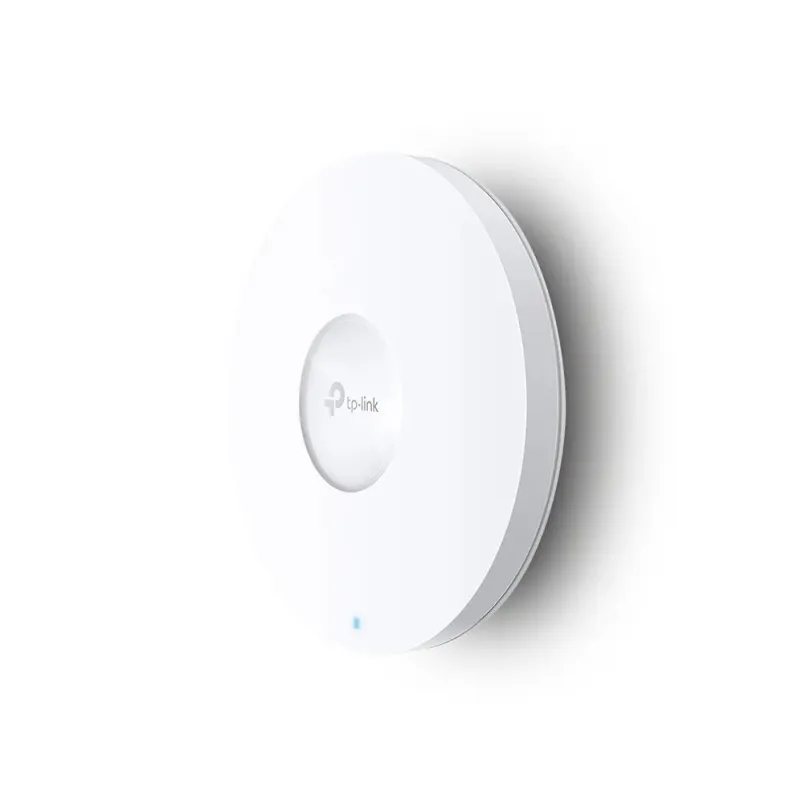

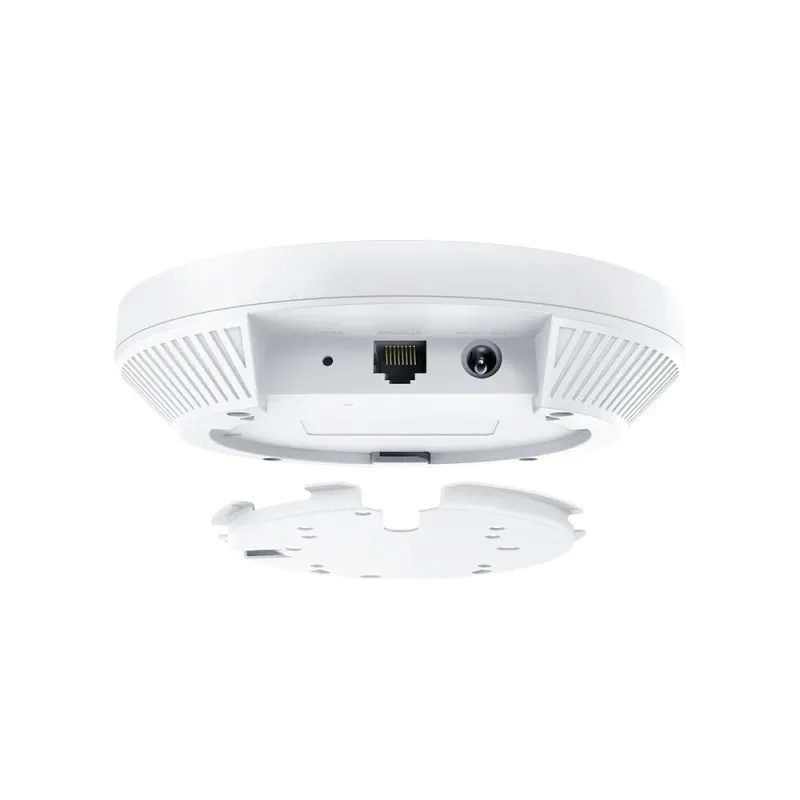

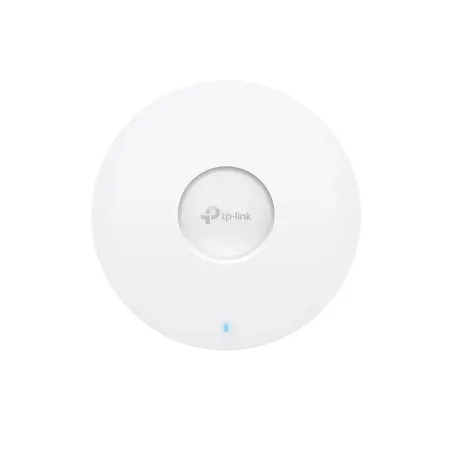

TP-LINK AP9650 AX3000 Ceiling Mount WiFi 6 Access Point, Dual-Band 2.4/5GHz, Port LAN Gigabit, กระจายรอบทิศทาง บริหารจัดการผ่าน Omada Controller |
HARDWARE FEATURES |
|
Interface | 1× Gigabit Ethernet Port |
Button | Reset |
Power Supply | • EU: 48V Passive PoE or 802.3at PoE or 12V/1A DC • US: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC Note: PoE Adapter is Not Included |
Power Consumption | • EU: 12.7 W(For PoE); 11.43 W(For DC) • US: 13.98 W(For PoE); 12.58 W(For DC) |
Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33 mm) |
Antenna Type | • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
WIRELESS FEATURES |
|
Coverage | 140㎡(1500 ft²)§ |
Concurrent Clients | 250+** |
Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Rate limit(based on SSID/AP/Client) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming △ • Omada Mesh△ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics • Radius accounting • MAC authentication • Static IP/Dynamic IP |
Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • Maximum number of MAC Filter: 4000 • SSID VLAN • WIDS/WIPS△ • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 &Band 2, EIRP) <30 dBm(5 GHz, Band3, EIRP) |
MANAGEMENT |
|
Omada App | Yes |
Centralized Management | • Omada Pro Software Controller • Omada Pro Cloud-Based Controller |
Cloud Access | Yes. Require the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
OTHERS |
|
Certification | CE, FCC, RoHS |
Package Contents | • AP9650 • Ceiling/Wall Mounting Kits • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
รับประกัน |
Limited lifetime |
|
|
