AP9670 Access Point Product Specification |

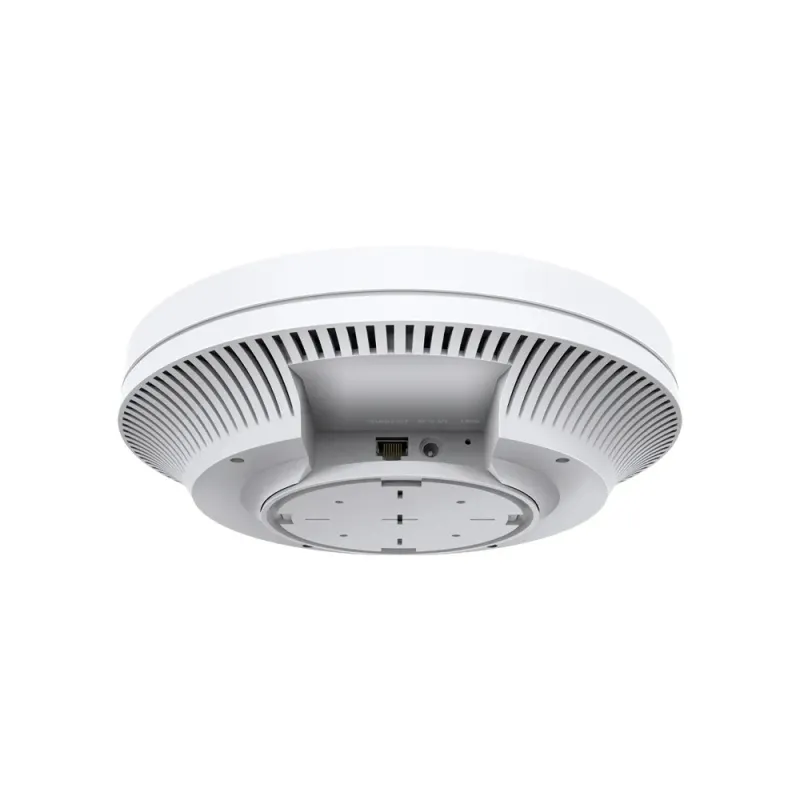

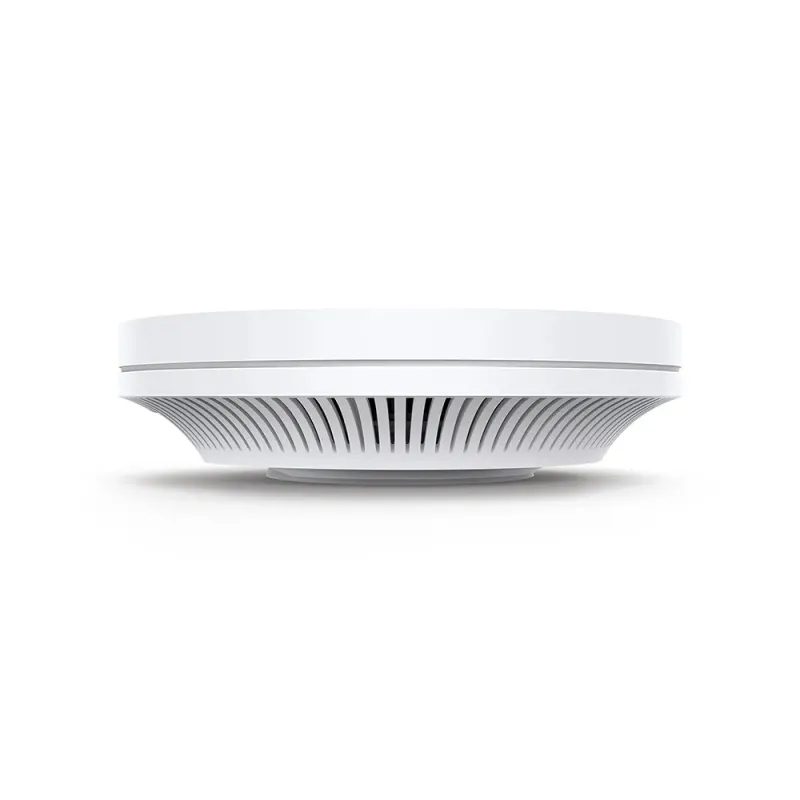

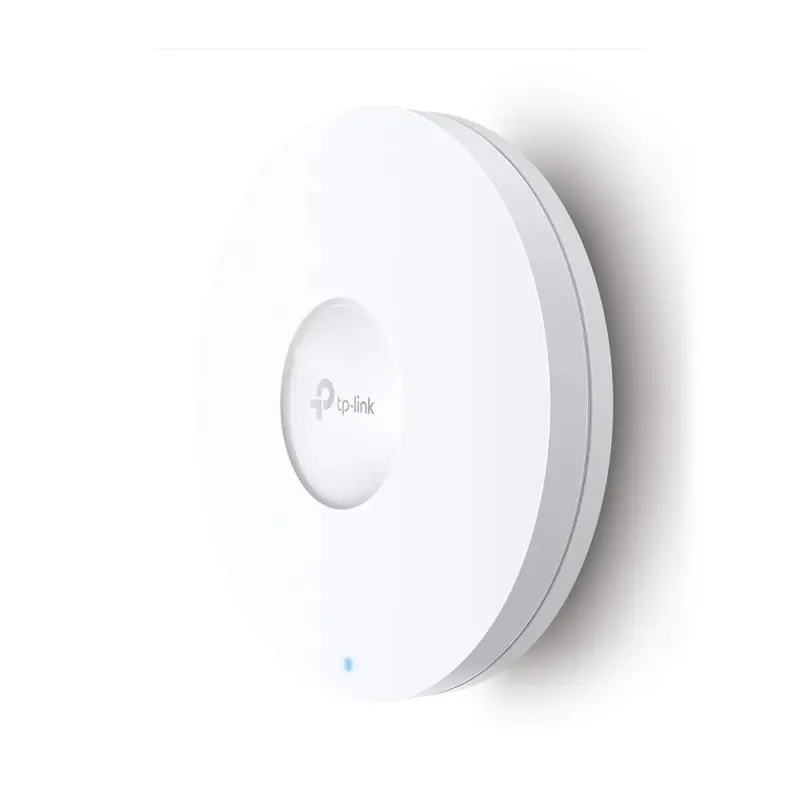

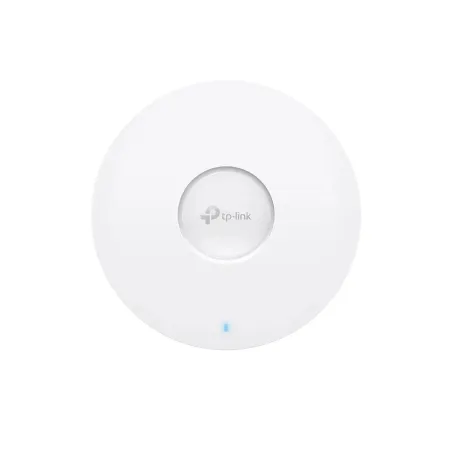

Overview | TP-LINK AP9670 AX5400 Ceiling Mount WiFi 6 Access Point 160MHz, Dual-Band 2.4/5GHz, Port LAN 2.5Gbps, กระจายรอบทิศทาง บริหารจัดการผ่าน Omada Controller |
HARDWARE FEATURES |
| Interface | 1× 2.5Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V / 1.5A DC |
| Power Consumption | • EU: 18.05 W(For PoE); 16.39 W(For DC)
• US: 19.8 W(For PoE); 17.8 W(For DC) |
| Dimensions ( W x D x H ) | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
| Antenna Type | Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES |
| Coverage | 140㎡(1500 ft²)§ |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 4804 Mbps
• 2.4 GHz: 574 Mbps |
| Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming △
• Omada Mesh△
• Beamforming
• MU-MIMO
• Rate Limit(Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• MAC Authentication
• HE160 (160 MHz Bandwidth)‡
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4000
• Wireless Isolation Between Clients
• SSID VLAN
• WIDS/WIPS△
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP) |
MANAGEMENT |
| Omada App | Yes |
| Centralized Management | • Omada Pro Software Controller
• Omada Pro Cloud-Based Controller |
| Cloud Access | Yes. Require the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Pro Cloud-Based Controller. |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | • AP9670
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
รับประกัน | Limited lifetime |
|
|
