AP9778 Access Point Product Specification |

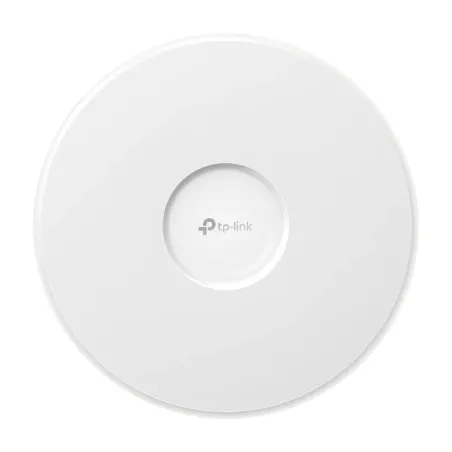

Overview | TP-LINK AP9778 BE19000 Ceiling Mount Wi-Fi 7 Access Point 320MHz MLO, Tri-Band 2.4/5/6GHz, Port LAN 10Gbps, รองรับ 1500 Clients กระจายรอบทิศทาง บริหารจัดการผ่าน Omada Controller |
HARDWARE FEATURES |

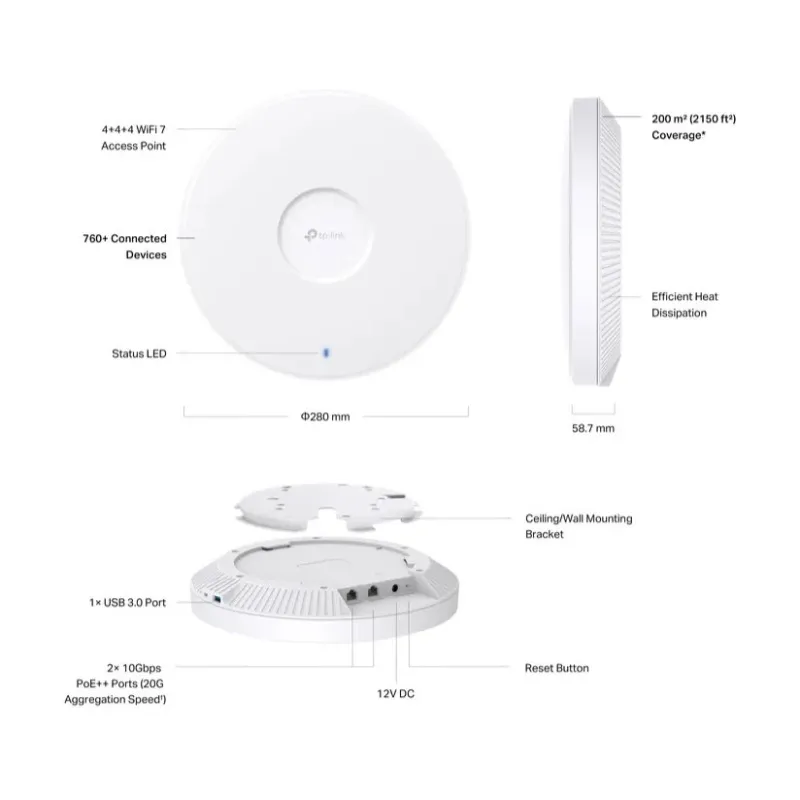

| Interface | 2x 10Gbps Ethernet Ports (20G Aggregation Speed†) |
| Button | Reset |
| Power Supply | • 802.3bt (dual PoE inputs for hot backup)
• 12V/4.5A DC |
| Power Consumption | 44 W (for PoE); 39W (for DC) |

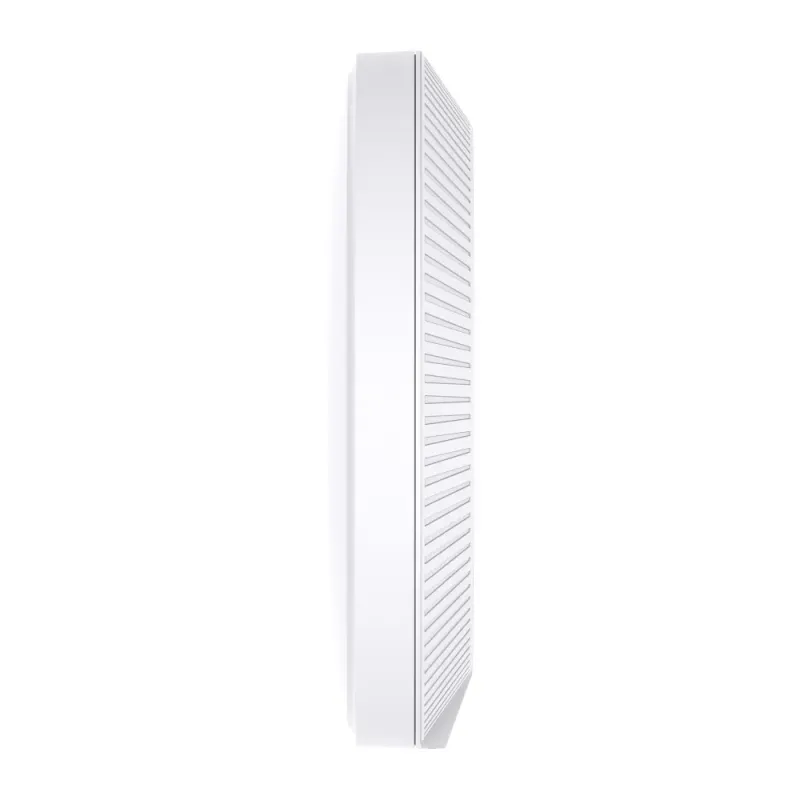

| Dimensions ( W x D x H ) | 11 x 11 x 2.3 in (280 x 280 x 58.7 mm) |
| Antenna Type | Smart Antennas
• 2.4 GHz: 4× 4.0 dBi
• 5 GH: 4× 5.5 dBi
• 6 GHz: 4× 5.0 dBi |
| Bluetooth | V5.2 |

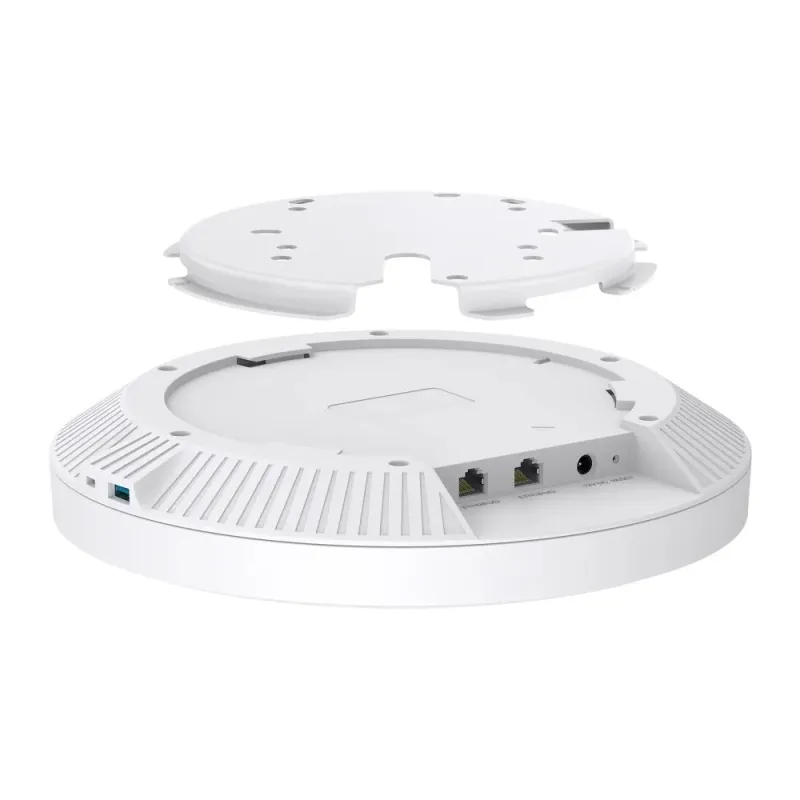

| Mounting | Ceiling / Wall mouting (Kits included) |
WIRELESS FEATURES |
| Coverage | 200㎡(2150ft²)§ |
| Concurrent Clients | 760+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | • 2.4 GHz
• 5 GHz
• 6 GHz |
| Signal Rate | 1376 Mbps (2.4 GHz) + 5760 Mbps (5 GHz) + 11520 Mbps (6 GHz) |
| Wireless Functions | • MLO‡
• 4K-QAM‡
• MIMO(2.4GHz: 4*4 SU-MIMO/MU-MIMO DL/UL; 5GHz: 4*4 SU-MIMO/MU-MIMO DL/UL; 6GHz: 4*4 SU-MIMO/MU-MIMO DL/UL)
• HE320 (320 MHz Bandwidth)‡
• Mesh△
• Seamless Roaming△
• Rate Limit: Based on SSID/Client
• BSS Coloring
• UL/DL OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP |
| Wireless Security | • PPSK△
• VLAN
• WIDS/WIPS△
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz 1&band 2, EIRP)
<30 dBm(5 GHz band 3, EIRP)
<23 dBm(6 GHz, EIRP) |
| Multi-SSID | 24 (8 on each band) |
MANAGEMENT |
| SNMP | v1, v2c, v3 |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | • AP9778
• Installation Guide
• Ceiling/Wall Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing; |
รับประกัน | Limited lifetime |
|
|
