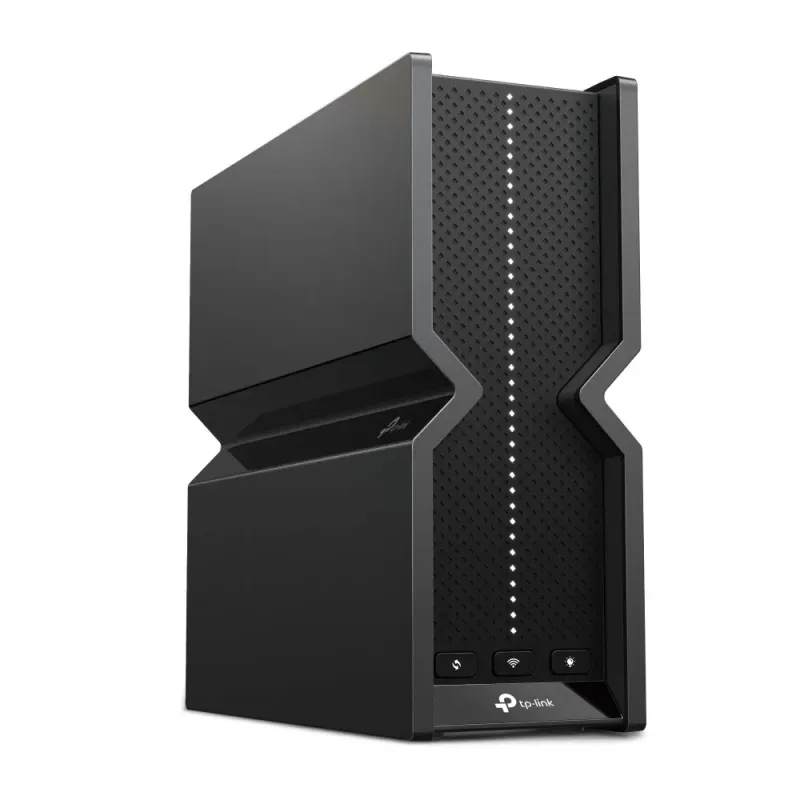

TP-Link Archer BE550 BE9300 Tri-Band 2.4/5/6GHz Wi-Fi 7 Router 320 MHz พร้อม 4 Port Lan 2.5Gigabit เสาอากาศ Build-In x 6 ต้น Beamforming, VPN PPTP, L2TP, WireGuard
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
TP-Link Archer BE550 Datasheet
TP-Link Archer BE550 User Guide
TP-Link Archer BE550(US) Quick Installation Guide
คู่มือการ Config TP-Link Wireless Router ใน Mode Access Point
Archer BE550 Product Specification | |
Overview | TP-Link Archer BE550 BE9300 Tri-Band 2.4/5/6GHz Wi-Fi 7 Router 320 MHz พร้อม 4 Port Lan 2.5Gigabit เสาอากาศ Build-In x 6 ต้น Beamforming, VPN PPTP, L2TP, WireGuard |
WIRELESS | |
| WiFi Speeds | BE9300 • 6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 574 Mbps (802.11ax) |

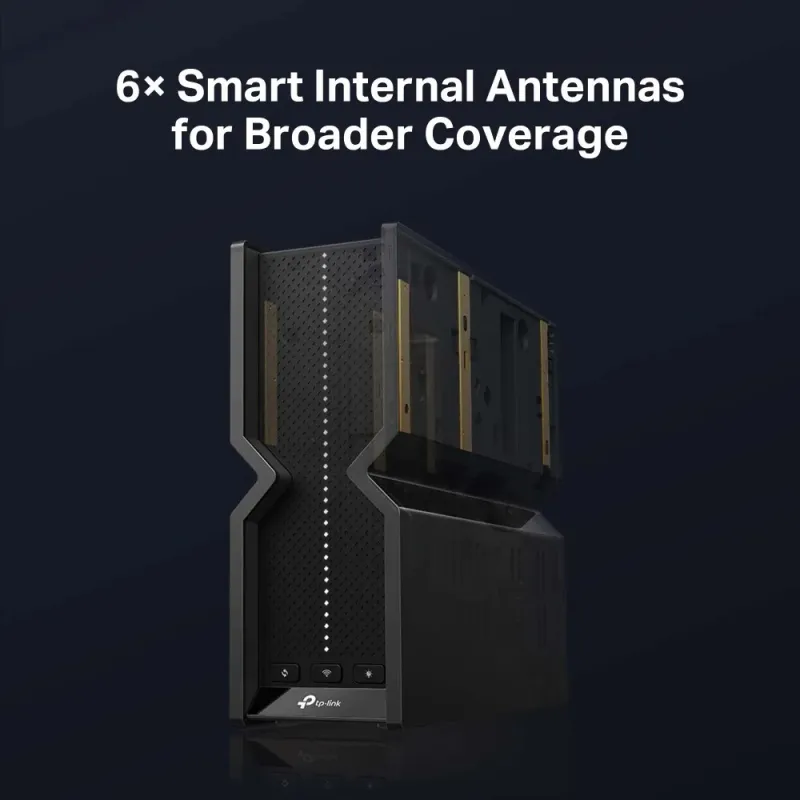

| WiFi Range | 4 Bedroom Houses 6× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High Tri-Band Allocate devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| Advanced Features | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
SECURITY | |
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
| Processor | High-Performance CPU |

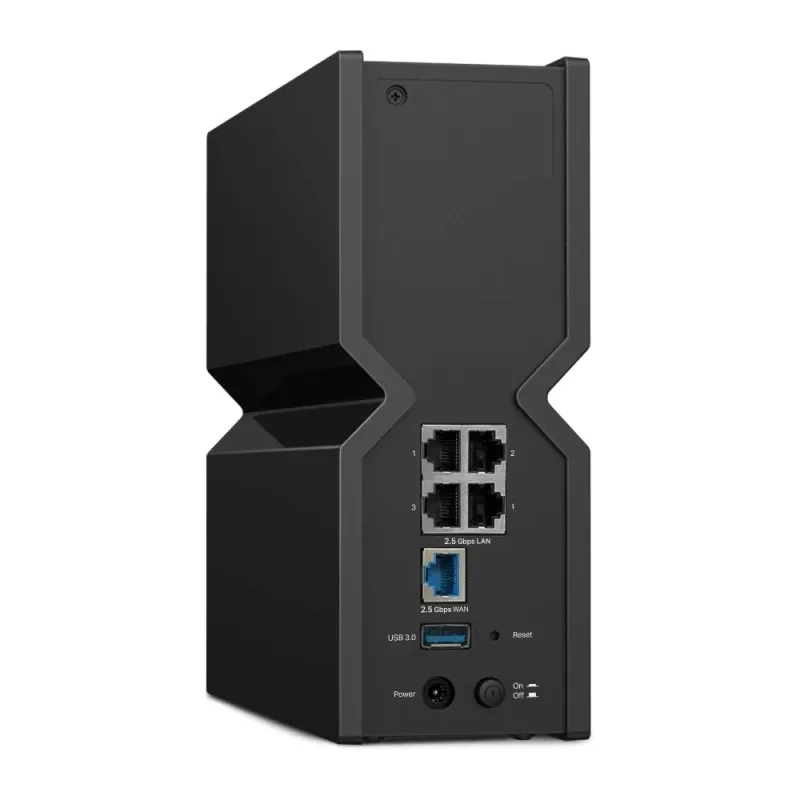

| Ethernet Ports | • 1× 2.5 Gbps WAN • 4× 2.5 Gbps LAN |
| USB Support | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
| Power | 12 V 3.3 A |
SOFTWARE | |
| Protocols | • IPv4 • IPv6 |
| Service Kit | HomeShield |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management Features | • Tether App • Webpage |
OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
PHYSICAL | |
| Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |
| Package Content | • Wi-Fi 7 Router Archer BE550 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
รับประกัน | ประกันศูนย์ TP-Link Thailand Life Time |
