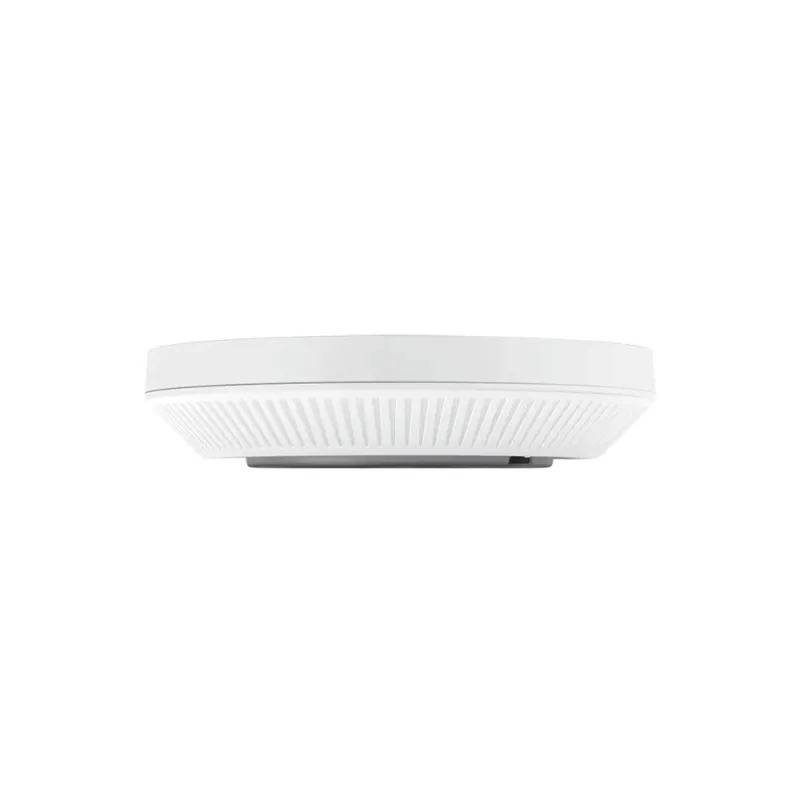

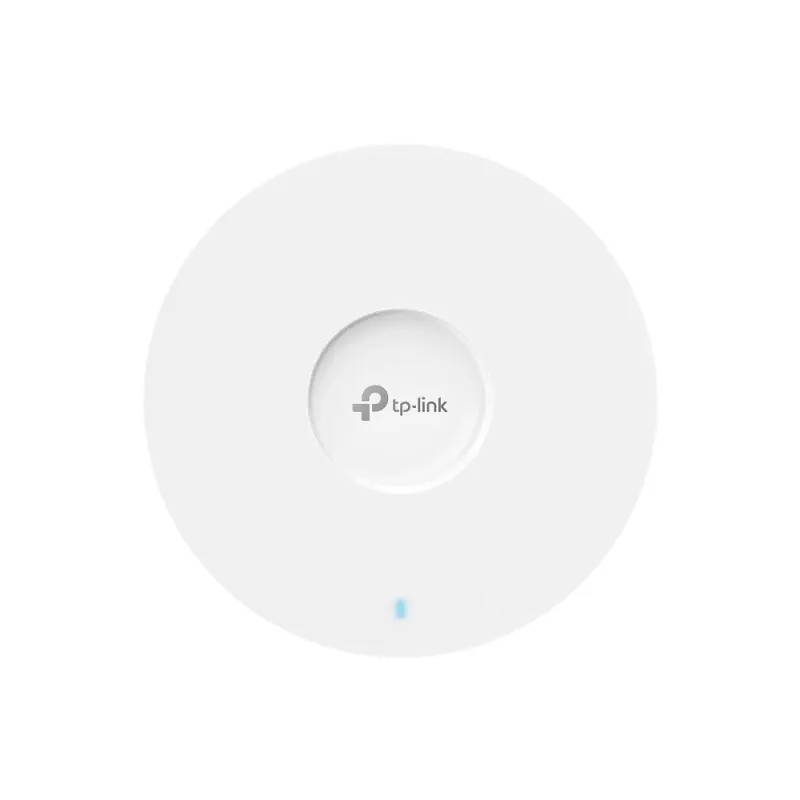

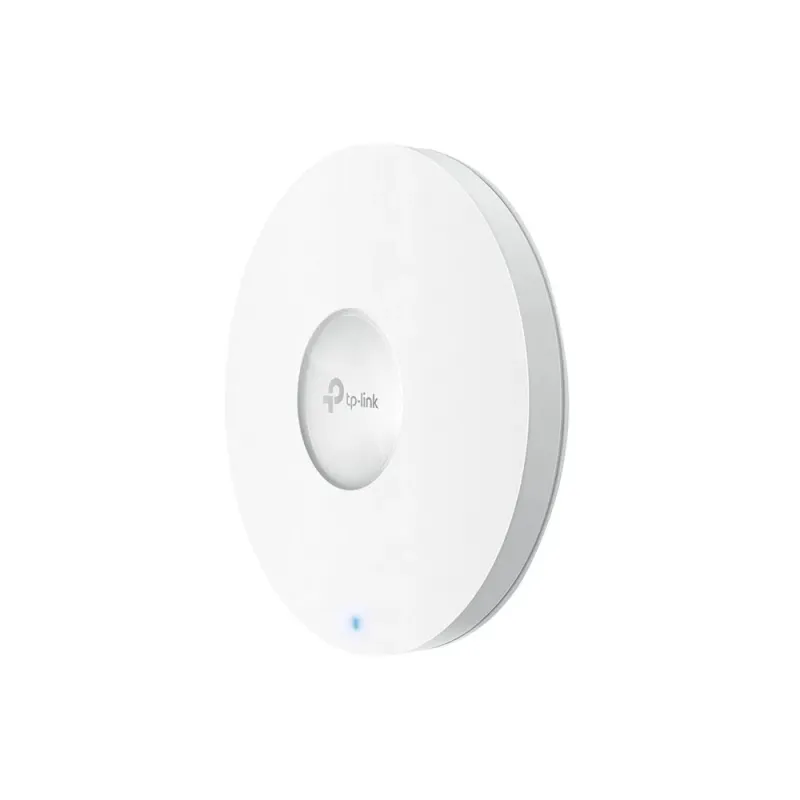

TP-Link EAP653 UR
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
Product Specification |
Overview | TP-LINK EAP653 UR Wireless AP Ultra-Speed WIFI6 AX3000 160MHz, เสาภายใน 2x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software รองรับ Omada SDN Controller Software |
HARDWARE FEATURES |
| Interface | 1× Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE
• 12V DC / 1.5 A (Power Adapter IS NOT included)
• 48V Passive PoE
• Support bluetooth 5.2 |
| Max. Power Consumption | • EU: 14.2 W
• US: 15.5 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 3× 5 dBi |

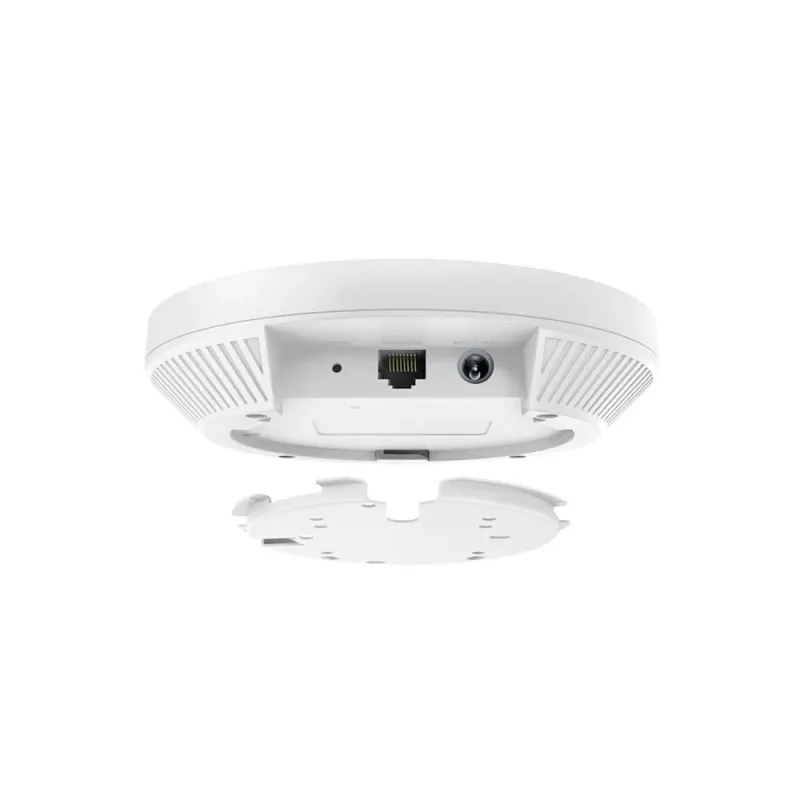

| Mounting | • Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting |
WIRELESS FEATURES |
| Coverage | 185 ㎡ (2000 ft²)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps†
• 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r)§
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<29 dBm(5 GHz, Band3, EIRP)
• FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz) |
Management Features |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Content | • EAP653 UR
• Ceiling/Wall Mounting Kit
• Installation Guide
Note: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
รับประกัน | Limited lifetime |
