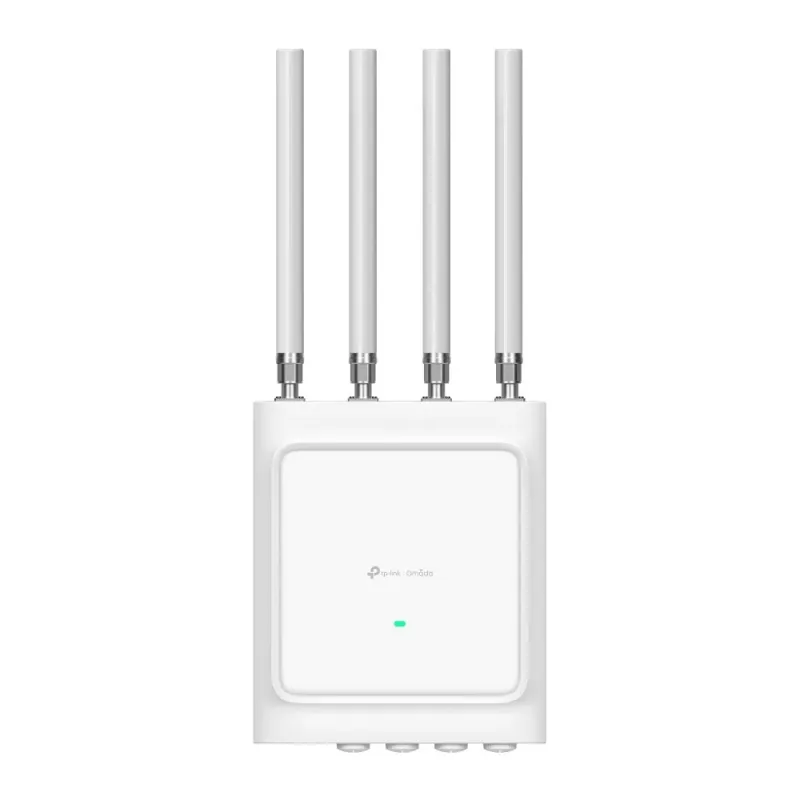

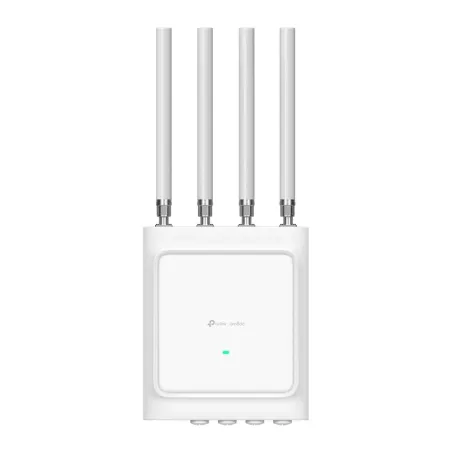

EAP668-Outdoor HD TP-Link Wireless Access Point WIFI6 AX3600 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, กระจายสัญญาณรอบทิศทาง, กันน้ำกันฝุ่นมาตรฐาน IP68, รองรับ Omada SDN Controller Software
สินค้างาน Project สำหรับ SI, ผู้รับเหมา สอบถามราคาส่วนลดพิเศษได้เลยครับ
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
Omada SDN Controller Software 4.1.5Windows/Linux_User Guide
Omada Access Points_User Guide
EAP668-Outdoor-HD Product Specification | |
Overview | EAP668-Outdoor HD TP-Link Wireless Access Point WIFI6 AX3600 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, กระจายสัญญาณรอบทิศทาง, กันน้ำกันฝุ่นมาตรฐาน IP68, รองรับ Omada SDN Controller Software |
HARDWARE FEATURES | |

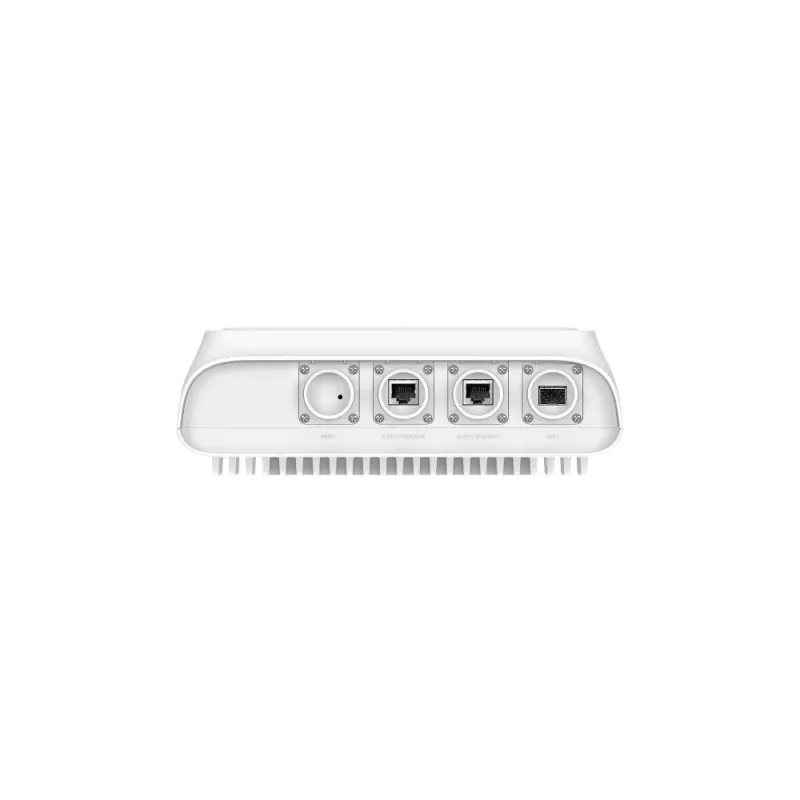

| Interface | 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+ |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out) • US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled) • US: 25.4W (PSE disabled) Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input. |

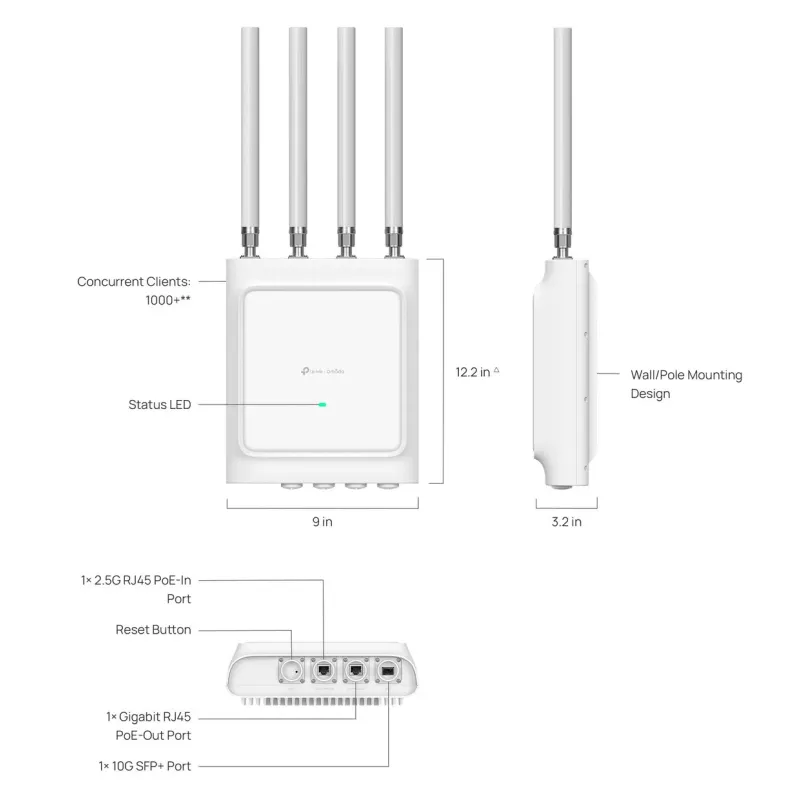

| Dimensions ( W x D x H ) | 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit) |
| Antenna | 4× External Dual-Band Omni Antennas • 2.4 GHz: 6.0 dBi • 5 GHz: 6.0 dBi |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment • Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment • Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment (Note: Optional bracket accessories need to be purchased separately) |
WIRELESS FEATURES | |
| Concurrent Clients | 1,000+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment (Adjust transmit Power on dBm) • Transmit Power Control • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (4 × 4 MU-MIMO DL/UL) • UL/DL OFDMA • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3) |
Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller • Omada App |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • EAP668-Outdoor HD • 4× External Dual-Band Omni Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
รับประกัน | Limited lifetime |
