TP-Link EAP653
AX6000 Ceiling Mount WiFi 6 Access Point

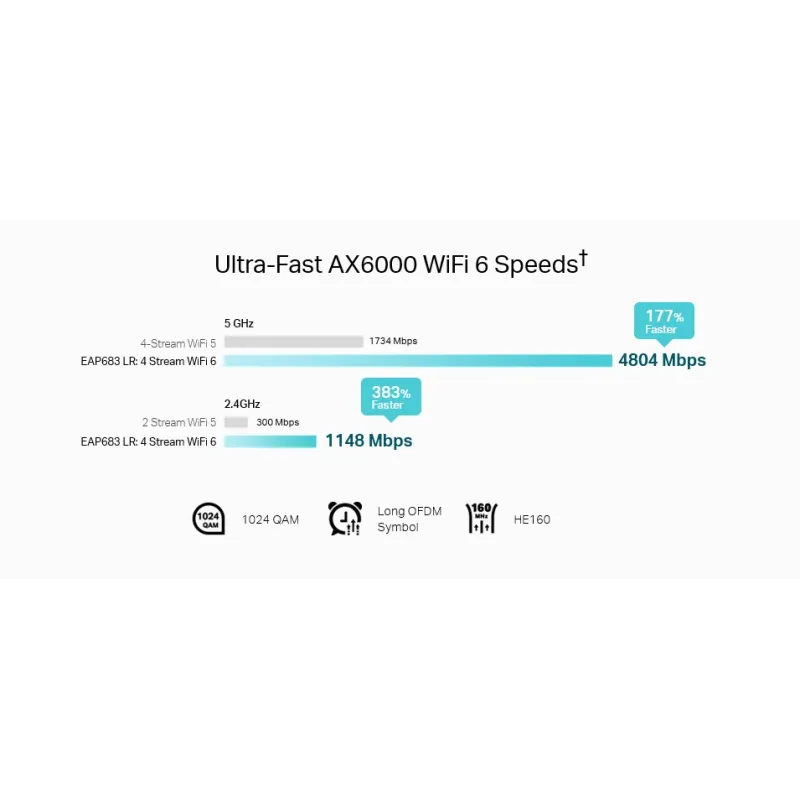

- Blazing-Fast WiFi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

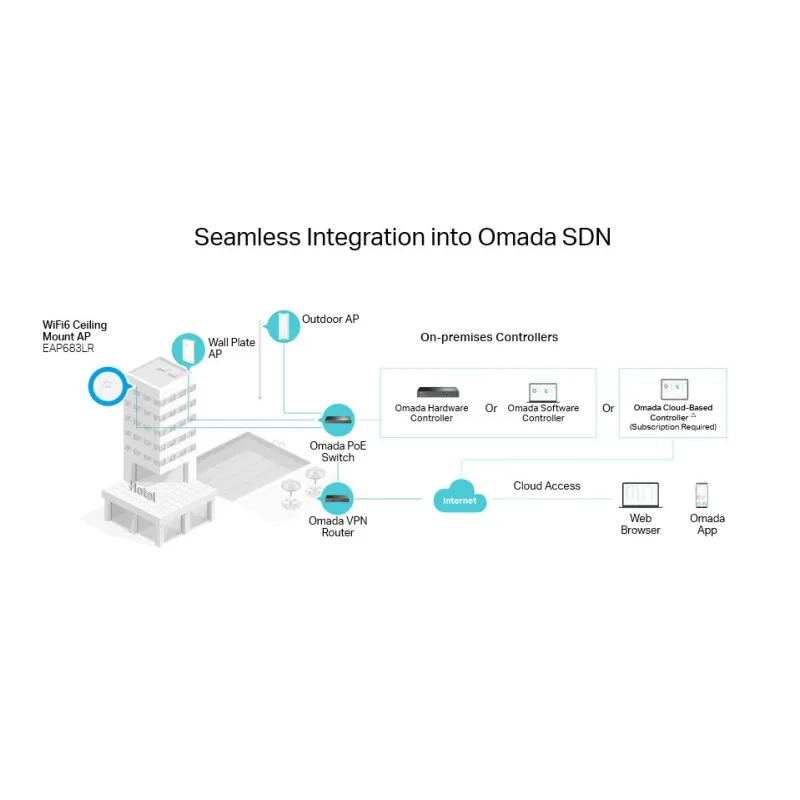

- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
TP-Link EAP683 LR Product Specification |
Overview | TP-LINK EAP683 LR Wireless Access Point WIFI6 AX6000 160MHz, เสาภายใน 2x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software |
HARDWARE FEATURES |
Interface | 1× 2.5 Gigabit PoE+ Port |
Button | Reset |
Power Supply | • 802.3at PoE
• 12 V / 2 A DC
Note：Power adapter is not included. |
Power Consumption | • EU: 20.43W
• US: 23.69W
|
Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
Antenna Type | Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi |

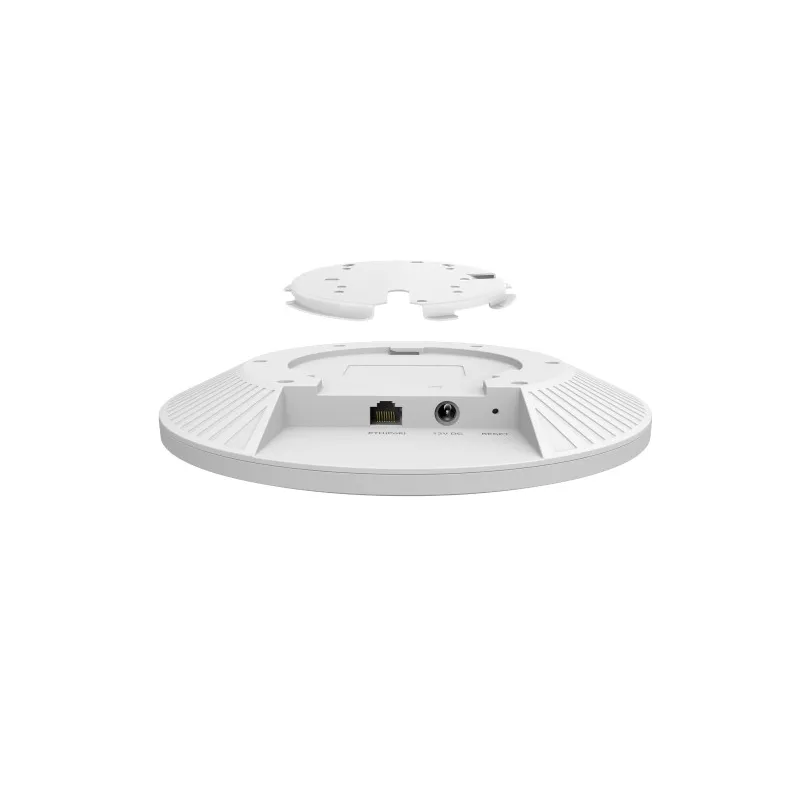

Mounting | Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES |
Concurrent Clients | 512** |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
|
Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
Wireless Security | • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
|
MANAGEMENT |
Omada App | Yes |
Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
OTHERS |
Certification | CE,FCC,RoHS |
Package Contents | • EAP683 LR
• Ceiling/Wall Mounting Kits
• Installation Guide
|
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
รับประกัน | Limited lifetime |
|
|
