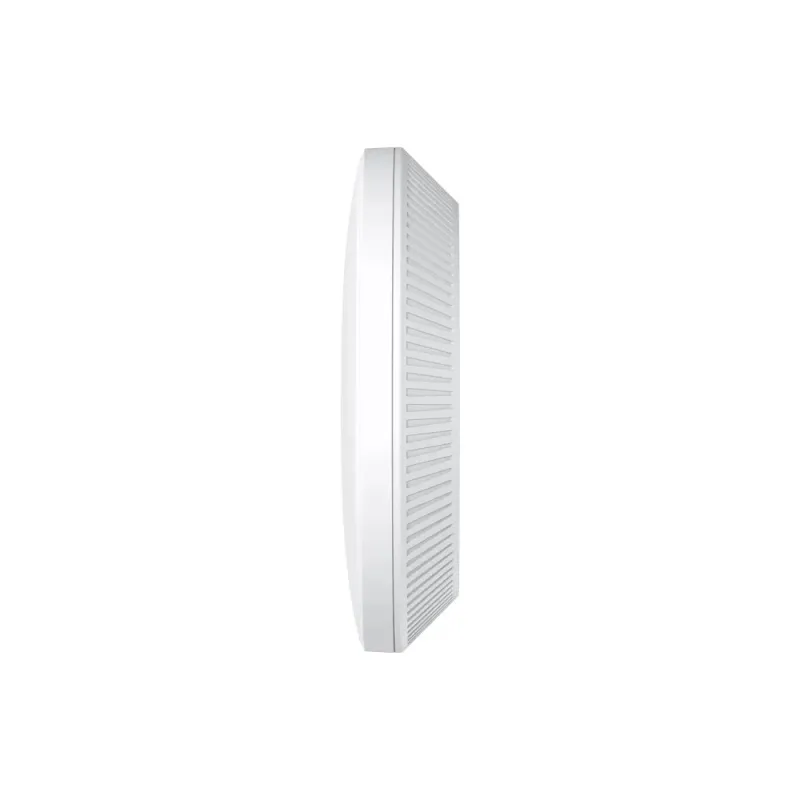

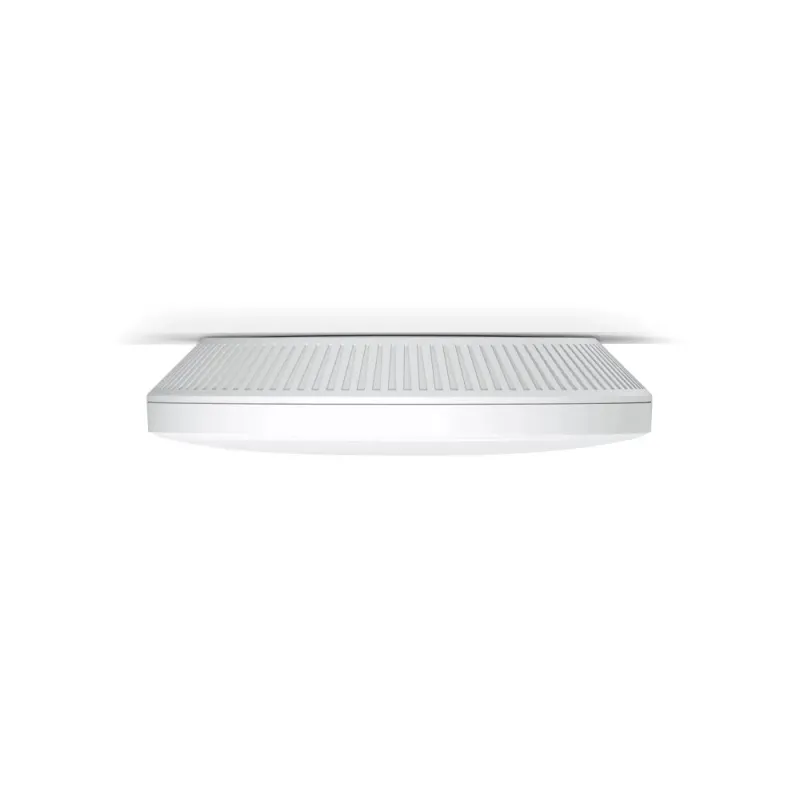

EAP720 TP-LINK BE5000 Ceiling Mount Wi-Fi 7 Access Point

Name: EAP720 TP-LINK BE5000 Ceiling Mount Wi-Fi 7 Access Point
Brand: TP-Link
SKU: 4085
Price: 4170 THB
Availability: InStock

แบรนด์ TP-Link

TP-LINK EAP720 Wireless Access Point WIFI7 BE5000 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, Bandwidth 240MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller

Support / ติดตั้งด้วยทีมงาน Certificate

สอบถามข้อมูลสินค้าเพิ่มเติม

LINE ID: @sysnet โทร: 02 102 4284

Click ต้องการใบเสนอราคา

Rating:

(0)

รายละเอียด
รายละเอียดสินค้า

รายละเอียด

Omada SDN Controller Software 4.1.5Windows/Linux_User Guide

Omada Access Points_User Guide

TP-Link EAP720 Datasheet

TP-Link EAP720

BE5000 Ceiling Mount Wi-Fi 7 Access Point

Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
1× 2.5G Port: Ensures fast connectivity throughout the network.
Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.

EAP720 Product Specification
Overview	TP-LINK EAP720 Wireless Access Point WIFI7 BE5000 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, Bandwidth 240MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller
HARDWARE FEATURES
Interface	1× 2.5G Ethernet Port

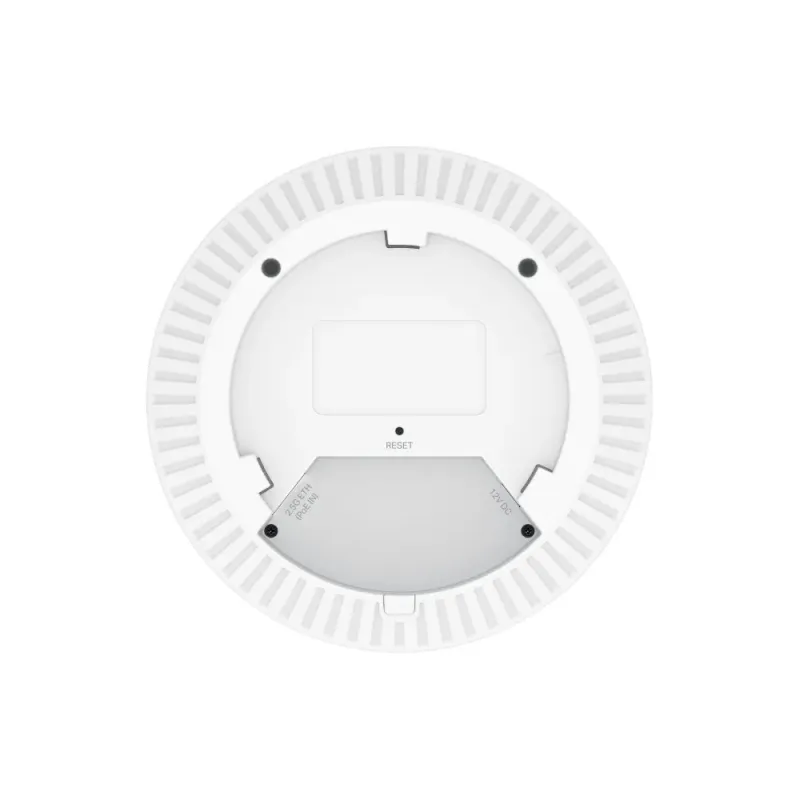

Button	Reset
Power Supply	802.3at PoE or 12V/1.5A DC (Power Adapter Included)
Max. Power Consumption	• 17.83 W (For PoE); • 13.99 W (For DC)
Dimensions ( W x D x H )	6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi

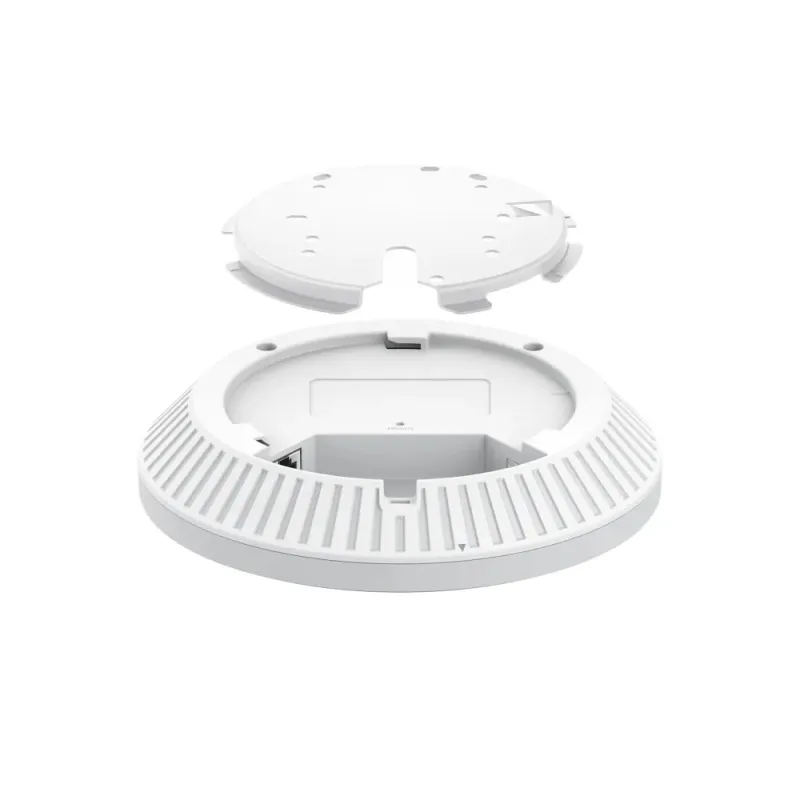

Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)
WIRELESS FEATURES
Coverage	1500 ft² (140㎡)^*
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming • 240 MHz Bandwidth^‡ • Mesh^△ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3)
Management Features
Omada App	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
รับประกัน	Limited lifetime
