    EAP723 TP-LINK BE5000 Ceiling Mount Wi-Fi 7 Access Point

    TP-Link

    TP-LINK EAP723 Wireless Access Point WIFI7 BE5000 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, Bandwidth 240MHz  กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

    ฿5,930.00
    ยังไม่ได้รวมภาษี
    จำนวน
    50 รายการ


    Support / ติดตั้งด้วยทีมงาน
    Certificate


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Omada SDN Controller Software 4.1.5Windows/Linux_User Guide

    Omada Access Points_User Guide



    TP-Link EAP723

    BE5000 Ceiling Mount Wi-Fi 7 Access Point

    • BE5000 Dual-Band Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
    • 1× 2.5G port unlocks the full potential of Wi-Fi 7.
    • 240 MHz bandwidth enables many more simultaneous transmissions.
    • Multi-RUs ensure the high performance of your network.
    • Advanced Functions: Centralized management, Mesh, and Seamless Roaming.



    EAP723 Product Specification

    Overview

    TP-LINK EAP723 Wireless Access Point WIFI7 BE5000 Dual-Band 2.4/5GHz, Port Lan 2.5Gbps, Bandwidth 240MHz  กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

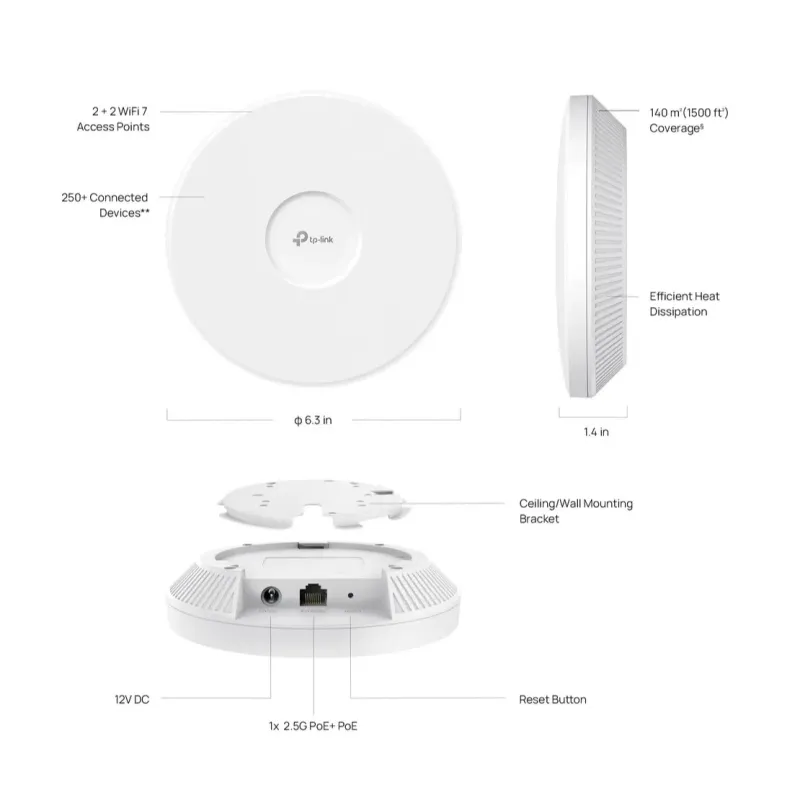

    HARDWARE FEATURES

    Interface1× 2.5G Ethernet Port
    ButtonReset
    Power Supply802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
    Power Consumption• 19.5 W (For PoE);
    • 16.8 W (For DC)
    Dimensions ( W x D x H )6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
    Antenna Type• 2.4 GHz: 2× 4.0 dBi
    • 5 GHz: 2× 5.0 dBi
    MountingCeiling / Wall Mounting (Kits Included)

    WIRELESS FEATURES

    Coverage140㎡(1500 ft²)***
    Wireless Client Capacity250+**
    Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/be
    Frequency2.4 GHz and 5 GHz
    Signal Rate688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
    Wireless Functions• 4K-QAM
    • Seamless Roaming
    • MU-MIMO
    • EHT240
    • Mesh
    • OFDMA
    • Load Balance
    • Band Steering
    • Beamforming
    • Airtime Fairness
    • Multiple SSIDS:16(8 on each band)
    • Wireless Schedule
    • Reboot Schedule
    • QoS(WMM)
    • Rate Limit
    • Static IP/Dynamic IP
    • RADIUS Accounting
    • MAC Authentication
    Wireless Security• Captive Portal Authentication
    • Access Control
    • Maximum number of MAC Filter: 4,000
    • Wireless Isolation Between Clients
    • VLAN
    • Rogue AP Detection
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    Transmission Power< 25 dBm (2.4GHz)
    < 25 dBm (5GHz, band 1&band 4)
    < 24 dBm (5GHz, band 2&band 3)

    MANAGEMENT

    Omada AppYes
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller
    • Omada Software Controller
    Cloud AccessYes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
    Email AlertsYes
    LED ON/OFF ControlYes
    Management MAC Access ControlYes
    SNMPv1, v2c, v3
    System Logging Local/Remote SyslogYes
    Web-based ManagementYes

    OTHERS

    CertificationCE, FCC, RoHS, IC
    Package Contents• EAP723
    • Installation Guide
    • Ceiling/Wall Mounting Kit
    Environment• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
    • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
    • Operating Humidity: 10%–90% non-condensing;
    • Storage Humidity: 5%–90% non-condensing;

    รับประกัน

    Limited lifetime



    รายละเอียดสินค้า
    50 รายการ

    ข้อมูลสินค้า

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว มาตรฐาน WIFI
    WIFI-7 (be) 11Gbps+
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Hardware Controller
    Mode Repeate/WDS/MESH
    MESH
    รองรับ POE
    Yes
