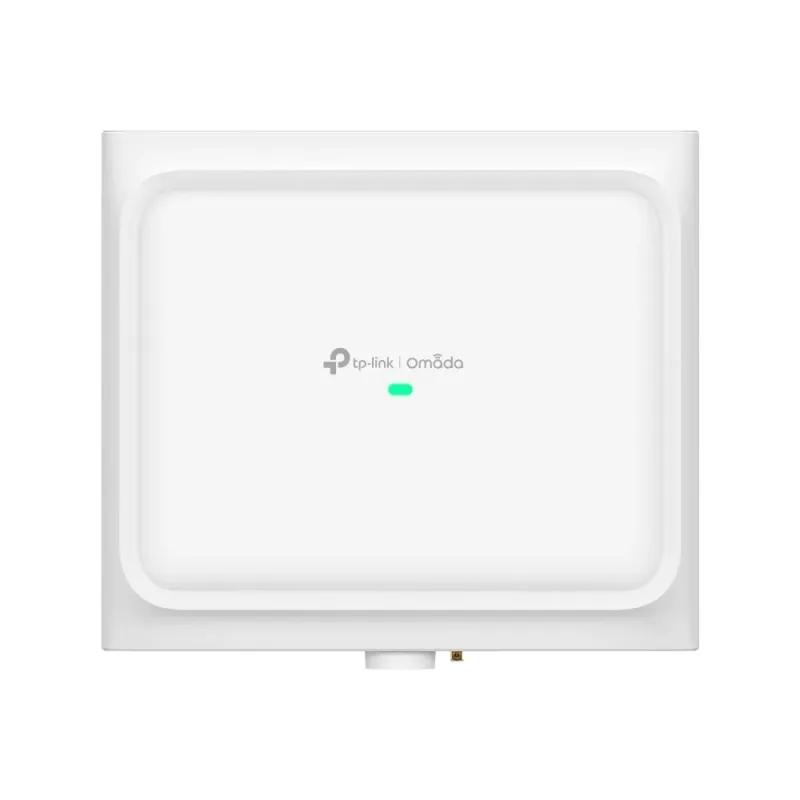

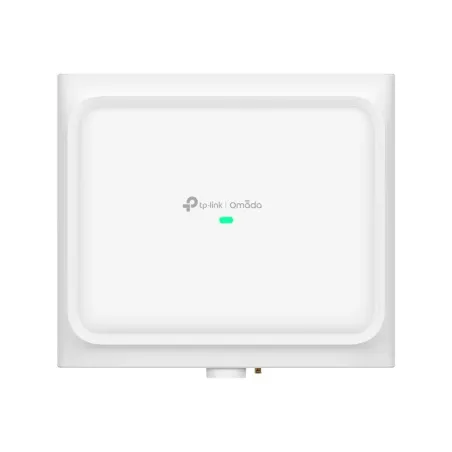

EAP772-Outdoor TP-Link Wireless Access Point WIFI7 BE9300 Tri-Band 2.4/5/6GHz, Port Lan 2.5Gbps, กระจายสัญญาณทิศทาง, กันน้ำกันฝุ่นมาตรฐาน IP68, รองรับ Omada SDN Controller Software
สินค้างาน Project สำหรับ SI, ผู้รับเหมา สอบถามราคาส่วนลดพิเศษได้เลยครับ
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
Omada SDN Controller Software 4.1.5Windows/Linux_User Guide
Omada Access Points_User Guide
EAP772-Outdoor Product Specification | |
Overview | EAP772-Outdoor TP-Link Wireless Access Point WIFI7 BE9300 Tri-Band 2.4/5/6GHz, Port Lan 2.5Gbps, กระจายสัญญาณทิศทาง, กันน้ำกันฝุ่นมาตรฐาน IP68, รองรับ Omada SDN Controller Software |
HARDWARE FEATURES | |

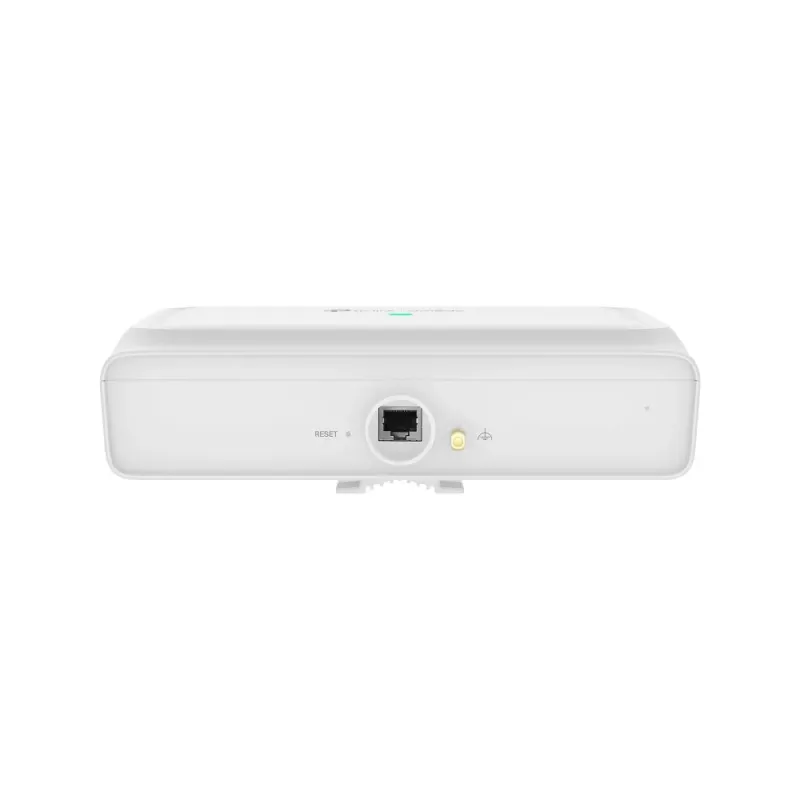

| Interface | 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| Max. Power Consumption | 21.5W (for PoE) |

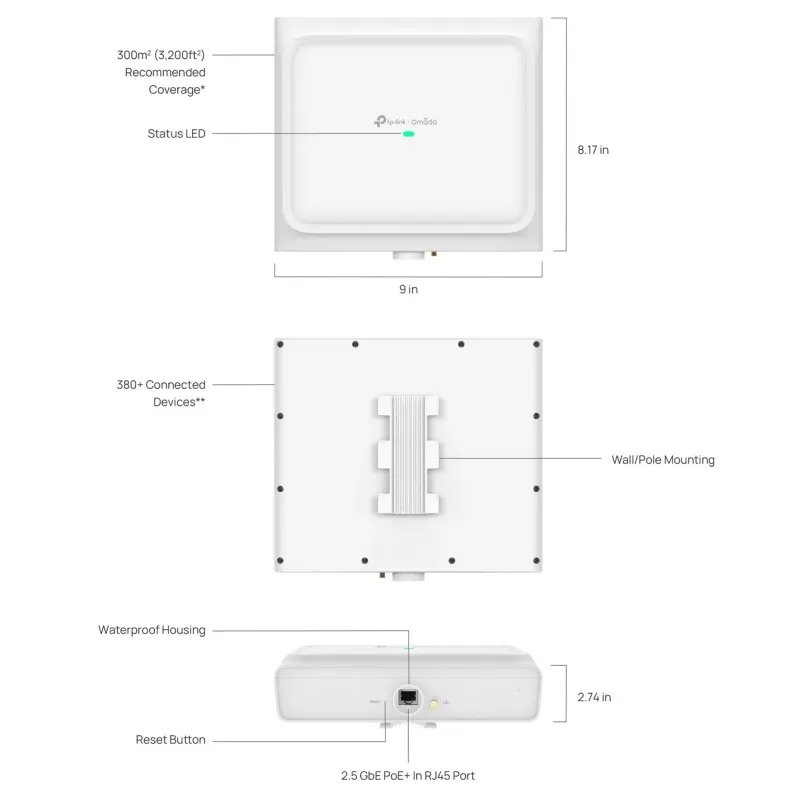

| Dimensions ( W x D x H ) | 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
| Antenna | • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi |
| GNSS | L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP68 |

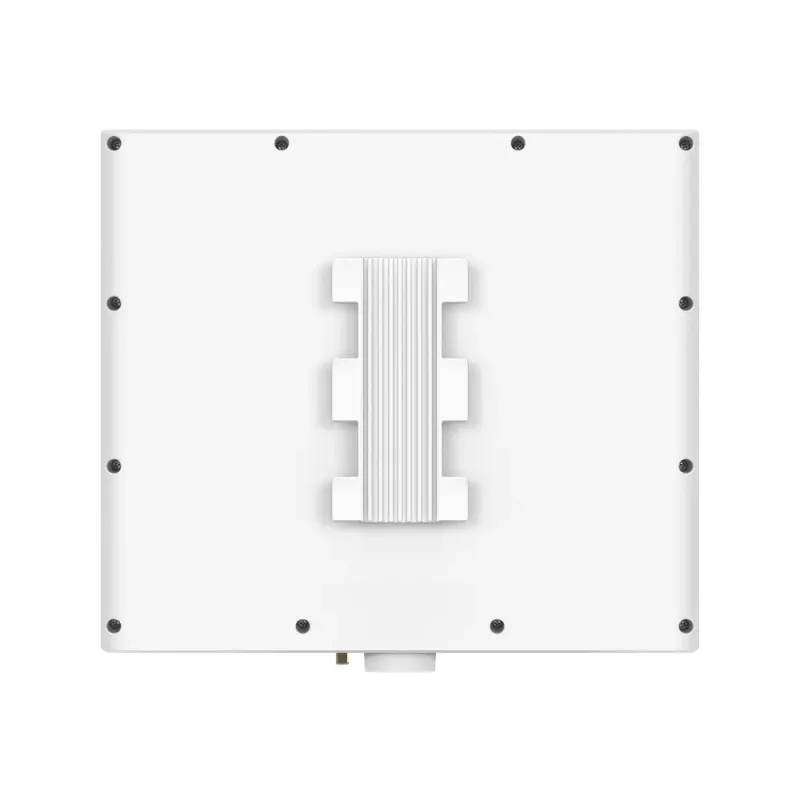

| Mounting | Pole/Wall Mounting (Kits included) |
WIRELESS FEATURES | |
| Coverage | 300m2 (3,200ft2) Recommended Omnidirectional Coverage |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11be/ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 4k-QAM • OFDMA • Multiple SSIDs: 24 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • CE: Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP) • FCC: Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) |
Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP772-Outdoor • Waterproof Kit • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
รับประกัน | Limited lifetime |
