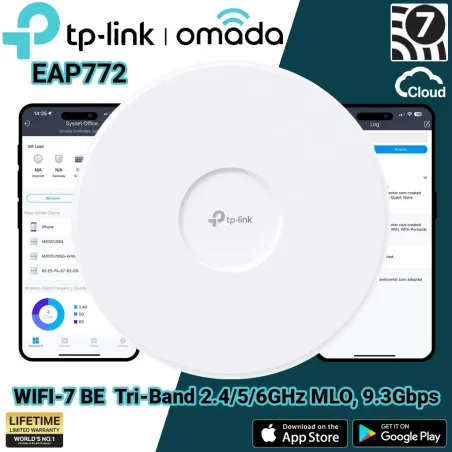

TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point BE9300 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† A clear 6 GHz band brings cleaner and wider band resources.‡ 1× 2.5G Port unlocks the full potential of Wi-Fi 7. 320 MHz bandwidth enables many more simultaneous transmissions.‡ Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡ Advanced Functions: Centralized management, mesh, and AI roaming.
EAP772 Product SpecificationOverview
TP-LINK EAP772 Wireless Access Point WIFI7 BE9300 Tri-Band 2.4/5/6GHz, Port Lan 2.5Gbps, Bandwidth 320MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

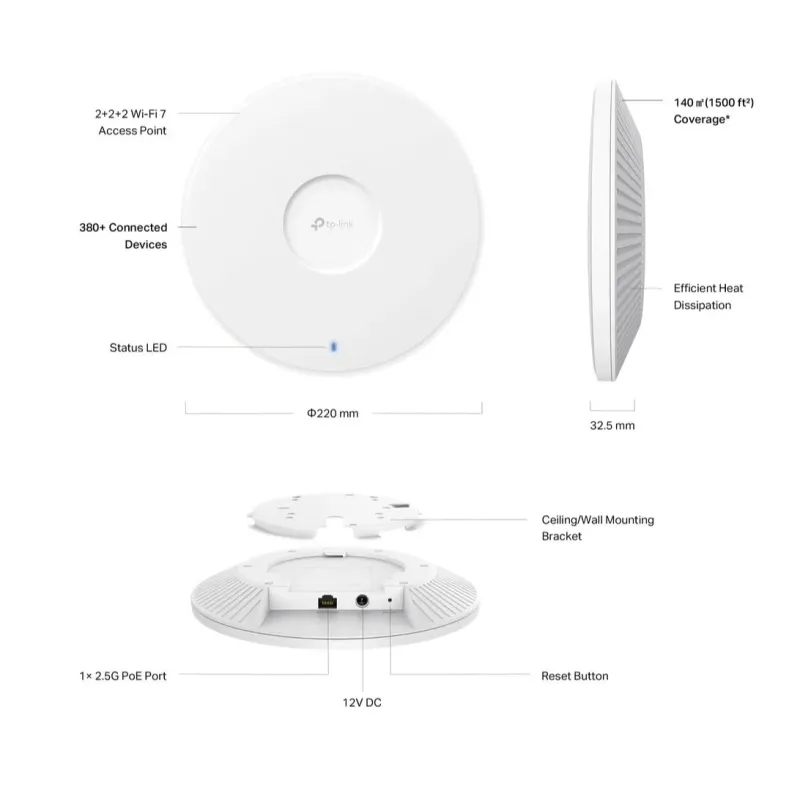

HARDWARE FEATURES Interface 1× 2.5G Ethernet Port Button Reset Power Supply 802.3at PoE or 12V/2.5A DC Power Consumption • 24.05 W (For PoE); Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Type • 2.4 GHz: 2× 4.0 dBi Bluetooth 1 × 4.0 dBi, Bluetooth 5.2 Mounting Ceiling / Wall Mounting (Kits Included) WIRELESS FEATURES Coverage 140㎡(1500 ft²)§ Wireless Client Capacity 380+** Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Frequency 6 GHz, 5 GHz, and 2.4 GHz Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† Wireless Functions • MLO‡ ‡ ‡ ‡ △ ‡ ‡ Wireless Security • Captive Portal Authentication△ Transmission Power < 20 dBm (2.4 GHz, EIRP) MANAGEMENT Omada App Yes Centralized Management • Omada Cloud-Based Controller Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes Web-based Management Yes OTHERS Certification CE, FCC, RoHS, IC Package Contents • EAP772 Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); รับประกัน Limited lifetime
รายละเอียดสินค้า
สินค้ามีในสต็อค 20 รายการ
ข้อมูลสินค้า
ลักษณะงาน Wireless กระจายสัญญาณ WIFI ความเร็ว มาตรฐาน WIFI WIFI-7 (be) 11Gbps+ ย่านความถี่ Tri-Band 2.4/5/6GHz รองรับ Controller Hardware Controller Mode Repeate/WDS/MESH MESH รองรับ POE Yes
