EAP773 TP-LINK BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Product Specification

Overview

TP-LINK EAP773 Wireless Access Point WIFI7 BE11000 Tri-Band 2.4/5/6GHz, Port Lan 10Gbps, Bandwidth 320MHz  กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

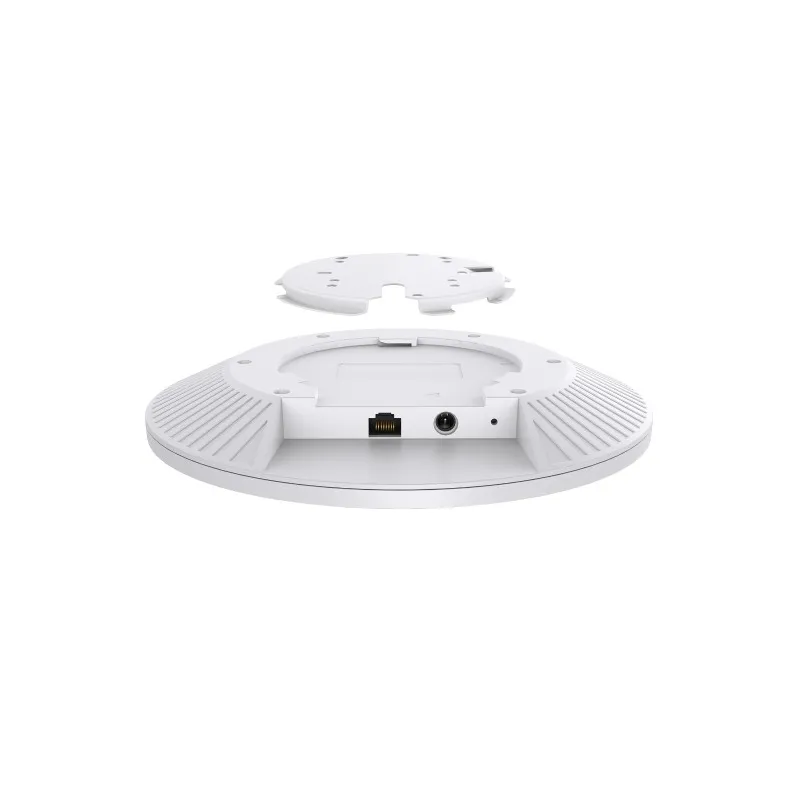

1× 10G Ethernet Port

Reset

802.3bt PoE or 12V/2.5A DC

Support Smart Power Comsuption Management
• 24.05 W (802.3bt, full functionality);
• 20.92 W (12/2.5A, full functionality);
• 22.4 W (802.3at decrease 6GHz Power);
• 10.1. W (802.3af, radio off, only main chip and LAN working)

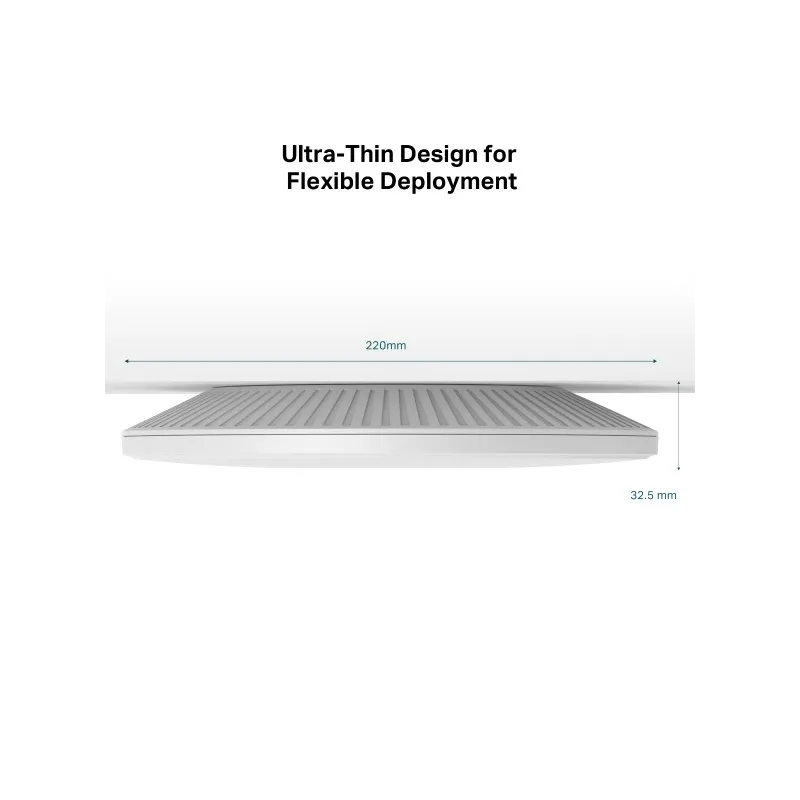

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

• 2.4 GHz: 2× 3.0 dBi
• 5 GHz: 2× 3.0 dBi
• 6 GHz: 2× 3.0 dBi

1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

Ceiling / Wall Mounting (Kits Included)

2 GHz: 128^**
5 GHz: 128^**
6 GHz: 128^**

IEEE 802.11 a/b/g/n/ac/ax/be

6 GHz, 5 GHz, and 2.4 GHz

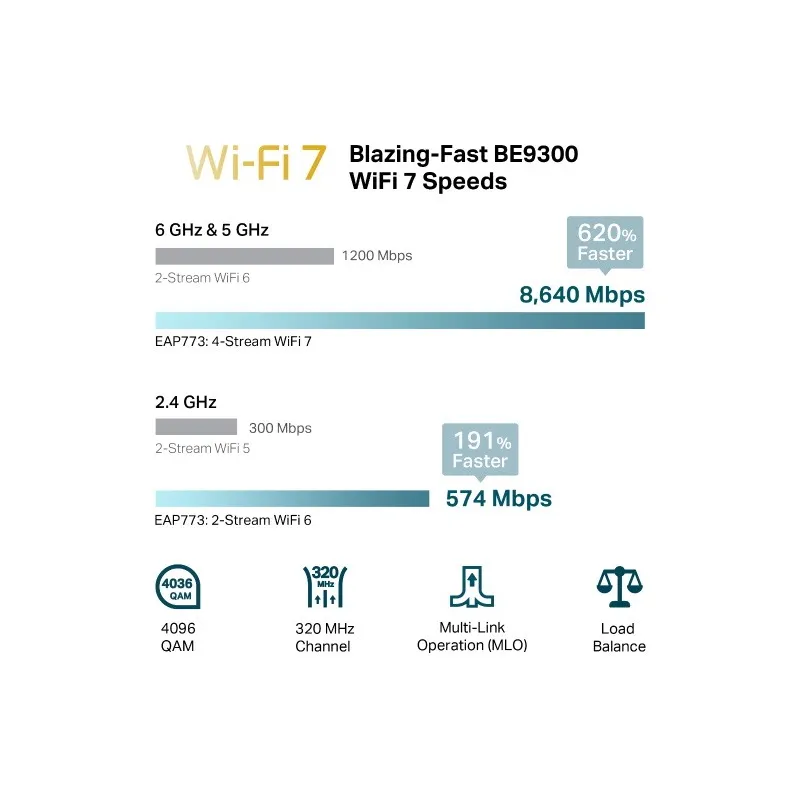

574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)^†

• MLO^‡
• 4K-QAM^‡
• MU-MIMO^‡
• HE320^‡
• Mesh^△
• BBS Coloring^‡
• OFDMA^‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

• Captive Portal Authentication^△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
< 23dBm (6 GHz, EIRP)

Yes

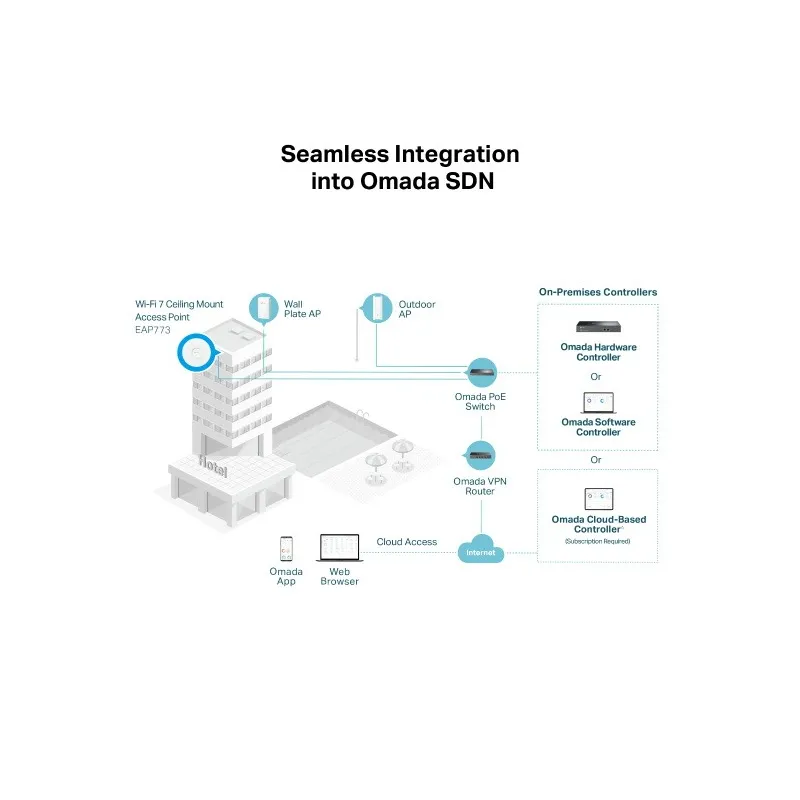

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Yes

Yes

Yes

v1, v2c, v3

Yes

Yes

CE, FCC, RoHS, IC

• EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

รับประกัน

Limited lifetime
