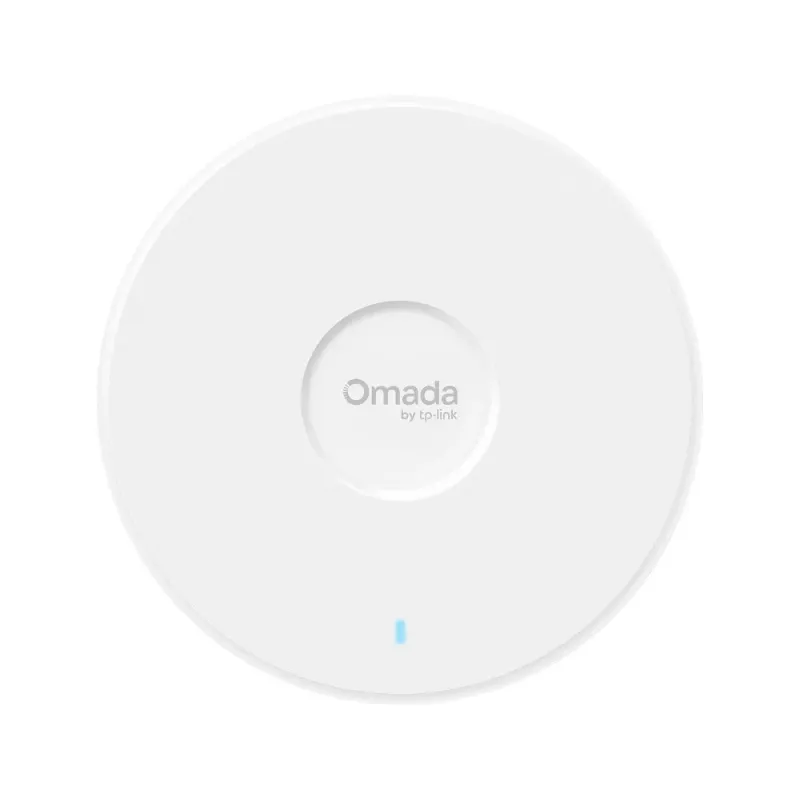

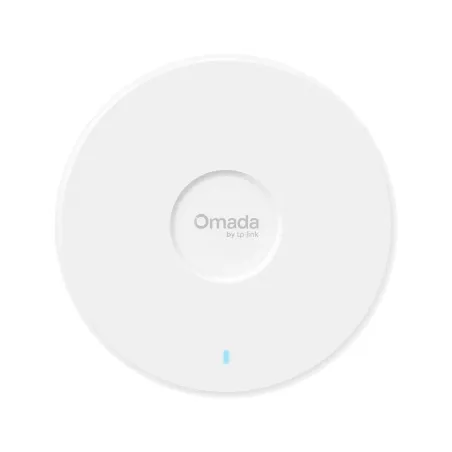

EAP787 TP-LINK BE12000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Name: EAP787 TP-LINK BE12000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Brand: TP-Link
SKU: 4105
Availability: InStock

แบรนด์ TP-Link

TP-LINK EAP787 Wireless Access Point WIFI7 BE12000 Tri-Band 2.4/5/6GHz, Port Lan 10Gbps, Bandwidth 320MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

สินค้างาน Project สำหรับ SI, ผู้รับเหมา สอบถามราคาส่วนลดพิเศษได้เลยครับ

Support / ติดตั้งด้วยทีมงาน Certificate

สอบถามข้อมูลสินค้าเพิ่มเติม

LINE ID: @sysnet โทร: 02 102 4284

Click ต้องการใบเสนอราคา

Rating:

(0)

รายละเอียด
รายละเอียดสินค้า

รายละเอียด

Omada SDN Controller Software 4.1.5Windows/Linux_User Guide

Omada Access Points_User Guide

EAP787 Datasheet

EAP787

TP-Link BE12000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
1× 10G Port: Ensures fast connectivity throughout the network
Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.

EAP787 Product Specification
Overview	TP-LINK EAP787 Wireless Access Point WIFI7 BE12000 Tri-Band 2.4/5/6GHz, Port Lan 10Gbps, Bandwidth 320MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software
HARDWARE FEATURES
Interface	1× 10G/2.5G Ethernet Port
Button	Reset
Power Supply	802.3bt/at PoE or 12V/2.5A DC
Max. Power Consumption	• 26.3 W (For PoE); • 22.4 W (For DC)

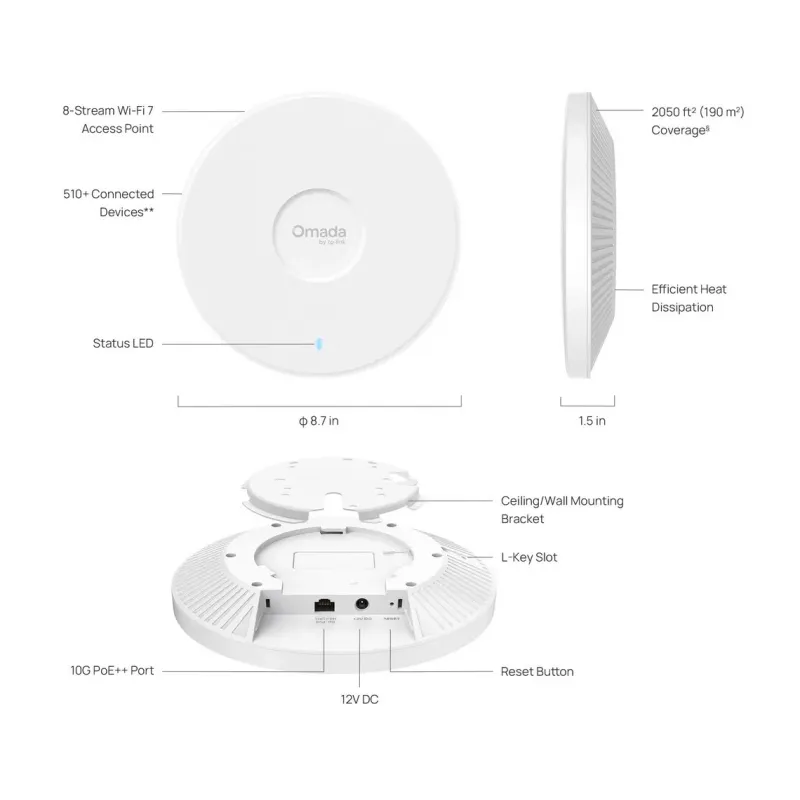

Dimensions ( W x D x H )	8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 4× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required.
Mounting	Ceiling / Wall/ Junction Box Mounting (Kits Included)
WIRELESS FEATURES
Coverage	2050 ft² (190 m²)*
Concurrent Clients	510+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
Wireless Functions	• 320 MHz Bandwidth‡ • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication△ • Access Control • Mac Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	6-20 dBm (2.4 GHz, EIRP) 9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) 6-23 dBm (6 GHz, EIRP)
Management Features
Omada App	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS, IC
Package Content	• EAP787 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kit Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
รับประกัน	Limited lifetime
