ER703WP-4G-Outdoor Product Specification |

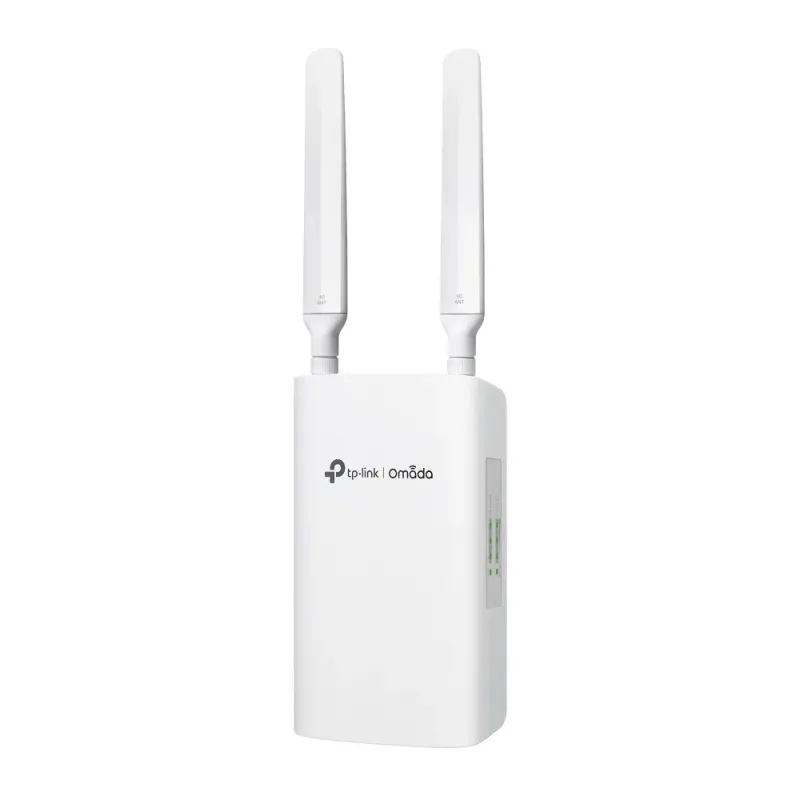

Overview | TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway แบบใส่ Sim รองรับเครือข่าย 4G ทุกเครือข่าย, WIFI AX Dual-Band, 3 Port Gigabit, รองรับ POE-Out/In, รองรับ IPSec VPN, รองรับการ Managed ผ่าน Omada Controller |
4G |
| Network Type | LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
00/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps;
• Uplink: 50 Mbps |
SECURITY |
| DPI | Application control via DPI / Updated app library |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering
• URL Filtering
• Web Security |
| ARP Inspection | • Sending GARP Packets
• ARP Scanning
• IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
HARDWARE FEATURES |
| Interface | • 3 Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |

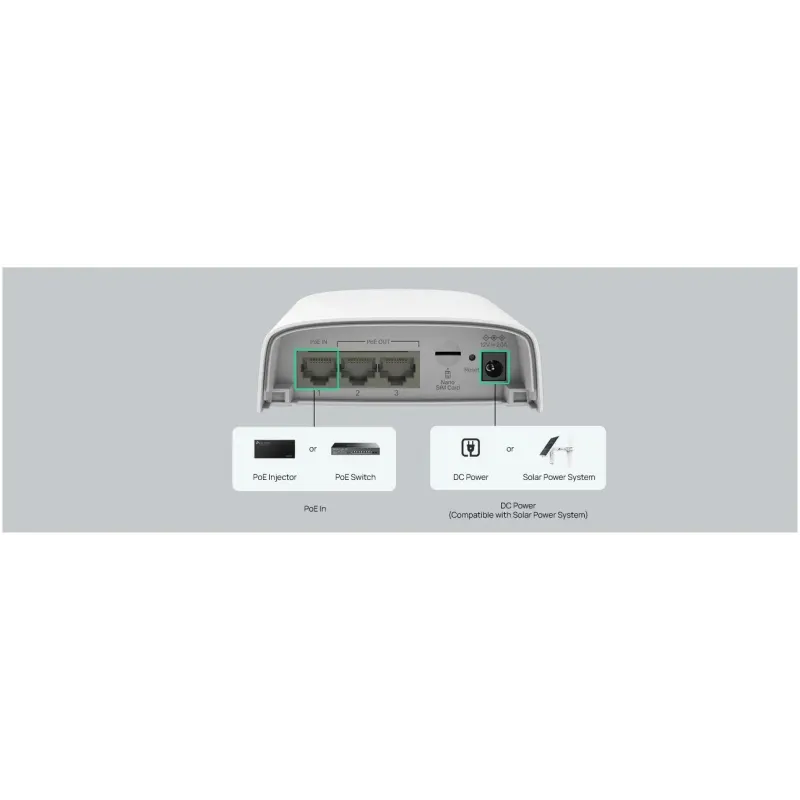

| Power Supply | 802.3at/bt PoE; 12VDC / 2A Power Adapter |

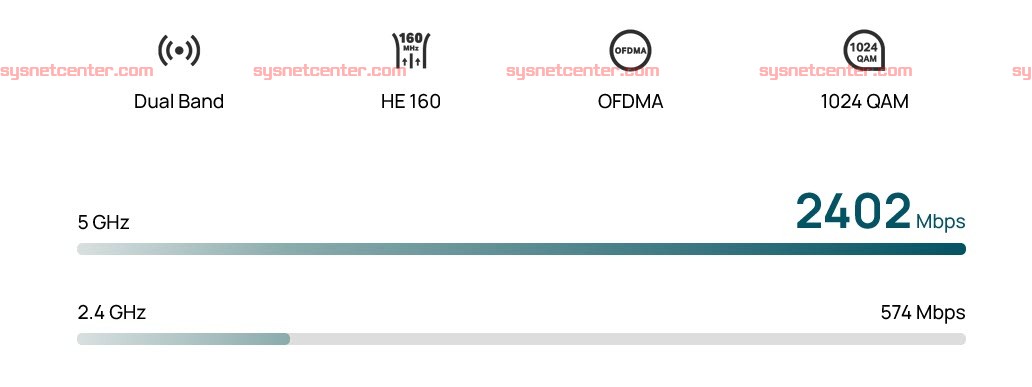

| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |

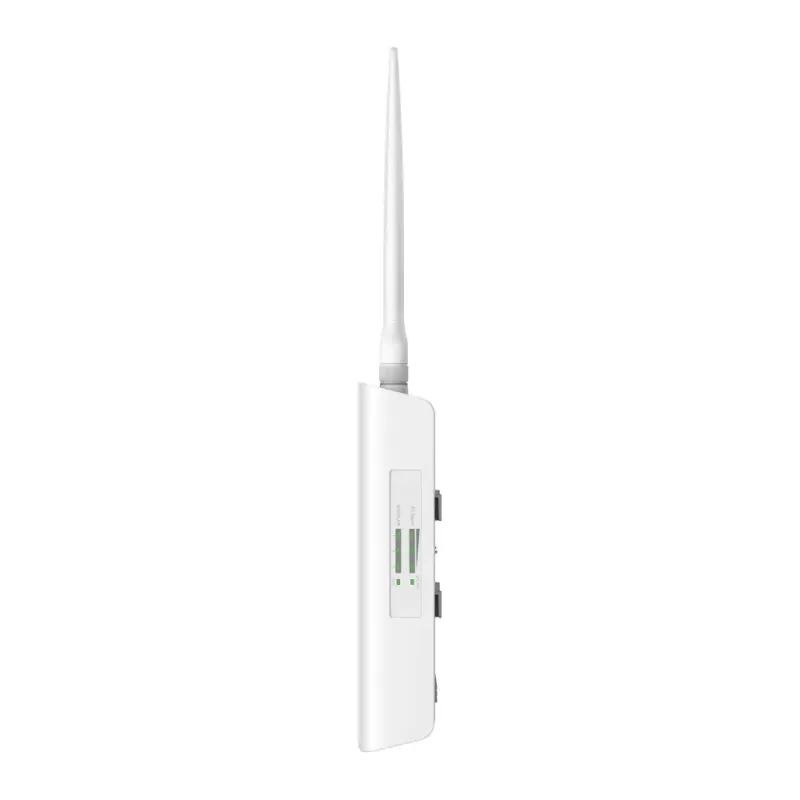

| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Dimensions ( W x D x H ) | 4.0 × 1.5 i×6.9 in (100.4 × 38.7 × 174.8 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |

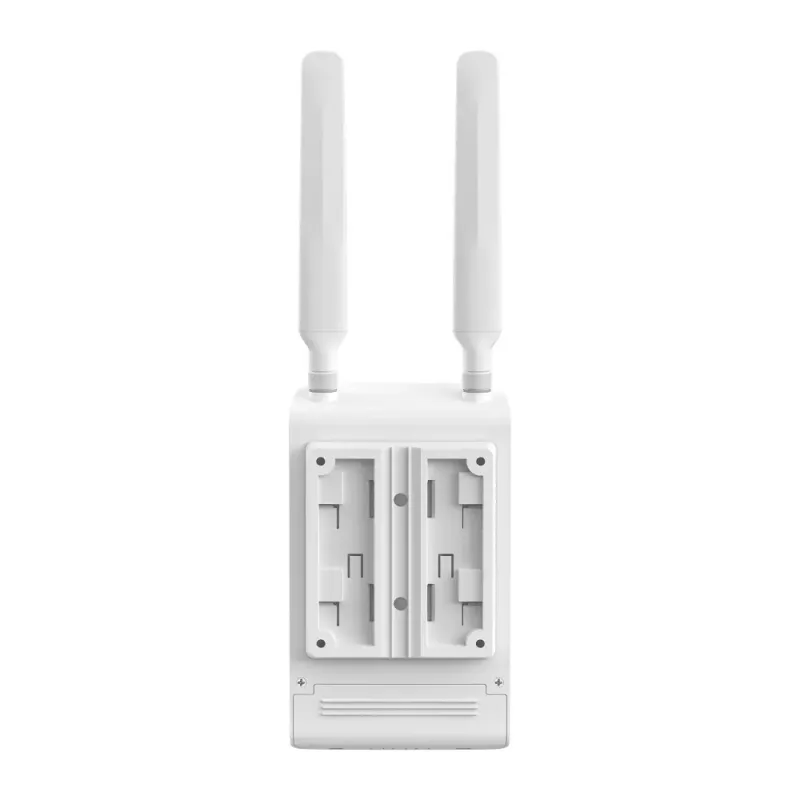

| Mounting | Pole/Wall-Mounting |
| Max. Power Consumption | • 14.5W without PoE
• 63W with PoE |
PERFORMANCE |
| DPI Throughput | • TCP: 1131 Mbps
• UDP: 974 Mbps |
| GRE | • Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps |

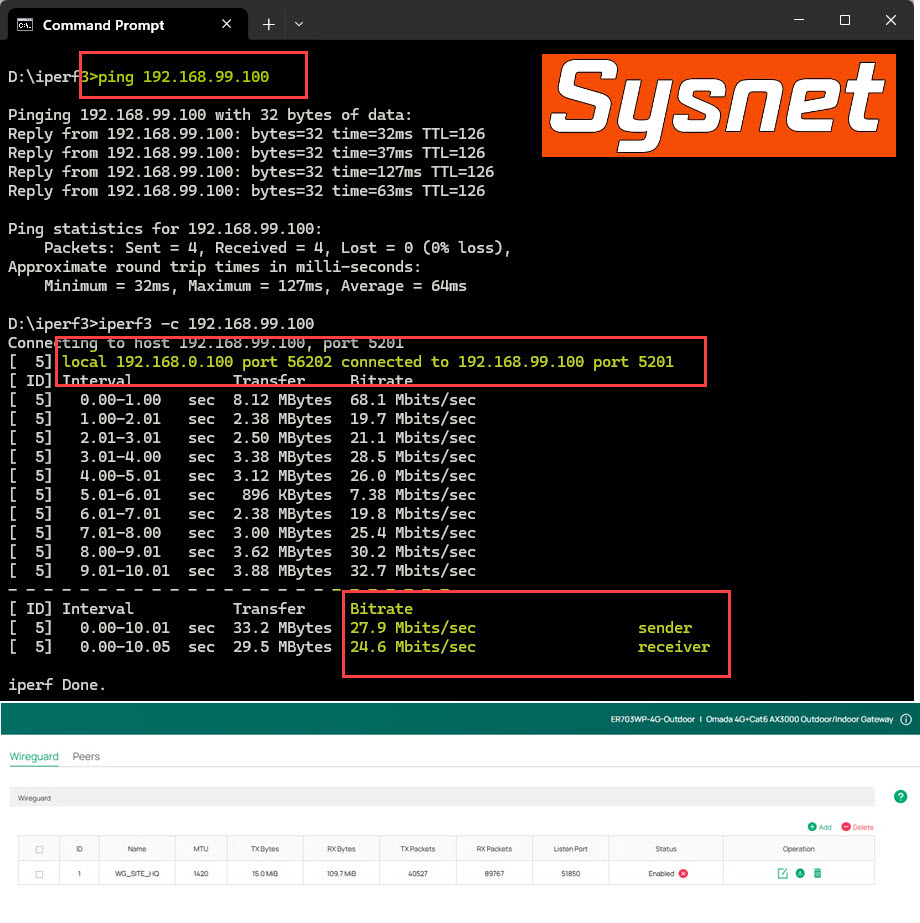

| WireGuard VPN | 462.8Mbps |
| Concurrent Session | 120,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 945.9Mbps / 950.2Mbps |
| NAT(DHCP) | 947.3Mbps / 949.4Mbps |
| NAT(PPPoE) | 916.9Mbps / 946.3Mbps |
| NAT (L2TP) | 878.9Mbps / 778.9Mbps |
| NAT (PPTP) | 852.2Mbps / 775.9Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps |
| OpenVPN | 85.1Mbps |
| L2TP VPN Throughput | • Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps |
| PPTP VPN Throughput | • Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps |
| SSL VPN Throughput | 86.6Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet forwarding rate | 81275 pps / 81275 pps |
WIRELESS FEATURES |
| Advanced Features | • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
BASIC FUNCTIONS |
| WAN Connection Type | • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
Advanced Features |
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing
• Policy Routing
• RIP
• OSPF |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
| NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit | IP-Based Session Limit |
VPN |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec |
| OpenVPN | • OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
| WireGuard VPN | • 20 Tunnels |
AUTHENTICATION |
| Web Authentication | • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP |
Management Features |

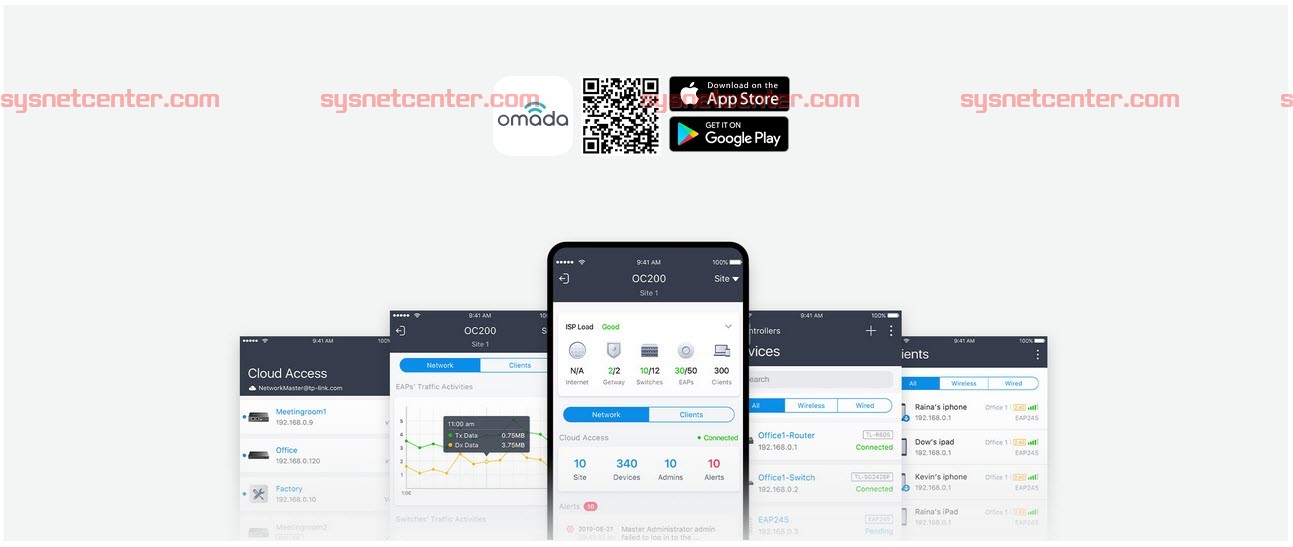

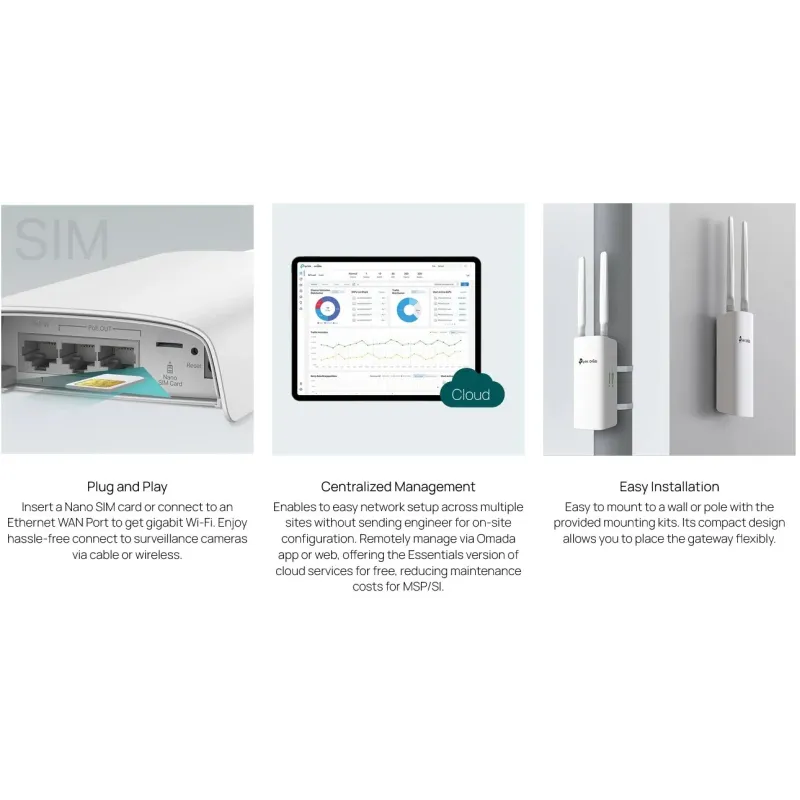

| Omada App | Yes. |
| Centralized Management | • Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
| Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Content | • ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
