Product Specification |

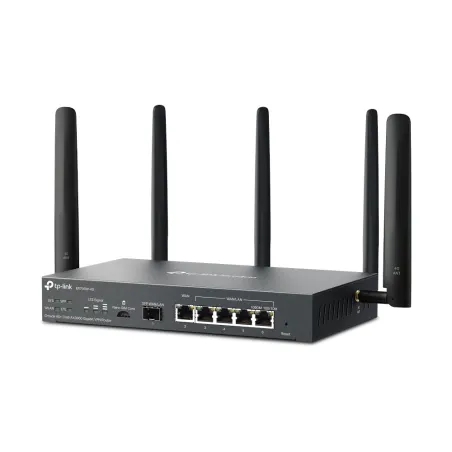

Overview | TP-LINK ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router, PSec VPN , L2TP, WireGuard รองรับ Loadbalance ได้ 4 WAN, 4G LTE Router แบบใส่ Sim รองรับทุกเครือข่าย, 5 Port Lan/WAN, 1 Port SFP, รองรับ Omada Controller และ Standalone Mode |
4G |
|---|
Network Type | LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)

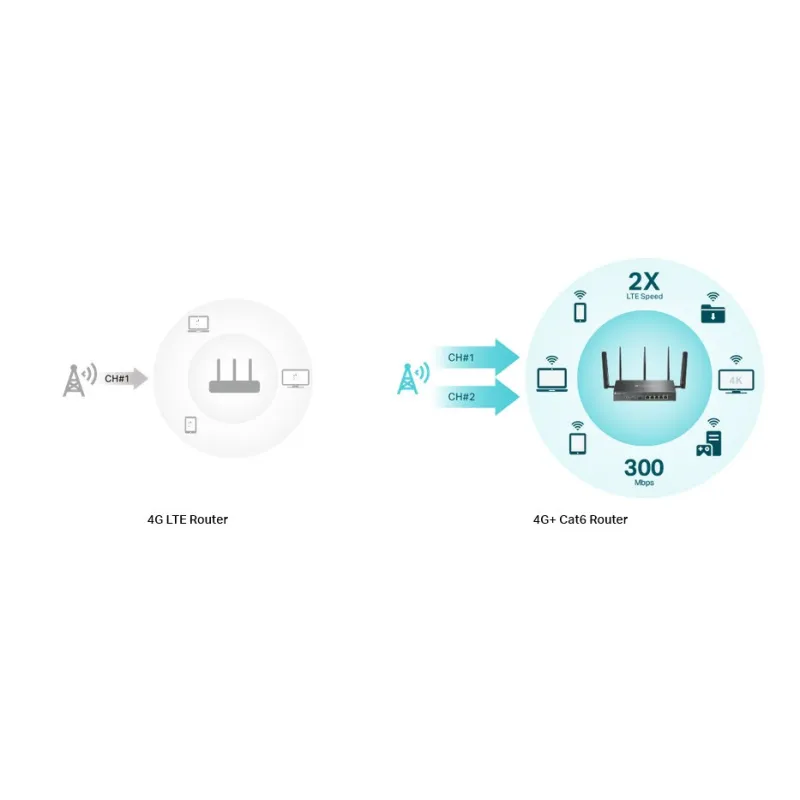

Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41 |
|---|
SIM Type | 1× Nano SIM Card |
|---|
Frequency | • Downlink: 300 Mbps;
• Uplink: 50 Mbps |
|---|
SECURITY |
|---|
Access Control | Source/Destination IP Based Access Control |
|---|
Filtering | • Web Group Filtering†
• URL Filtering
• Web Security†
|
|---|
ARP Inspection | • Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding |
|---|
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
|---|
HARDWARE FEATURES |
|---|

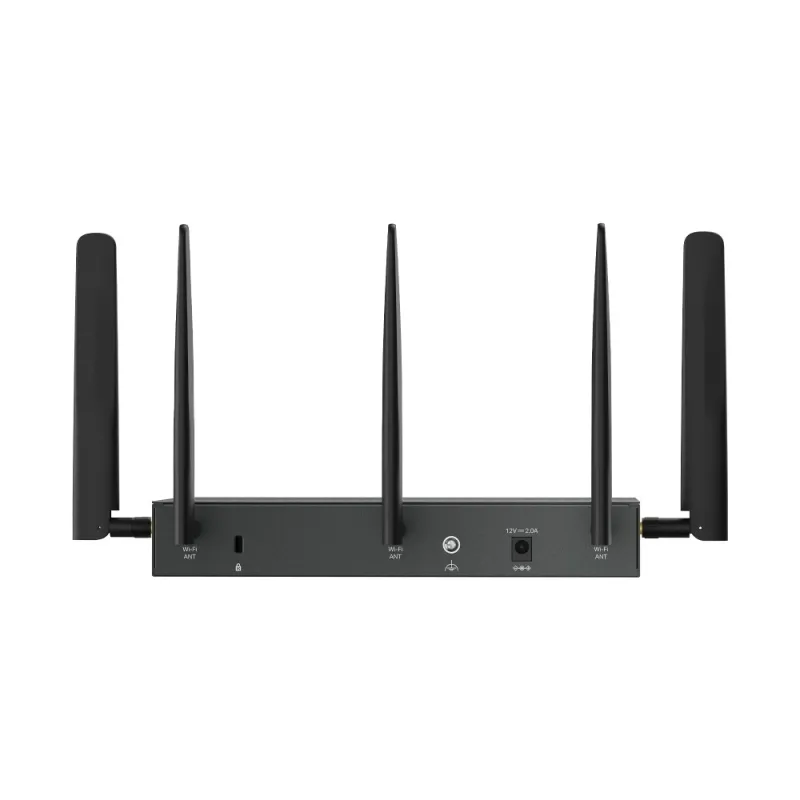

Interface | • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports |
|---|
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
|---|
Button | Reset Button |
|---|
Power Supply | 12VDC / 2A Power Adapter |
|---|
Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
|---|
Flash | 128 MB NAND |
|---|
DRAM | 512 MB DDR4 |
|---|
LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
|---|
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)
|
|---|
Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |
|---|
Mounting | Desktop/Wall-Mounting |
|---|
Max Power Consumption | EU: 17.3W
|
|---|
PERFORMANCE |
|---|
GRE | • Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps |
|---|
WireGuard VPN | 387.7Mbps |
|---|
Concurrent Session | 150,000 |
|---|
New Sessions /Second | 5,100 |
|---|
NAT (Static IP) | 947.1Mbps / 940.1Mbps |
|---|
NAT(DHCP) | 949.2Mbps / 941.1Mbps |
|---|
NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
|---|
NAT (L2TP) | 875.4Mbps / 892.0Mbps |
|---|
NAT (PPTP) | 881.2Mbps / 895.8Mbps |
|---|
IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps |
|---|
OpenVPN | 115.5Mbps |
|---|
L2TP VPN Throughput | • Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps |
|---|
PPTP VPN Throughput | • Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps |
|---|
SSL VPN Throughput | 122.5Mbps |
|---|
66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
|---|
1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
|---|
WIRELESS FEATURES |
|---|
Advanced Functions | • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio) |
|---|
Guest Network | Support |
|---|
BASIC FUNCTIONS |
|---|
WAN Connection Type | • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
|---|
MAC Clone | Modify WAN Address |
|---|
DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
|---|
SMS | Receive / Send SMS |
|---|
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
|---|
VLAN | 802.1Q VLAN |
|---|
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
|---|
ADVANCED FUNCTIONS |
|---|
ACL | IP/Port/Protocol/Domain Name Filtering |
|---|
Advanced Routing | • Static Routing
• Policy Routing
• RIP†
• OSPF† |
|---|
Bandwidth Control | IP-Based Bandwidth Control
|
|---|
Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
|---|
NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
|---|
Session Limit | IP-Based Session Limit |
|---|
VPN |
|---|
GRE | Only in Standalone Mode |
|---|
SSL VPN | 50 Tunnels |
|---|
IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
|---|
PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption |
|---|
L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec |
|---|
OpenVPN | • OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
|---|
AUTHENTICATION |
|---|
Web Authentication | • No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP |
|---|
MANAGEMENT |
|---|
Omada App | Yes. |
|---|
Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
|
|---|
Cloud Access | Yes. |
|---|
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
|---|
Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
|---|
Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
|---|
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • ER706W-4G
• Power Adapter
• Quick Installation Guide |
|---|
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
|---|
Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
|---|
รับประกัน | Limited Lifetime |
| |
