TP-Link ES205 Product Specification |

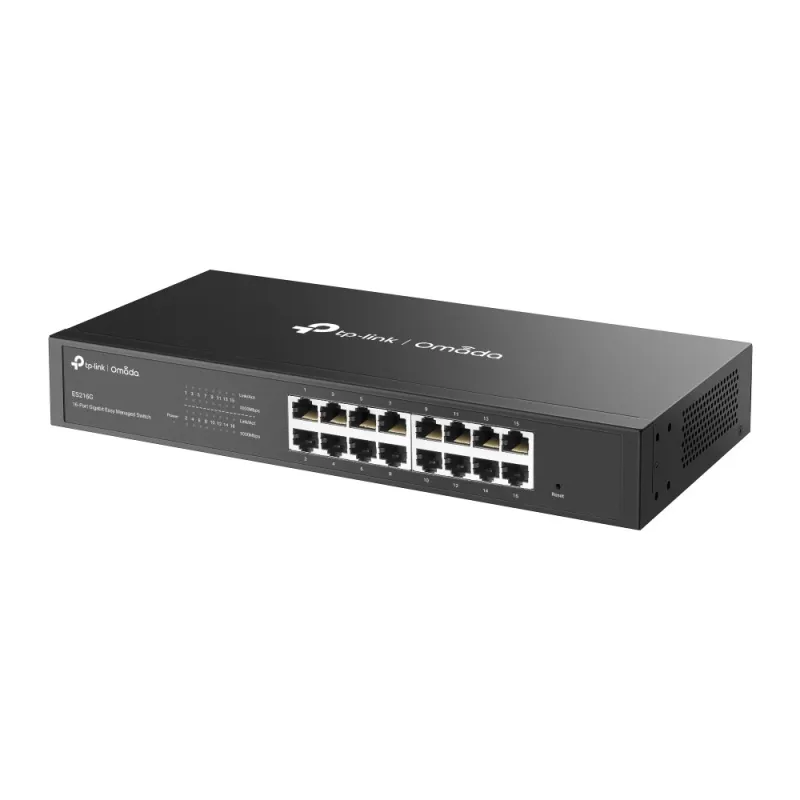

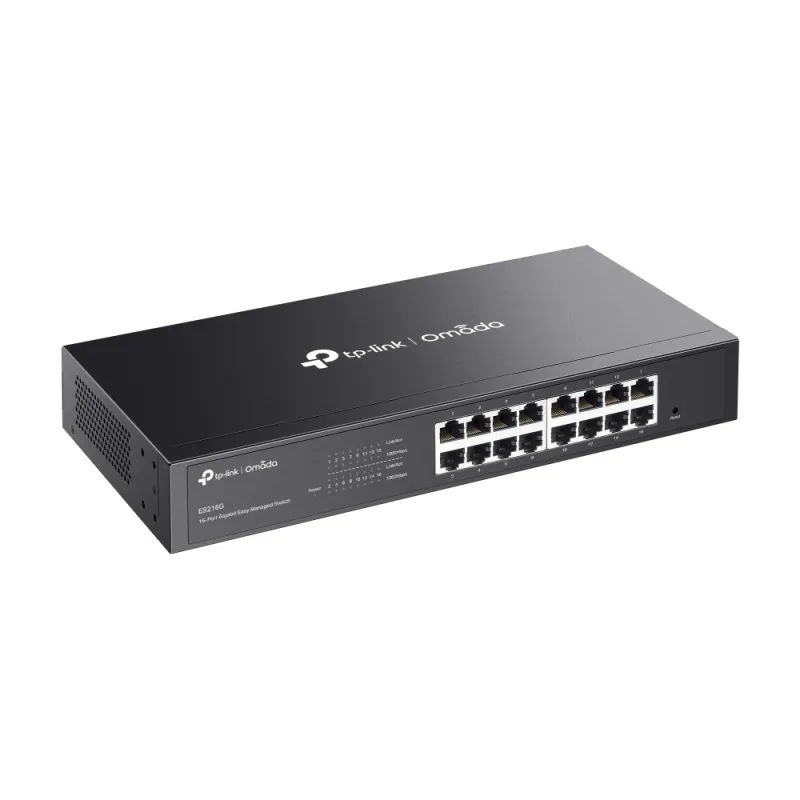

Overview | TP-LINK ES216G Omada 8-Port Gigabit Easy Managed Switch รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snoopingสามารถ Manage ผ่าน Omada Cloud Controller ได้ |
HARDWARE FEATURES |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop• Rack Mount |
| Physical Security Lock | √ |
| Power Supply | 100-240V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
PERFORMANCE |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
SOFTWARE FEATURES |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode- WRR (Weighted Round Robin)
• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit
• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control- 802.3x Flow Control
• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both
• Port Statistics- Port Mirror Status- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
Management Features |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controlle
r• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration† |
OTHERS |
| Certification | FCC, CE, RoHS |
| Package Content | • ES216G
• Power Cord
• Rubber Feet
• Mounting Brackets
• Screws
• Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
รับประกัน | Limited lifetime |
