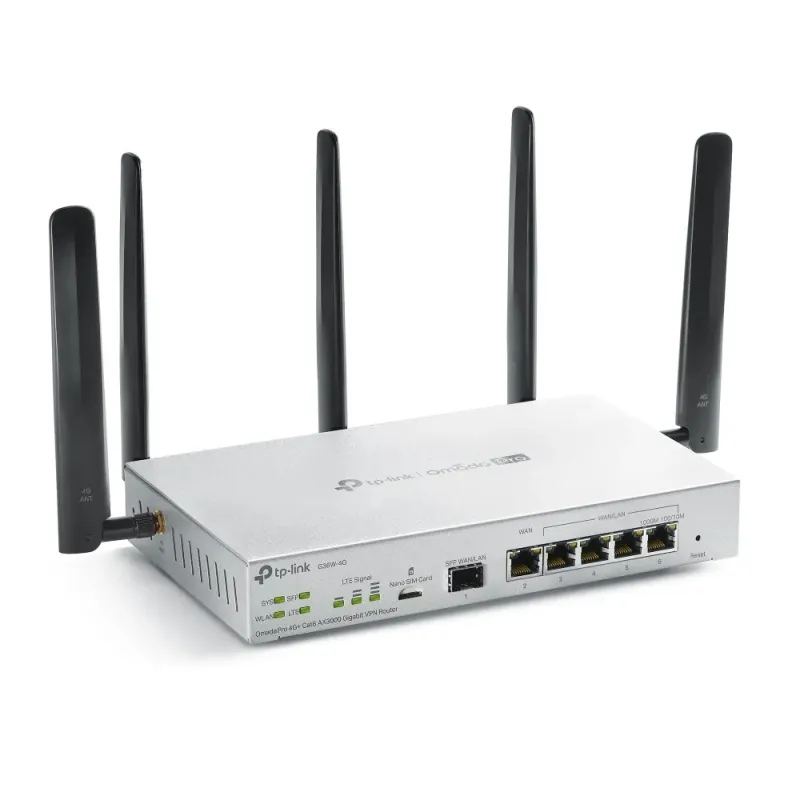

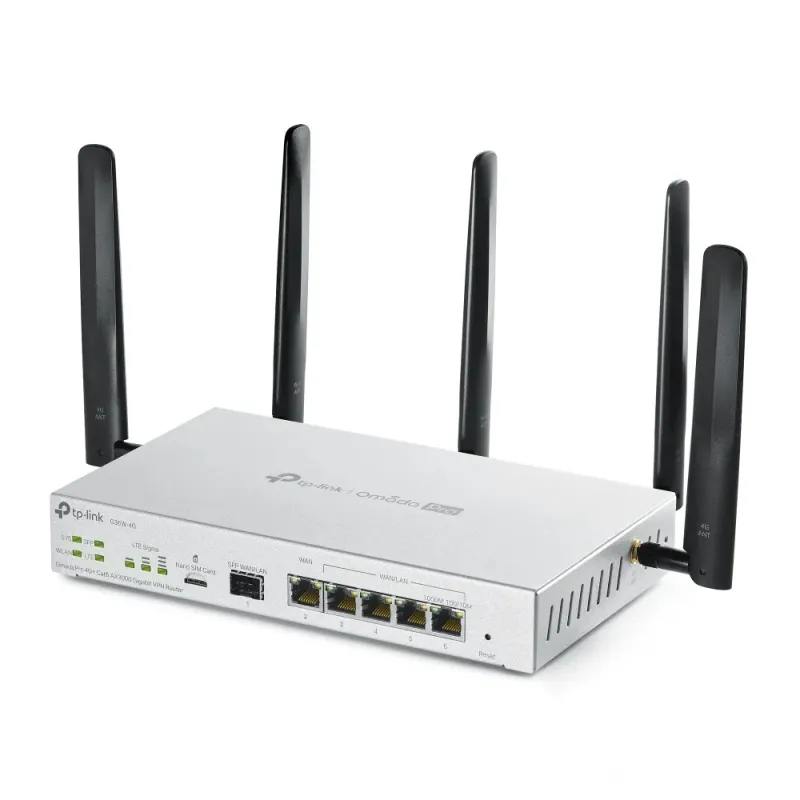

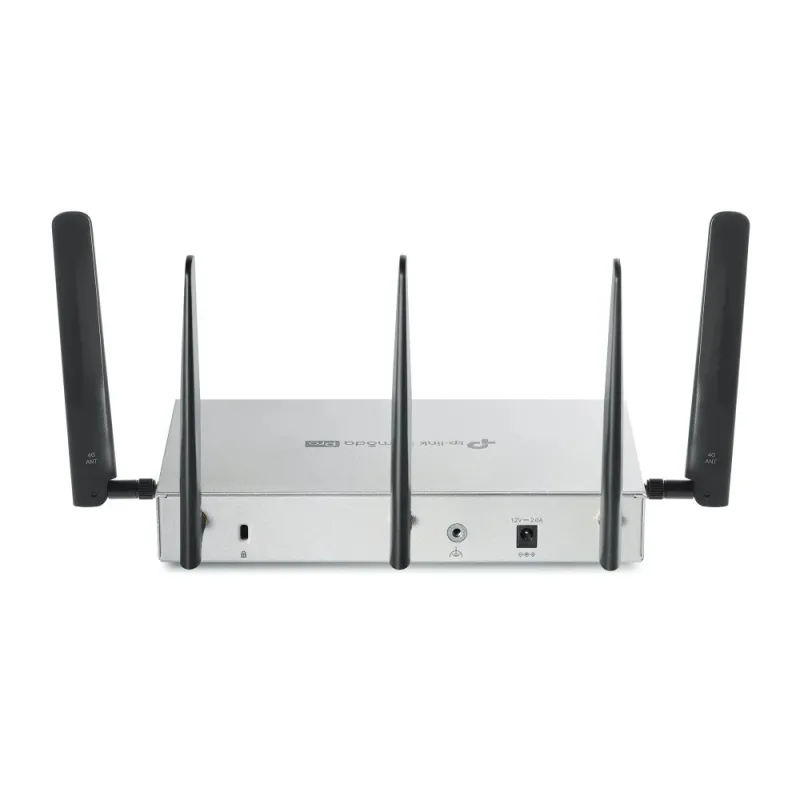

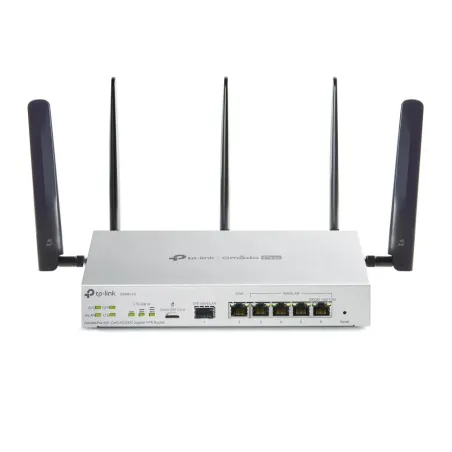

TP-Link G36W-4G Product Specification |
Product Overview | TP-Link G36W-4G Omada Pro 4G+ Cat6 AX3000 Gigabit VPN Router , WIFI-6 Dual-Band รองรับ IPsec/L2TP/SSL VPN, VLAN 802.1Q บริหารจัดการด้วย Omada Pro |
4G |
| Network Type | LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation of EU:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
LTE Band of US:
• 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
(1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)
• 4G LTE-TDD: B41/B48 (2500/3600 MHz)
Carrier Aggregation of US:
B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71
B4+B4/B5/B7/B12/B13/B29/B30/B71
B5+B5/B7/B25/B30/B41/B66
B7+B7/B12/B66
B12+B12/B25/B30/B66
B13+B66
B14+B30/B66
B25+B25/B26/B41
B26+B41
B29+B30/B66
B30+B66
B41+B41
B48+B48
B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps;
• Uplink: 50 Mbps |
SECURITY |
| DPI | • Application Control
• Traffic Monitor
• Application List |
| IDS/IPS | • Block List
• Allow List
• Signature Suppression
Note: IDS means Intrusion detection systems. IPS means intrusion prevention systems. |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering†
• URL Filtering
• Web Security† |
| ARP Inspection | • Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
HARDWARE FEATURES |
| Interface | • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop/ Wall-Mounting |
| Max Power Consumption | EU: 15.4W
US: 17.3W |
PERFORMANCE |
| GRE | • Unencrypted: 545.3 Mbps
• Encrypted: 282.6 Mbps |
| WireGuard VPN | 387.7 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 947.1 Mbps / 940.1 Mbps |
| NAT(DHCP) | 949.2 Mbps / 941.1 Mbps |
| NAT(PPPoE) | 942.6 Mbps / 941.1 Mbps |
| NAT (L2TP) | 875.4 Mbps / 892.0 Mbps |
| NAT (PPTP) | 881.2 Mbps / 895.8 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2 Mbps
• ESP-SHA256-AES256: 654.4 Mbps
• ESP-SHA384-AES256: 646.5 Mbps
• ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5 Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0 Mbps
• Encrypted: 475.0 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1177.9 Mbps
• Encrypted: 177.4 Mbps |
| SSL VPN Throughput | 122.5 Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
WIRELESS FEATURES |
| Advanced Functions | • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
BASIC FUNCTIONS |
| WAN Connection Type | • Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FUNCTIONS |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing
• Policy Routing
• RIP†
• OSPF† |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection |
| NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit | IP-based Session Limit |
VPN |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec |
| OpenVPN | • OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
AUTHENTICATION |
| Web Authentication | • No Authentication
• Simple Password§
• Hotspot(Local User /Voucher§/ SMS§/Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP§ |
MANAGEMENT |
| Omada App | Yes. Requiring the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller. |
| Centralized Management | • Omada Pro Cloud-Based Controller
• Omada Pro Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | • G36W-4G
• Power Adapter
• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
รับประกัน | Limited Lifetime |
