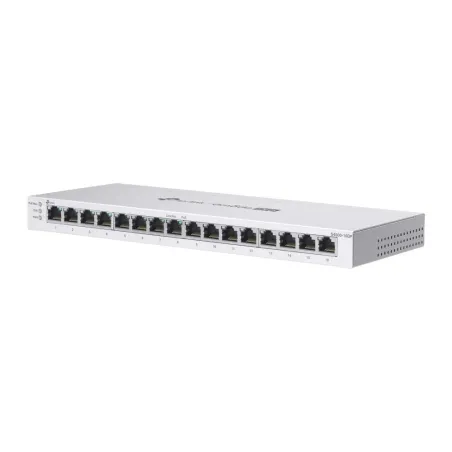

S4500-16GP TP-Link Omada Pro 16-Port Gigabit Smart Switch 8-Port PoE+

TP-Link

TP-Link S4500-16GP Omada Pro 16-Port Gigabit Smart Switch, 8-Port PoE+ ความเร็ว Gigabit, รองรับ ACL, VLAN 802.1q, LACP, DHCP Snooping รองรับการ Managed ผ่าน Omada Pro, POE 120W

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

Rating:
(0)


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

Omada Pro Smart Switch Datasheet



TP-Link S4500-16GP

Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+

  • 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
  • 120 W total PoE budget with up to 30 W PoE output per port*
  • Ideal for the access layer in enterprise networking
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing
  • Fanless design for silent operation
  • Desktop/wall mounting





TP-Link S4500-16GP Product Specification

Overview

TP-Link S4500-16GP Omada Pro 16-Port Gigabit Smart Switch, 8-Port PoE+ 120W ความเร็ว Gigabit, รองรับ ACL, VLAN 802.1q, LACP, DHCP Snooping รองรับการ Managed ผ่าน Omada Pro

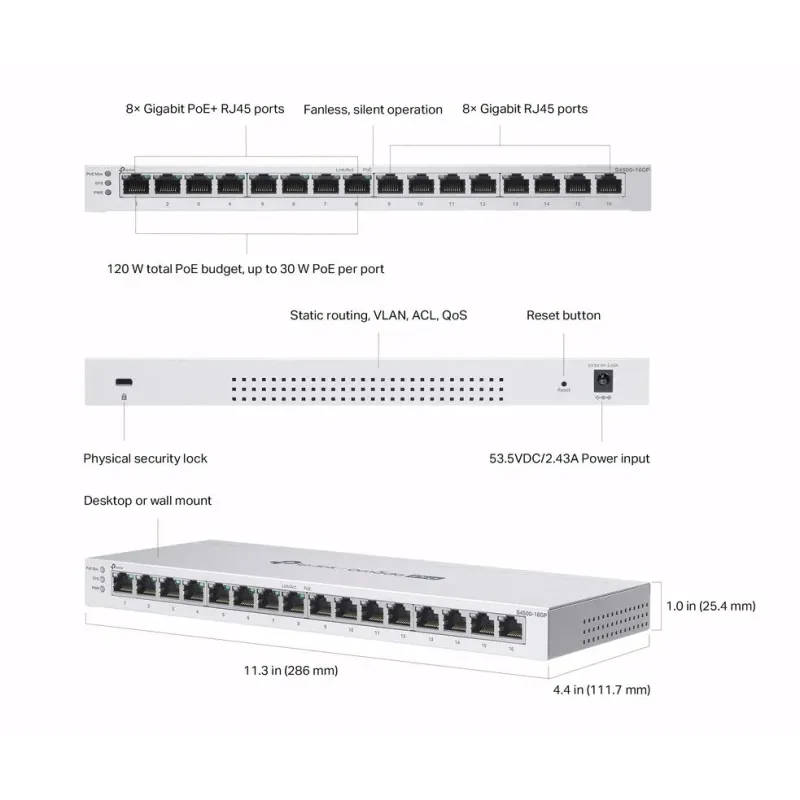

HARDWARE FEATURES

Interface • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Physical Security Lock
Power Supply External Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45) • Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W*
Dimensions ( W x D x H ) 11.3×4.4×1.0 in (286×111.7×25.4 mm)
Mounting Desktop/Wall-Mounting
Max Power Consumption 146.5 W (110 V/60 Hz) (with 120 W PD connected)
Max Heat Dissipation 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE

Switching Capacity 32 Gbps
Packet Forwarding Rate 23.81 Mpps
MAC Address Table 8k
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features Intelligent Anomaly Detection
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
VLAN • VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL Rules Binding: Port Binding, VLAN Binding
Security • IP-MAC-Port Binding
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6 • IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App Yes, through Omada Pro Controller
Centralized Management • Omada Pro Cloud-Based Controller
• Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
• Remote Packet Capture

OTHERS

Certification CE, FCC, RoHS
Package Contents • S4500-16GP
• Power Adapter
• Installation Guide
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Warranty

Lifetime

รายละเอียดสินค้า

ข้อมูลสินค้า

ประเภท Switch
Ethenet Switch
Layer Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
16 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
8 Port
