TP-Link S5500-24F4XF Omada Pro 24-Port SFP L2 Managed Switch, 4 Port SFP+ 10Gbps, รองรับ Static Routing, ACL, VLAN 802.1q, LACP, 802.1X, รองรับการ Managed ผ่าน Omada Pro
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Omada Pro Gigabit L2+ Mnaged Switch Datasheet
TP-Link S5500-24F4XF Product Specification |
|
|
Overview |
TP-Link S5500-24F4XF Omada Pro 24-Port SFP L2 Managed Switch, 4 Port SFP+ 10Gbps, รองรับ Static Routing, ACL, VLAN 802.1q, LACP, 802.1X, รองรับการ Managed ผ่าน Omada Pro |
HARDWARE FEATURES |
|

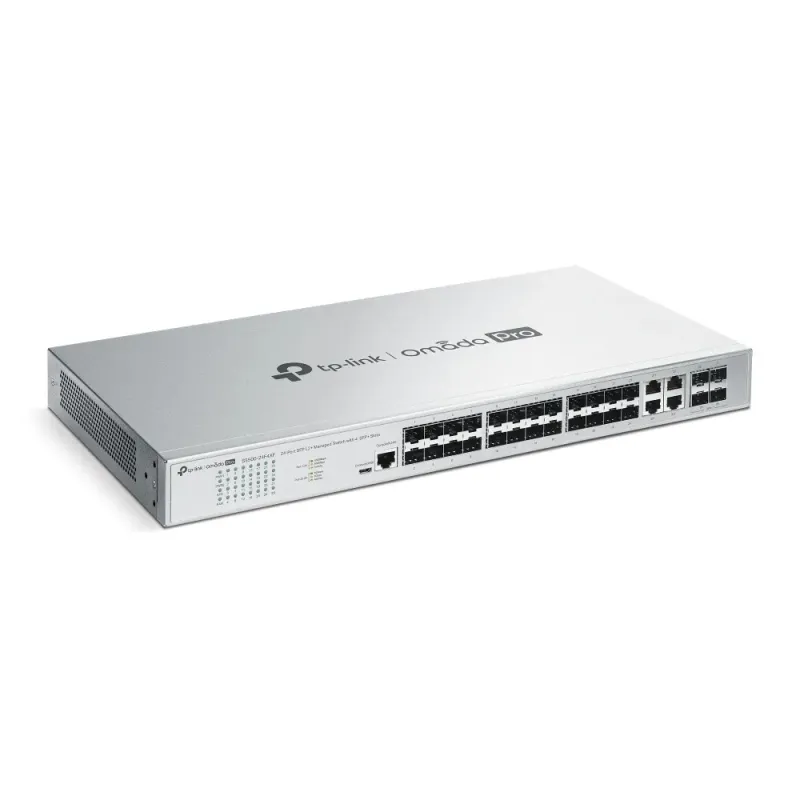

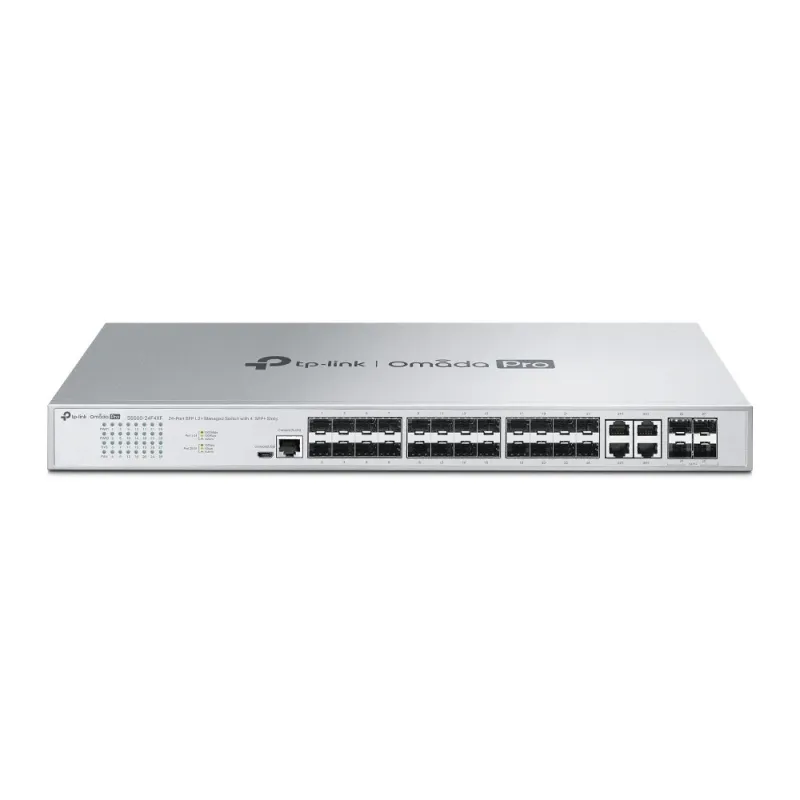

| Interface | • 20× Gigabit SFP Ports • 4× Gigabit SFP/RJ45 Combo Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 1 Fan |

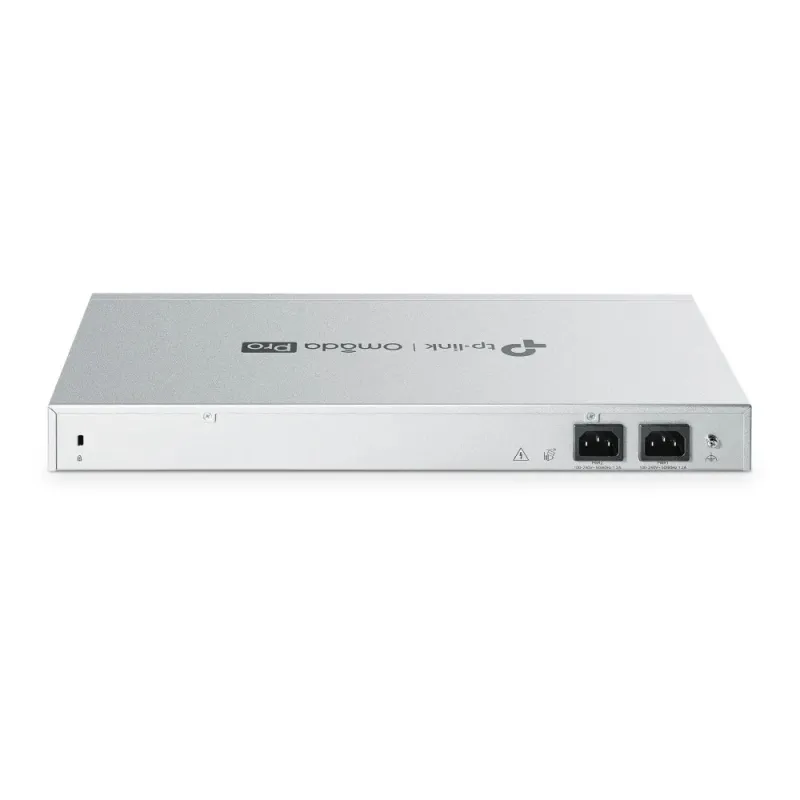

| Power Supply | Dual Redundant Power Supplies 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 35.7 W (110 V/60 Hz) |
| Max Heat Dissipation | 121.81 BTU/hr (110 V/60 Hz) |
PERFORMANCE |
|
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
SOFTWARE FEATURES |
|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L3 Features | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay |
| L2 and L2+ Features | • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS Intelligent Anomaly Detection* |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN • OUI-Based VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
MANAGEMENT |
|
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management | • Omada Pro Cloud-Based Controller • Omada Pro Software Controller |
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log • Remote Packet Capture |
OTHERS |
|
| Certification | CE, FCC, RoHS |
| Package Contents | • S5500-24F4XF Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Warranty |
ประกัน Lifetime ศูนย์ TP-Link |
