SDN 10-Gigabit L3 Stackable Managed Switch Datasheet
TP-Link S6500-24M4Y Product Specification |
|
|
Overview |

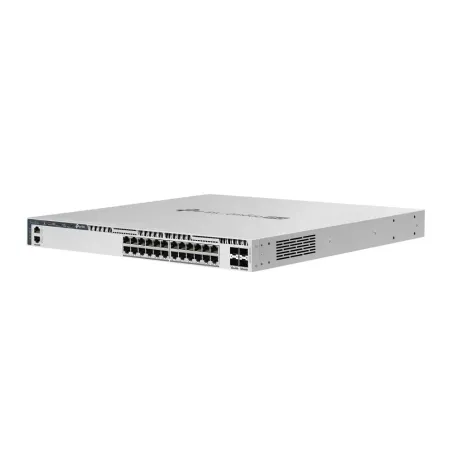

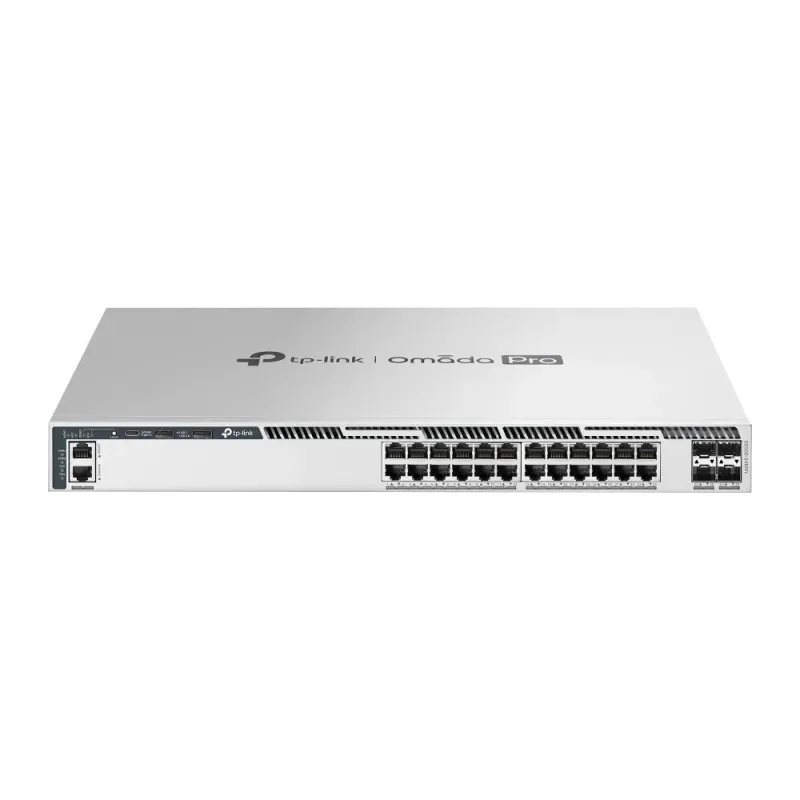

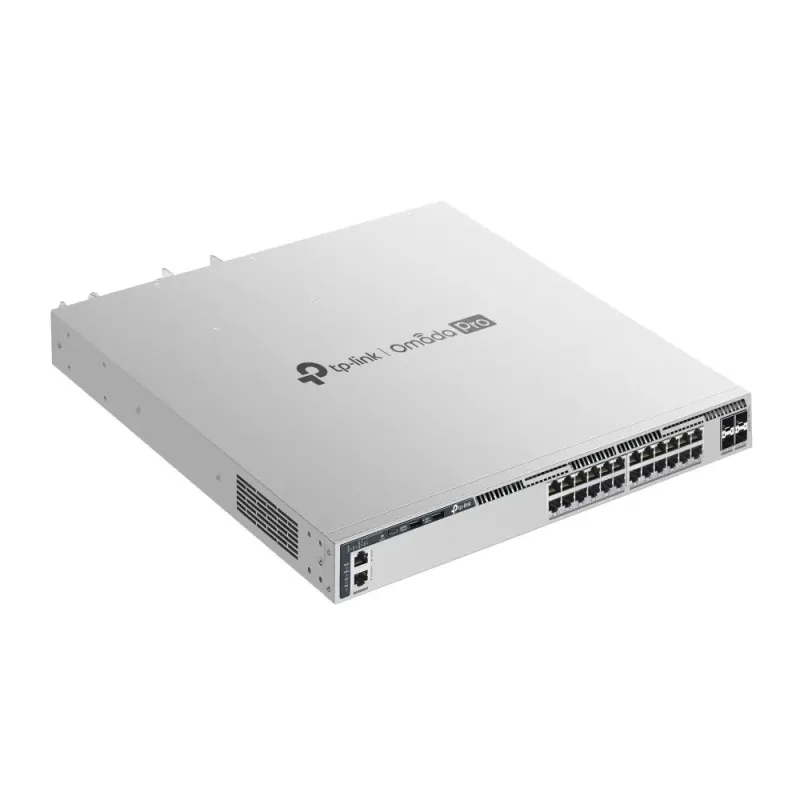

TP-Link S6500-24M4Y Omada Pro 24-Port Stackable L3 Managed Multi-Gigabit Switch, 24 Port 2.5Gbps, 4 Port SFP28 ความเร็ว 25Gbps, รองรับ Static/Dynamic Routing OSPF, Stackable, VLAN 802.1q, รองรับการ Managed ผ่าน Omada Pro |
HARDWARE FEATURES |
|

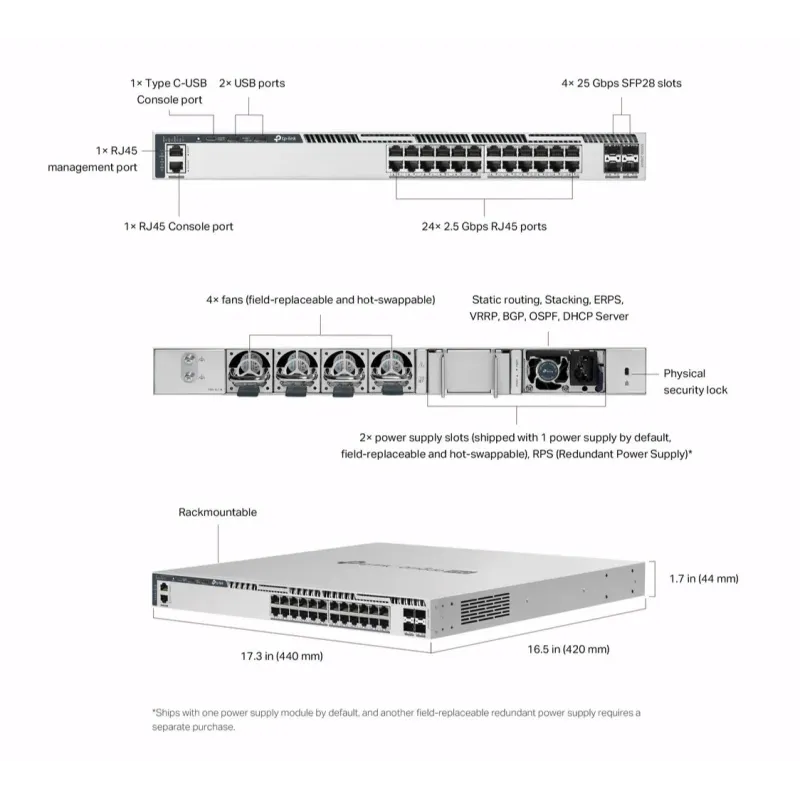

| Interface | • 24 × 100Mbps/1Gbps/2.5Gbps RJ45 Ports • 4× 1/10/25G SFP28 Slots** • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |

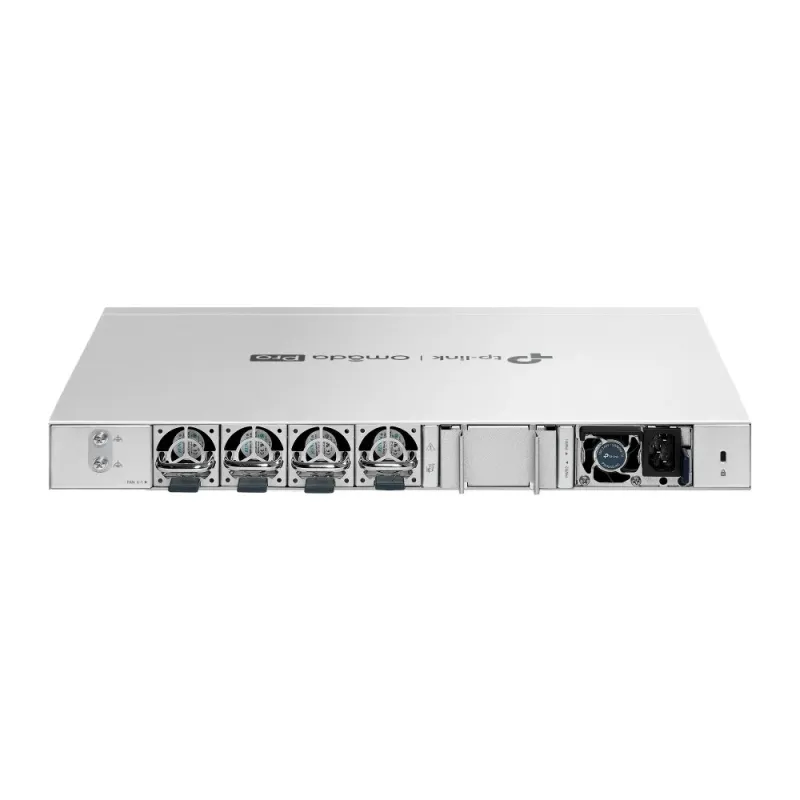

| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz) *Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| Dimensions ( W x D x H ) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | 72.5 W (110 V/60 Hz) |
| Max Heat Dissipation | 247.2 BTU/hr (110 V/60 Hz) |
PERFORMANCE |
|
| Switching Capacity | 320 Gbps per Unit |
| Stacking | • Stacking Number: 12 (standalone mode) • Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)*** • Stacking Bandwidth: Up to 200 Gbps (4 stacking ports) |
| Packet Forwarding Rate | 238.1 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
SOFTWARE FEATURES |
|
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP/ToS Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) • WRED profile: 16 |
| L3 Features | • L3 Interface: 256 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 6,100 entries • IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries) • IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries) • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 12,288 dynamic entries • ND: 12,288 • DHCP Server: Max IP Pools: 64, Max Leases: 8000 • DHCPv4/v6 Relay • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance • OSPFv2 - OSPF Process: 16 - Graceful Restart - OSPFv2 BFD • OSPFv3 - OSPFv3 Instance: 1 - OSPFv3 BFD • RIPv1/v2 • RIPng • IS-ISv4/v6 • IS-IS BFD • BGPv4 • PIM-SM/PIM-DM/PIM-SSM - IP Multicast Route Entries: 1024 • IGMP: Version v1/v2/v3, Max 2,048 multicast groups • BFD: 16 template numbers, 8 session numbers • PBR • uRPF |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Groups: 4K (IGMP Snooping & MLD Snooping & MVR) - Fast Leave - Static Multicast Groups - Multicast Filtering - IGMP Snooping Authentication |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • DoS Defend • IP-MAC Binding -1,024 Entries - DHCP Snooping - ARP Scanning • IPv6-MAC Binding -1,024 Entries - DHCPv6 Snooping - ND Snooping • ARP Inspection • ND Detection • IPv4 Source Guard • IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control • MACSec (gcm-aes-128, gcm-aes-256) • Secure boot • RADSEC |
MANAGEMENT |
|
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management | • Omada Pro Cloud-Based Controller • Omada Pro Hardware Controller • Omada Pro Software Controller |
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
OTHERS |
|
| Package Contents | • S6500-24M4Y Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Warranty |
ประกัน Lifetime ศูนย์ TP-Link |
