S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch
  • S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch

S6500-48M6Y TP-Link Omada Pro 48-Port L3 Managed Multi-Gig Switch

TP-Link

TP-Link S6500-48M6Y Omada Pro 48-Port Stackable L3 Managed Multi-Gigabit Switch, 48 Port 2.5Gbps, 6 Port SFP28 25Gbps, Static/Dynamic Routing OSPF, Stackable, VLAN 802.1q, Managed ผ่าน Omada Pro

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

Rating:
(0)


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

Click ขอใบเสนอราคา

close

ขอใบเสนอราคา



รายละเอียด

SDN 10-Gigabit L3 Stackable Managed Switch Datasheet



TP-Link S6500-48M6Y

Omada Pro 48-Port 2.5G Stackable L3 Managed Switch with 6 25G Slots

  • 48× 2.5 Gbps RJ45 ports and 6× 25 Gbps SFP28 slots
  • Physical stacking for built-in redundancy and performance
  • L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
  • Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
  • Highly Available with two internal fixed power supplies*, VRRP, ERPS, and BFD
  • Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
  • Centralized cloud management via the web or the Omada app



TP-Link S6500-48M6Y Product Specification

Overview

TP-Link S6500-48M6Y Omada Pro 48-Port Stackable L3 Managed Multi-Gigabit Switch, 48 Port 2.5Gbps, 6 Port SFP28 25Gbps, รองรับ Static/Dynamic Routing OSPF, Stackable, VLAN 802.1q, รองรับการ Managed ผ่าน Omada Pro

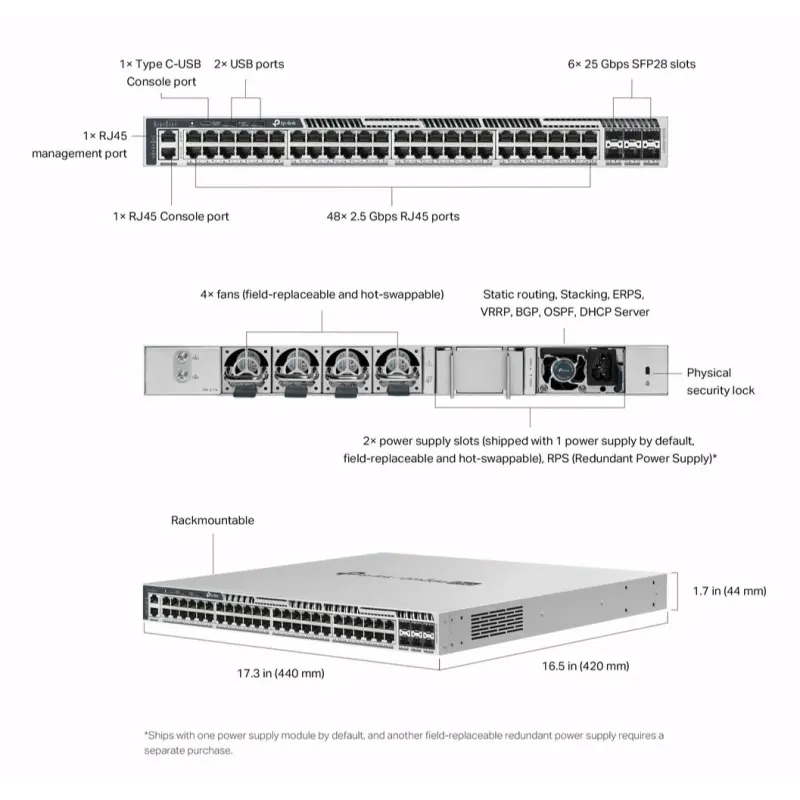

HARDWARE FEATURES

Interface • 48× 100Mbps/1Gbps/2.5Gbps RJ45 Ports
• 6× 1/10/25G SFP28 Slots**
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Fan Quantity Four Field-replaceable and Hot-swappable Fans
Power Supply Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)

*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions ( W x D x H ) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting Rackmountable
Max Power Consumption 114.2 W (220 V/50 Hz)
Max Heat Dissipation 389.4 BTU/hr (220 V/50 Hz)

PERFORMANCE

Switching Capacity 540 Gbps per Unit
Stacking • Stacking Number: 12 (standalone mode)
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)***
• Stacking Bandwidth: Up to 300 Gbps (6 stacking ports)
Packet Forwarding Rate 401.7 Mpps
MAC Address Table 32 K
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP/ToS Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
• WRED profile: 16
L3 Features • L3 Interface: 256 (IPv4,IPv6)
• Static Route: 1,024 IPv4, 512 IPv6
• Host Route Table: Max 6,100 entries
• IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries)
• IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries)
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 12,288 dynamic entries
• ND: 12,288
• DHCP Server: Max IP Pools: 64, Max Leases: 8000
• DHCPv4/v6 Relay
• VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
• OSPFv2
- OSPF Process: 16
- Graceful Restart
- OSPFv2 BFD
• OSPFv3
- OSPFv3 Instance: 1
- OSPFv3 BFD
• RIPv1/v2
• RIPng
• IS-ISv4/v6
• IS-IS BFD
• BGPv4
• PIM-SM/PIM-DM/PIM-SSM
- IP Multicast Route Entries: 1024
• IGMP: Version v1/v2/v3, Max 2,048 multicast groups
• BFD: 16 template numbers, 8 session numbers
• PBR
• uRPF
L2 and L2+ Features • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
- IGMP Snooping
- MLD Snooping
- Multicast VLAN Registration (MVR)
- Max Multicast Groups: 4K (IGMP Snooping & MLD Snooping & MVR)
- Fast Leave
- Static Multicast Groups
- Multicast Filtering
- IGMP Snooping Authentication
Advanced Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Defend
• DoS Defend
• IP-MAC Binding
-1,024 Entries
- DHCP Snooping
- ARP Scanning
• IPv6-MAC Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Snooping
• ARP Inspection
• ND Detection
• IPv4 Source Guard
• IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
• MACSec (gcm-aes-128, gcm-aes-256)
• Secure boot
• RADSEC

MANAGEMENT

Omada App Yes, through Omada Pro Controller
Centralized Management • Omada Pro Cloud-Based Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE 802.3az Energy Efficient Ethernet (EEE)

OTHERS

Package Contents • S6500-48M6Y Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Warranty

ประกัน  Lifetime ศูนย์ TP-Link

รายละเอียดสินค้า

ข้อมูลสินค้า

ประเภท Switch
Ethenet Switch
Layer Switch
L2/L3 Managed
ความเร็ว Port Lan
2.5Gbps (Multi-Gigabit)
จำนวน Port Lan
48 Port
