Product Specification
|
| Overview |

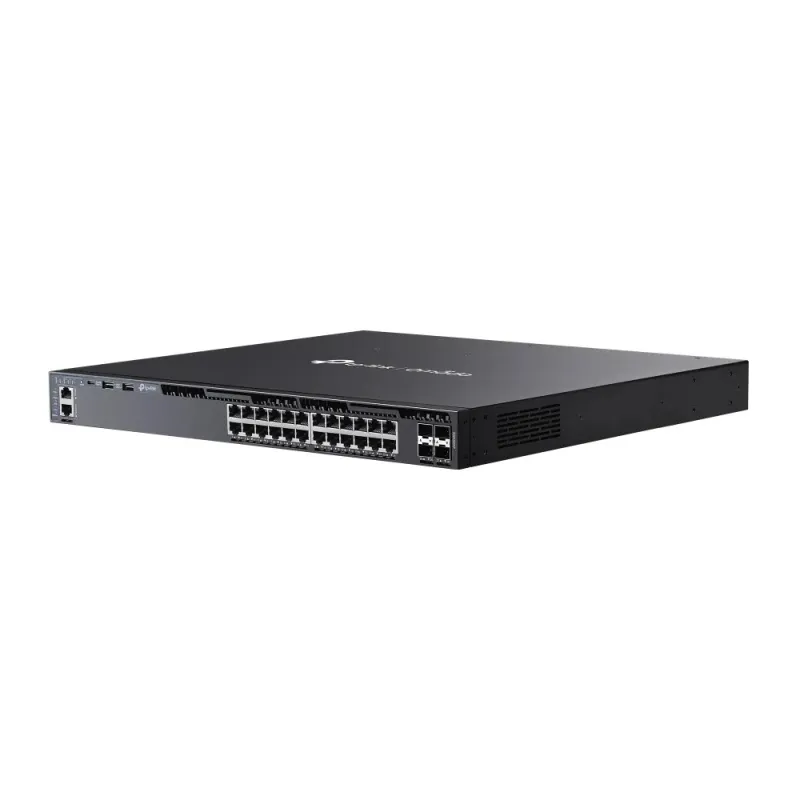

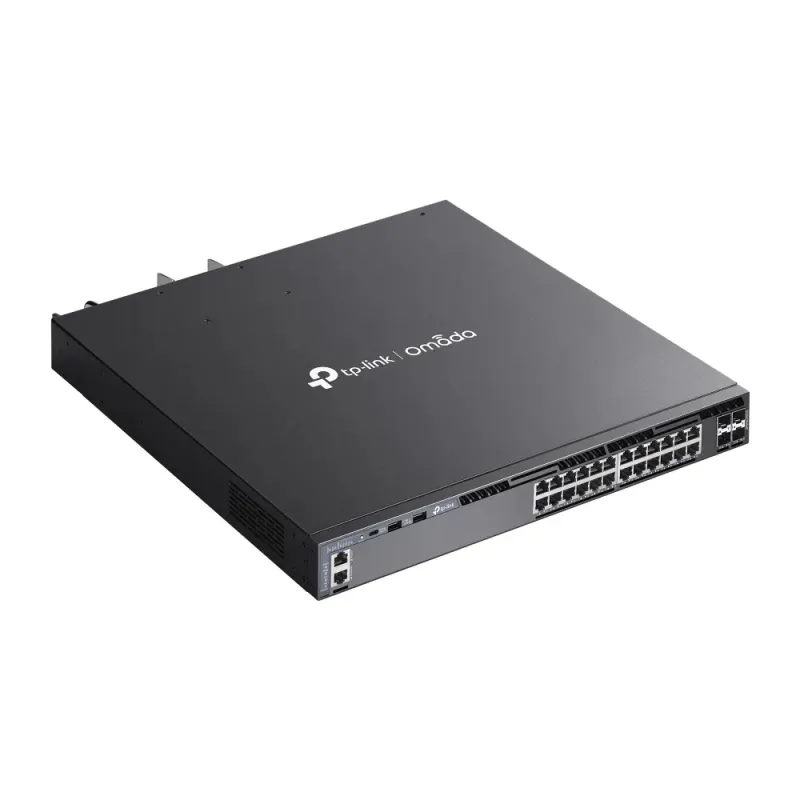

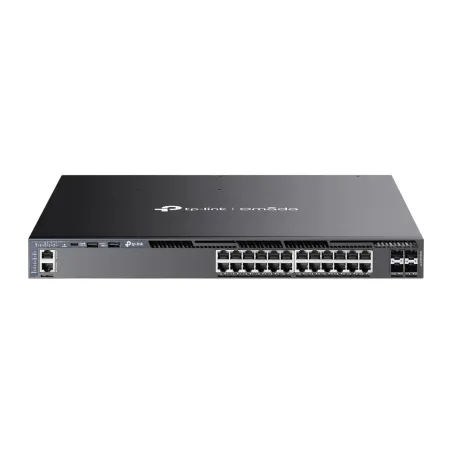

TP-LINK SG6428XHP Omada 24-Port Gigabit Stackable L3-Managed PoE+ Switch, 4 Port SFP+ 10Gbps
จ่ายไฟ POE มาตรฐาน 802.3at 24 Port กำลังไฟสูงสุดรวม 720W
รองรับ SVI, Static Routing, Dynamic Routing RIP, OSPF, ECMP, VRRP, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X
|
HARDWARE FEATURES
|
| Interface |
24× 10/100/1000 Mbps PoE+ RJ45 Ports
4× 10G SFP+ Slots
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port |

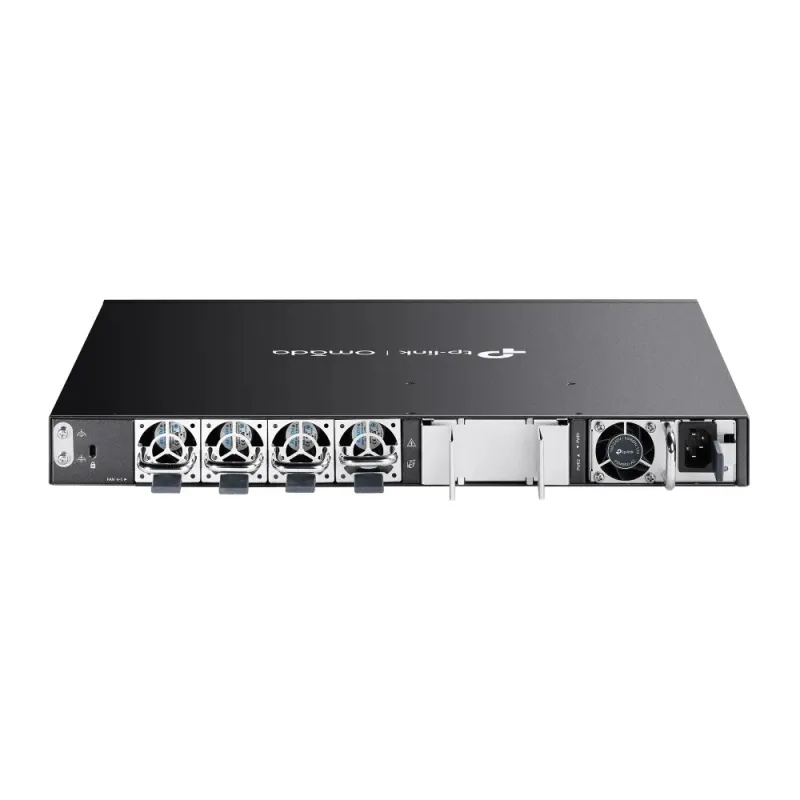

| Fan Quantity |
Four Field-replaceable and Hot-swappable Fans |
| Power Supply |
Two Field-replaceable and Hot-swappable Power Supply Modules** (100-240 VAC, 50/60 Hz)**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE Ports (RJ45) |
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• PoE Power Budget: up to 720 W**The total PoE budget varies with the power supply modules.
|
| Dimensions ( W x D x H ) |
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting |
Rackmountable |
| Max Power Consumption |
• 42.9 W (110 V/60 Hz) (With no PD connected)
• 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
|
| Max Heat Dissipation |
• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
|
PERFORMANCE
|
| Switching Capacity |
128 Gbps per Unit |
| Stacking |
• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
|
| Packet Forwarding Rate |
95.2 Mpps |
| MAC Address Table |
32 K |
| Packet Buffer Memory |
3 MB |
| Jumbo Frame |
9 KB |
SOFTWARE FEATURES
|
| Quality of Service |
• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit - Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
|
| L3 Features |
• IP Interfaces:- IPv4: Max 256, IPv6: Max 256
• Static Routing- Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP• DHCP Server:- Max 8K IP Pools- Max 1,000 Manual Binding Entries
• DHCP Relay:- Relayed Interface- Relayed VLAN
|
| L2 and L2+ Features |
• Link Aggregation• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS• Mirroring• RSPAN
• MAC Address Table• PIM-DM (IPv4)
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
|
| Advanced Features |
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
|
| VLAN |
• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLAN
|
| Security |
• Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC
-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
|
MANAGEMENT
|
| Omada App |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
|
| Cloud Access |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features |
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
|
OTHERS
|
| Package Contents |
• SG6428XHP Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
|
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
• Operating Temperature: 0-45 ℃ (32-113 ℉);
• Storage Temperature: -40-70 ℃ (-40-158 ℉)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
|
|
รับประกัน
|
Limited lifetime
|
