Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)
Ports

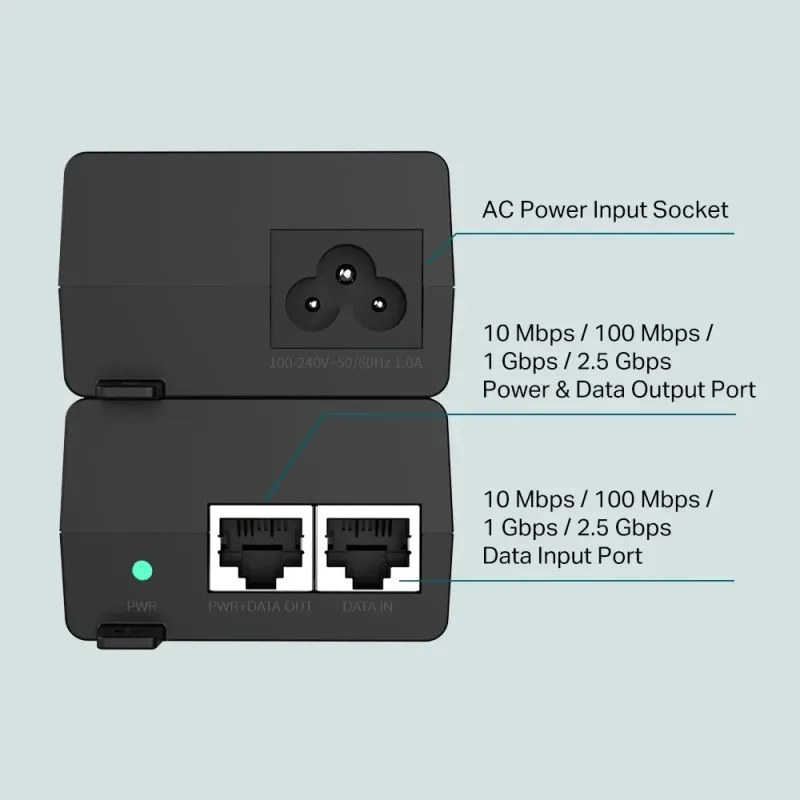

• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
• Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
