TL-SM331T(UN) V1 Datasheeet

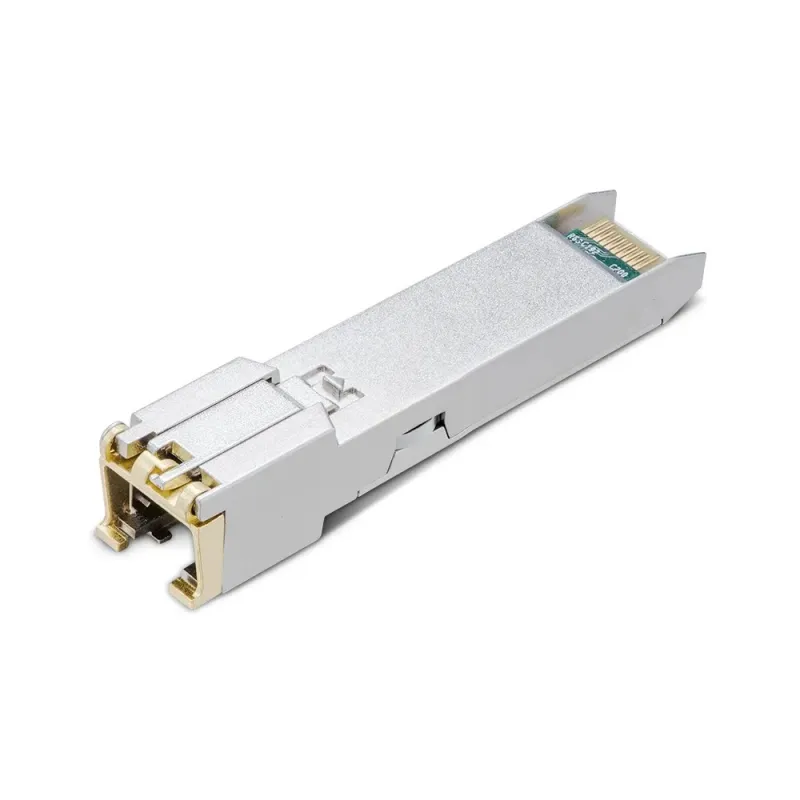

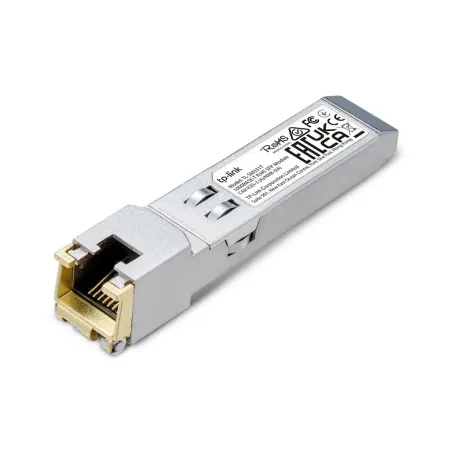

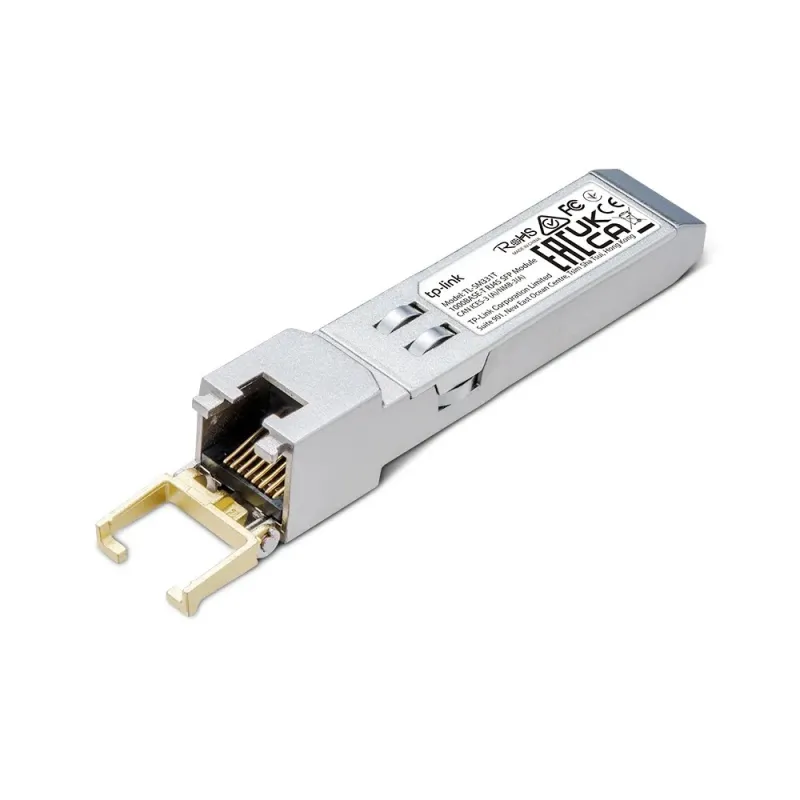

TP-Link TL-SM331T
1000BASE-T RJ45 SFP Module
- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
TP-Link TL-SM331T Product Specification |
Overview | TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module แปลงเป็น Port LAN RJ45 ความเร็ว 1Gbps |
PACKAGE CONTENTS |
Package Contents | • 1000BASE-T RJ45 SFP Module TL-SM331T • Installation Guide |
HARDWARE FEATURES |
Hot Swappable | Yes |
Transceiver |
Standards and Protocols | IEEE 802.3-2002 |
Power Supply | 3.3V |
Max. Cable Length | 100m* (Cat 5e or above) |
Data Rate | 1.25 Gbps |
Port Type | 1× 1000 Mbps RJ45 Port |
Safety & Emission | FCC, CE |
Environment | Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉) |
รับประกัน | 1 ปี |
