Product Specification |
Overview |

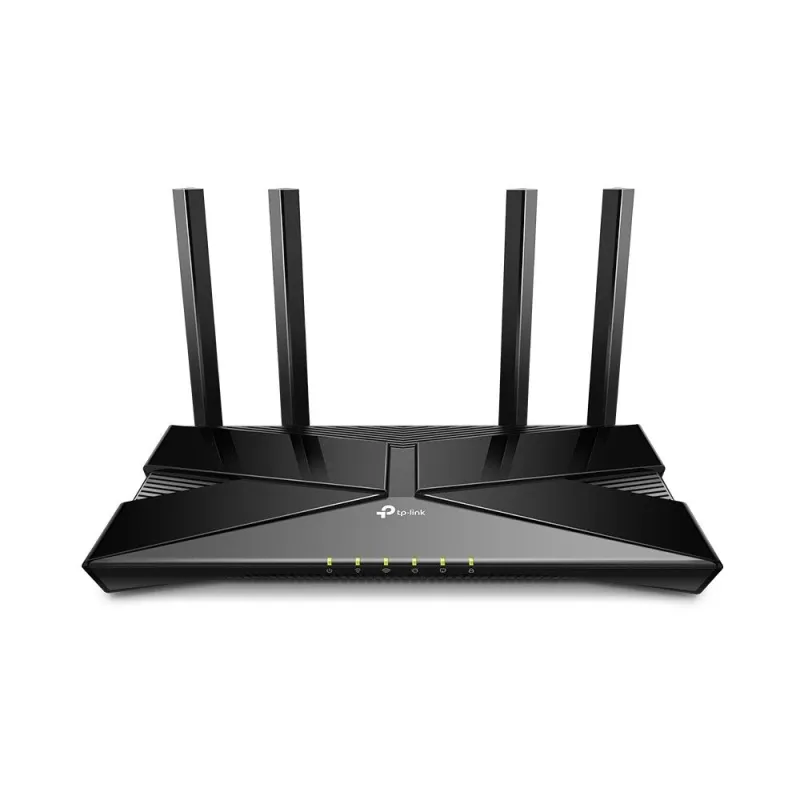

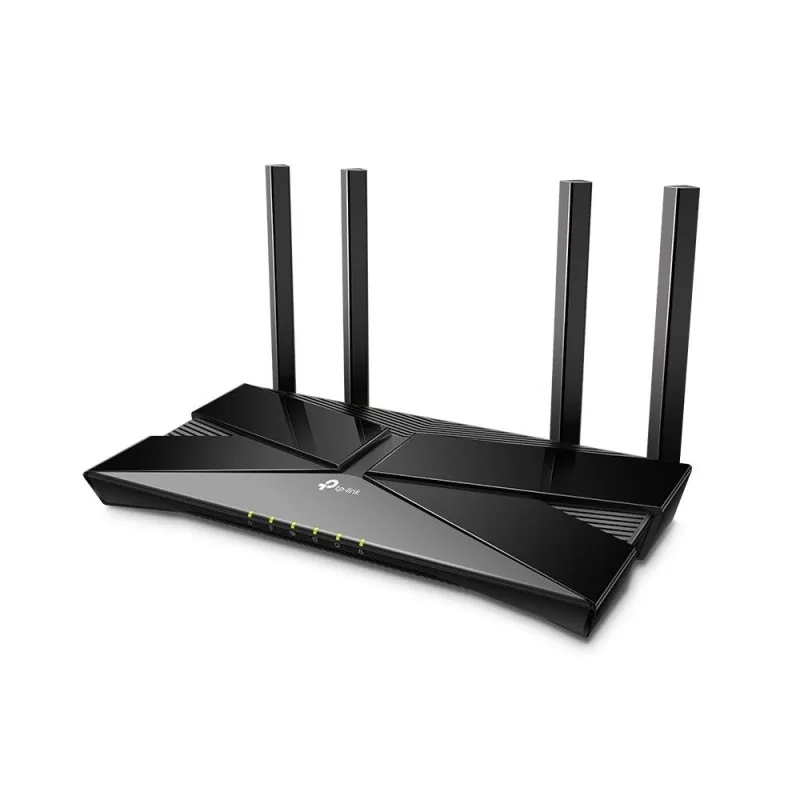

TP-Link Archer AX23 AX1800 Dual-Band Gigabit Wi-Fi 6 Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น Beamforming, สามารถ Moniter ผ่าน App Techer ได้
|
WIRELESS |
|---|
Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
|---|
WiFi Speeds | AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax) |
|---|
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
|---|
WiFi Capacity | High Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
|---|
Working Modes | Router Mode
Access Point Mode |
|---|
HARDWARE |
|---|
Processor | Dual-Core CPU |
|---|
Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports |
|---|
Buttons | WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button |
|---|
Power | 12 V 1 A |
|---|
SECURITY |
|---|
WiFi Encryption | WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
|---|
Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
|---|
Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
|---|
VPN Server | OpenVPN
PPTP |
|---|
SOFTWARE |
|---|
Protocols | IPv4
IPv6 |
|---|
OneMesh™ | OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products> |
|---|
Parental Controls | URL Filtering
Time Controls |
|---|
WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
|---|
Quality of Service | QoS by Device |
|---|
Cloud Service | Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
|---|
NAT Forwarding | Port Forwarding
Port Triggering
DMZ
UPnP |
|---|
IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
|---|
DHCP | Address Reservation
DHCP Client List
Server |
|---|
DDNS | TP-Link
NO-IP
DynDNS |
|---|
Management | Tether App
Webpage
Check Web Emulator> |
|---|
PHYSICAL |
|---|
Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm) |
|---|
Package Contents | Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
|---|
OTHER |
|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
|---|
Certifications | FCC, CE, RoHS |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
TEST DATA |
|---|
WiFi Transmission Power | CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|
WiFi Reception Sensitivity | EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm |
|---|
รับประกัน | Life Time |
| |
