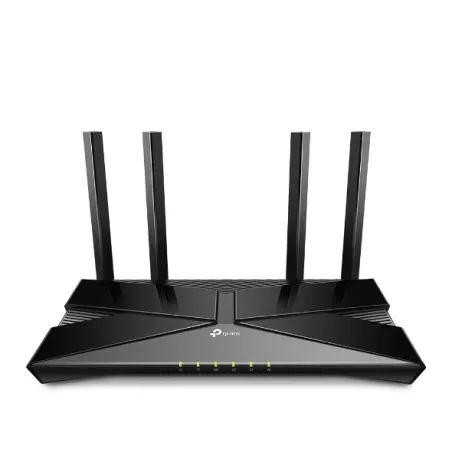

TP-Link Archer AX53 Next-Gen Gigabit Wi-Fi 6 Speed AX3000 Router

Product Specification

Overview

TP-Link Archer AX53 Next-Gen Gigabit Wi-Fi 6 Speed AX3000 Router

พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น รองรับ Beamforming , สามารถตั้งค่าและ Moniter ผ่าน App Techer ได้

WIRELESS

Standards

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

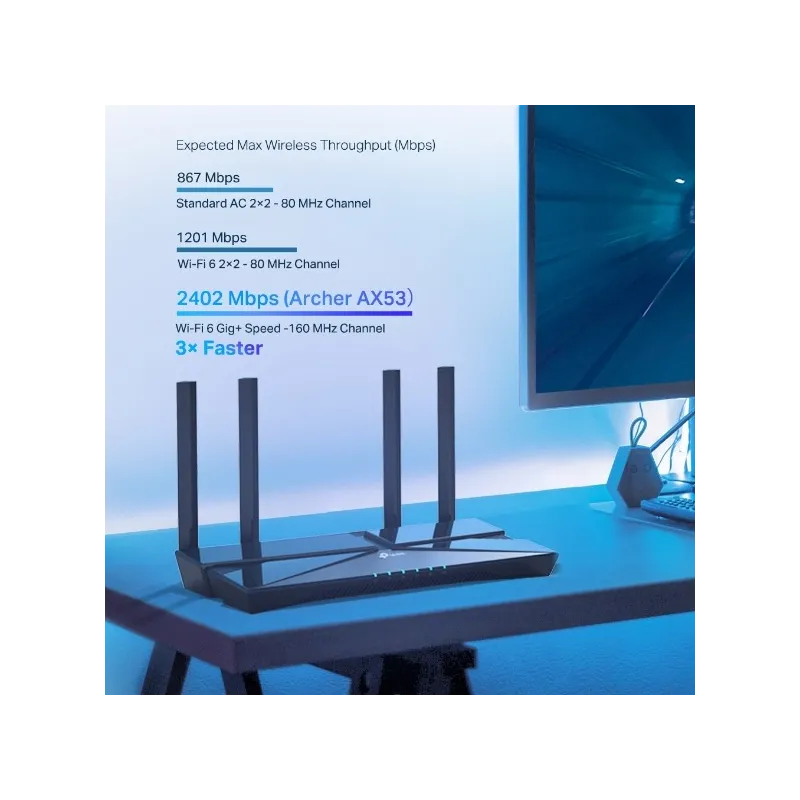

AX30005 GHz: 2402 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

2-3 Bedroom Houses

4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage

WiFi Capacity

High

Dual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion4 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

HARDWARE

Ethernet Ports

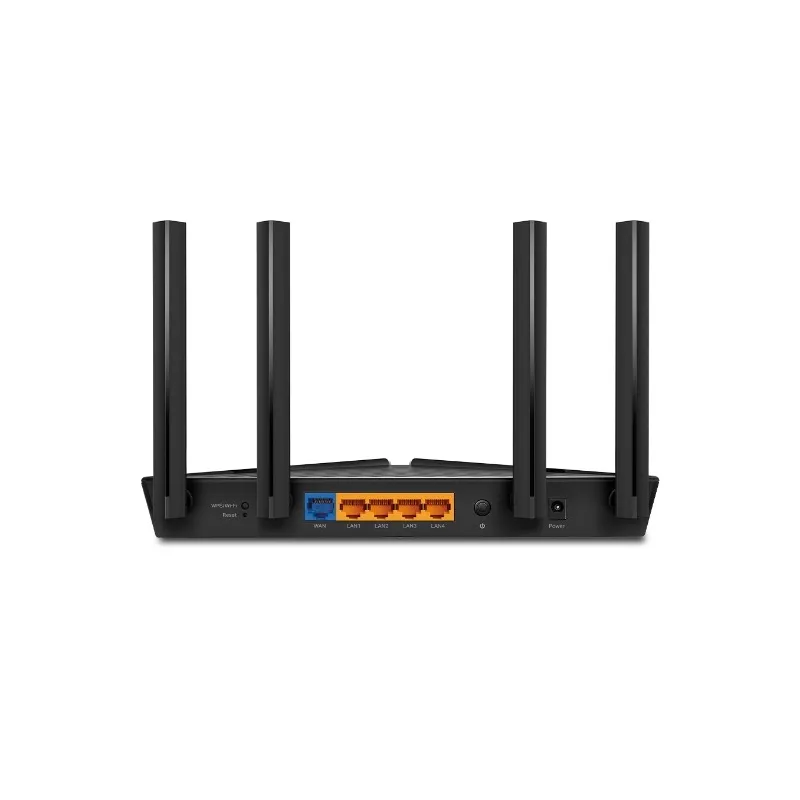

1× Gigabit WAN Port4× Gigabit LAN Ports

Buttons

WPS/Wi-Fi ButtonPower On/Off ButtonLED On/Off ButtonReset Button

Power

12 V 2 A

SECURITY

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeShield SecurityReal-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

SOFTWARE

Protocols

IPv4IPv6

EasyMesh

Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Parental Controls

HomeShield Parental Controls

Custom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management

Tether AppWebpage

PHYSICAL

Dimensions (W×D×H)

10.2 × 5.3 × 1.6 in(260.2 × 135 × 41.6 mm)

Package Contents

Wireless Router Archer AX53Power AdapterRJ45 Ethernet CableQuick Installation Guide

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)

WiFi Reception Sensitivity

2.4GHz
:11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dB
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-63dBm
5GHz:
11ac VHT20_MCS0:-97dBm
11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm
11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-97dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-94dBm
11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm
11ax HE80_MCS11:-61dBm
11ax HE160_MCS0:-87dBm
11ax HE160_MCS11:-58dBm

รับประกัน

Life Time
