WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
|
|
Frequency
|
5GHz and 2.4GHz
|
|
Signal Rate
|
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
|
|
Reception Sensitivity
|
5GHz:
11a 54Mbps: -74dBm
11ac HT20: -67dBm
11ac HT40: -63dBm
11ac HT80: -59dBm
11n HT20: -71dBm
11n HT40: -69dBm
2.4GHz:
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm
|
|
Transmit Power
|
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
|
|
Wireless Functions
|
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
|
|
Wireless Security
|
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
|
|
SOFTWARE FEATURES
|
|
Quality of Service
|
WMM, Bandwidth Control
|
|
WAN Type
|
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access)
|
|
Management
|
Access Control
Local Management
Remote Management
|
|
DHCP
|
Server, Client, DHCP Client List,
Address Reservation
|
|
Port Forwarding
|
Virtual Server, Port Triggering, UPnP, DMZ
|
|
Dynamic DNS
|
DynDns, Comexe, NO-IP
|
|
VPN Pass-Through
|
PPTP, L2TP, IPSec
|
|
Access Control
|
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
|
|
Firewall Security
|
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
|
|
Protocols
|
Supports IPv4 and IPv6
|
|
USB Sharing
|
Support Samba(Storage)/FTP Server/Media Server/Printer Server
|
|
Guest Network
|
2.4GHz guest network × 1
5GHz guest network × 1
|
|
OTHERS
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|

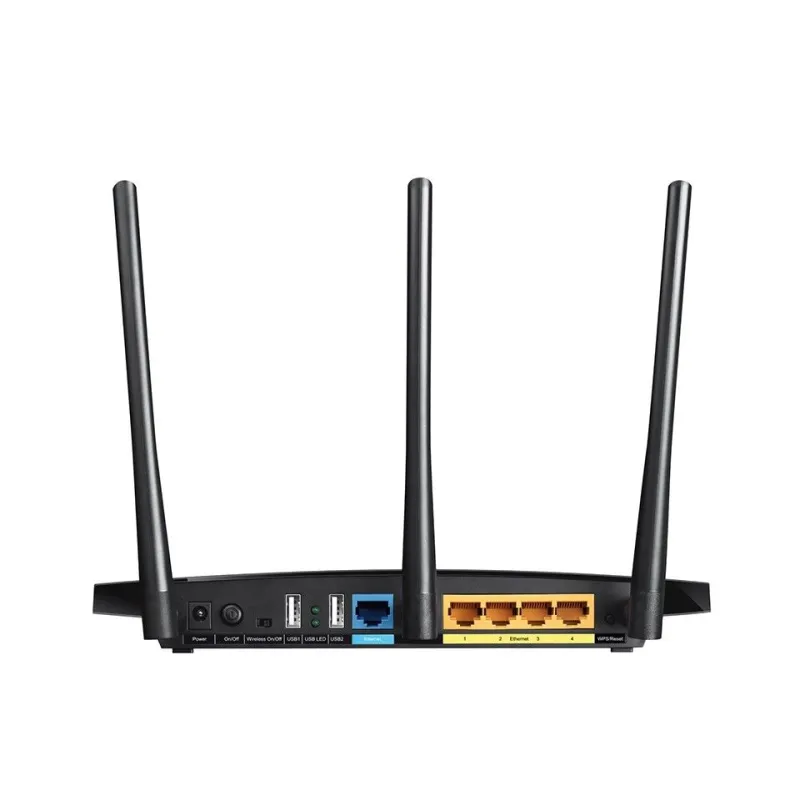

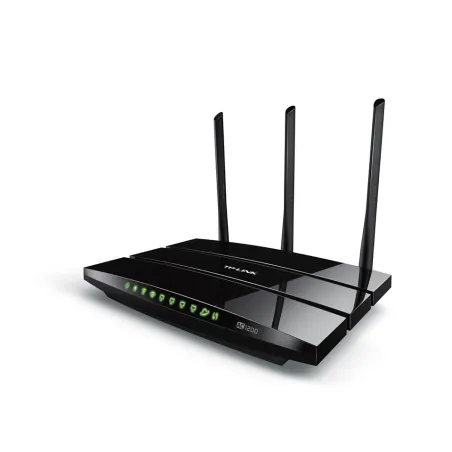

AC1200 Wireless Dual Band Gigabit Router Archer C5
2 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
|
|
Environment
|
Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
