Product Specification |
Overview | TP-Link Archer C64 AC1200 Wireless MU-MIMO WiFi Router แบบ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุด 1200Mbps Port Gigabit เสา 4 ต้น |
WIRELESS |
|---|
Standards | Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
|---|
WiFi Speeds | AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n) |
|---|
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
|---|
WiFi Capacity | Medium Dual-Band
Allocate devices to different bands for optimal performance

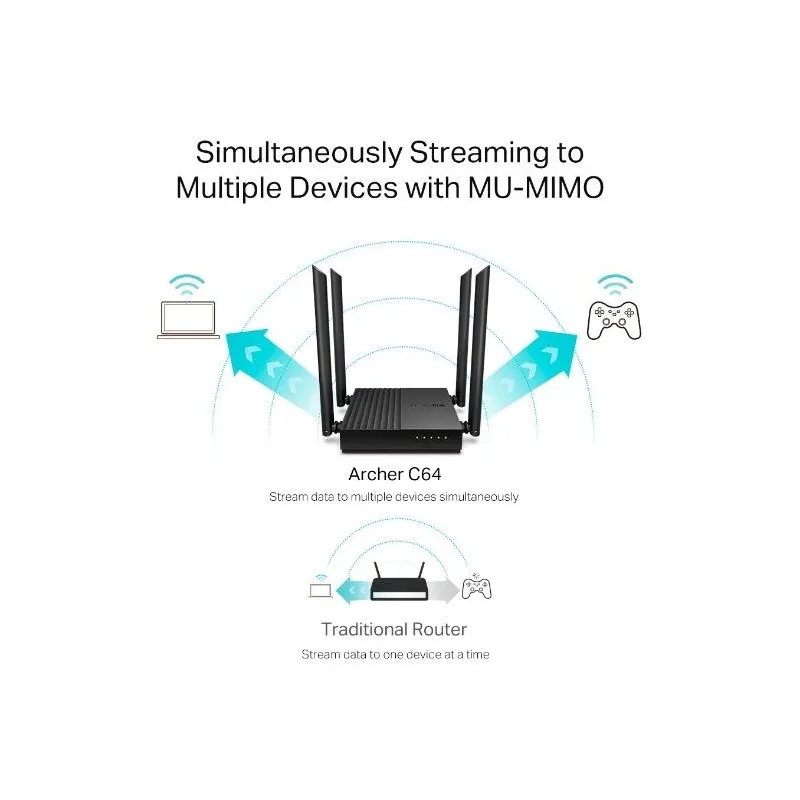

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation |
|---|
Working Modes | Router Mode
Access Point Mode |
|---|
HARDWARE |
|---|
Processor | 1.2 GHz CPU |
|---|

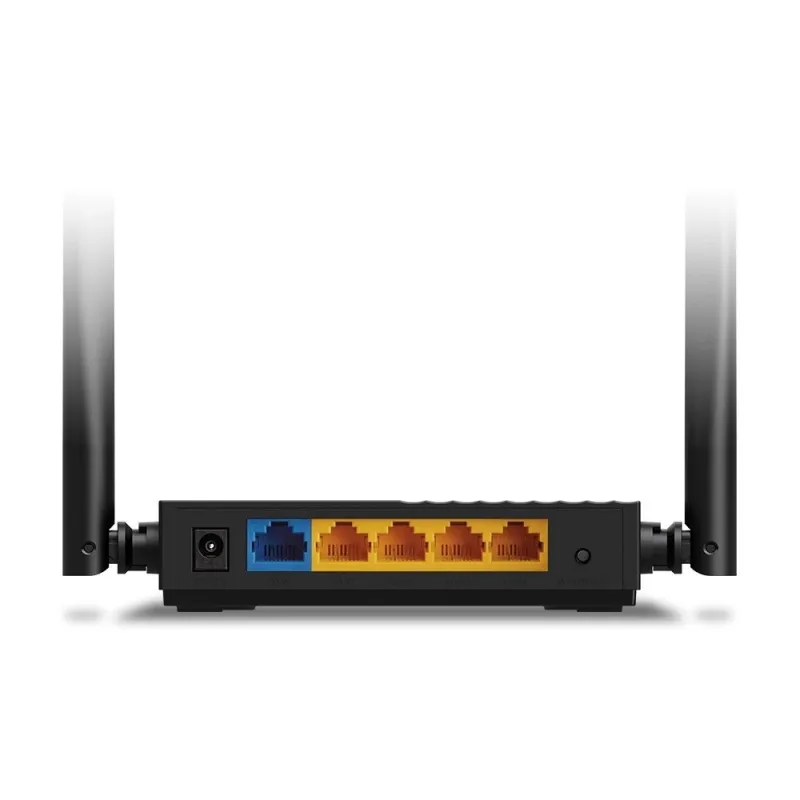

Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports |
|---|
Buttons | WPS/Reset Button |
|---|
Power | 12V = 1A |
|---|
SECURITY |
|---|
WiFi Encryption | WPA/WPA2, WPA-PSK/WPA2-PSK/WPA3-SAE encryptions |
|---|
Network Security | SPI Firewall, IP and MAC Address Binding |
|---|
Guest Network | 2.4 GHz Guest Network
5 GHz Guest Network |
|---|
SOFTWARE |
|---|
Protocols | IPv4
IPv6 |
|---|
Parental Controls | URL Filtering
Time Controls |
|---|
WAN Types | Dynamic IP
Static IP
PPPoE(Dual Access)
PPTP(Dual Access)
L2TP(Dual Access) |
|---|
Quality of Service | QoS by Device |
|---|
Cloud Service | OTA Firmware Upgrade
TP-Link ID
DDNS |
|---|
NAT Forwarding | Port Forwarding
Port Triggering
UPnP
DMZ |
|---|
IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
|---|
DHCP | Server
DHCP Client List
Address Reservation |
|---|
DDNS | TP-Link
NO-IP
DynDNS |
|---|
Management | Tether App
Webpage
|
|---|
PHYSICAL |
|---|
Dimensions (W×D×H) | 4.7 × 4.7 × 1.1 in
(120 × 120 × 27.9 mm) |
|---|
Package Contents | Wireless Router Archer C64
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
|---|
OTHER |
|---|
System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
|---|
Certifications | CE, RoHS |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
TEST DATA |
|---|
WiFi Transmission Power | CE:
<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5 GHz) |
|---|
WiFi Reception Sensitivity | 5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
2.4 GHz:
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT20 MCS7:-77dBm
11n HT40 MCS7:-74dBm
11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS9:-68dBm |
|---|
รับประกัน | Limited Lifetime |
| |
