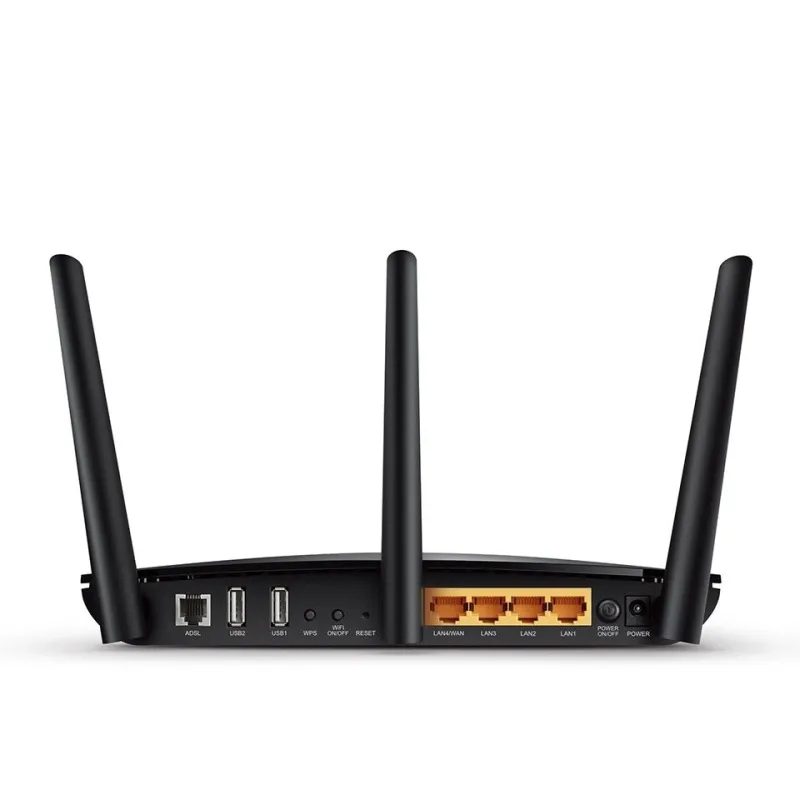

Interface | 1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
2 USB 2.0 Ports |
|---|
Button | 1 Power On/Off Button
1 Wi-Fi On/Off Button
1 WPS Button
1 RESET Button |
|---|
Power Supply | 12VDC/2.5A |
|---|
IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
|---|
ADSL Standards | Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
|---|
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis) |
|---|
ADSL2+ Standards | ITU-T G.992.5 |
|---|
Dimensions ( W x D x H ) | 9.0 x 6.3 x 1.5 in. (229 x 160 x 37mm) |
|---|
Antenna Type | Detachable dual band external antennas |
|---|
Antenna Gain | 2dBi for 2.4GHz and 3dBi for 5GHz |
|---|
WIRELESS FEATURES |
|---|
Wireless Standards | IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz |
|---|
Wireless Speeds | 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps |
|---|
Frequency | 2.4GHz and 5GHz |
|---|
Transmit Power | <20dBm(EIRP) |
|---|
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|---|
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
|---|
Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | ATM QoS, Bandwidth Control |
|---|
Security | NAT Firewall, Access Control, MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death
IP and MAC Address Binding |
|---|
IPv6 | IPv6 and IPv4 dual stack |
|---|
Operating Modes | ADSL Modem Router, Wireless Router |
|---|
Management | Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
|---|
DHCP | Server, Client, DHCP Client List,
Address Reservation, DHCP relay |
|---|
Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP |
|---|
Dynamic DNS | DynDns, NO-IP |
|---|
VPN | PPTP, L2TP, IPSec Passthrough |
|---|
ATM Features | ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MERIPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs |
|---|
Advanced Functions | Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3 |
|---|
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
|---|
Guest Network | 2.4GHz guest network × 1
5GHz guest network × 1 |
|---|
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
|---|
OTHERS |
|---|
Certification | CE, FCC, RCM, RoHS |
|---|
Package Contents | AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter |
|---|
System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
