TP-Link Archer MR200 4G LTE เราเตอร์ใส่ซิม รองรับเครือข่าย 4G LTE ทุกเครือข่าย True, DTAC และ AIS กระจายสัญญาณ Wifi มาตรฐาน AC เปลี่ยนเสารับสัญญาณ 4G ได้
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
TP-Link Archer MR200 Datasheet
TP-Link Archer MR200 คู่มือติดตั้งภาษาไทย
Product Specification | |
Overview | TP-Link Archer MR200 อุปกรณ์ Wireless Router 4G LTE แบบใส่ Sim รองรับเครือข่าย 4G LTE ทุกเครือข่าย True, DTAC และ AIS กระจายสัญญาณ Wifi มาตรฐาน AC |
HARDWARE FEATURES | |
---|---|

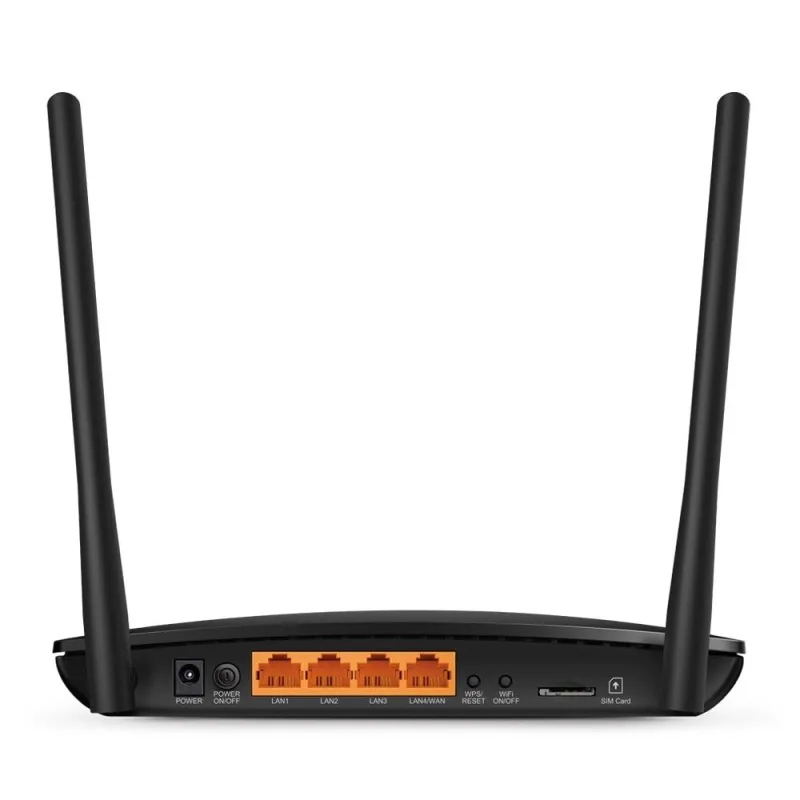

Interface | 3× 10/100Mbps LAN Ports |
Button | WPS/RESET Button, Wi-Fi ON/OFF Button |
External Power Supply | 12V/1A |
Dimensions ( W x D x H ) | 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) |
Antenna | 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz |
Reception Sensitivity | 5 GHz: |
Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) |
SOFTWARE FEATURES | |
Quality of Service | Prioritizes network traffic by device or application |
Operating Modes | 3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | Access Control, Local Management, Remote Management, reboot schedule |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP, TP-Link DDNS |
Access Control |
|
Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
VPN Server | PPTP VPN, OpenVPN |
OTHERS | |
Certification | CE, RoHS |

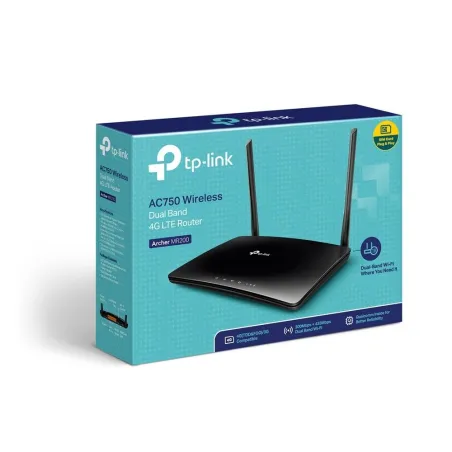

Package Contents | AC750 Wireless Dual Band 4G LTE Router Archer MR200 |
System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
รับประกัน | Life Time |
** ในกรณีที่ต้องการทำ Dynamic DNS ,Forward Port, VPN ให้ตรวจสอบกับผู้ให้บริการ เรื่อง IP Address ว่าเป็น IP Public หรือไม่ ในกรณีที่ไม่ได้เป็น IP Public จะไม่สามารถใช้งานได้ **สามารถใช้กับระบบ Cloud ได้ไม่มีปัญหาใดๆ |

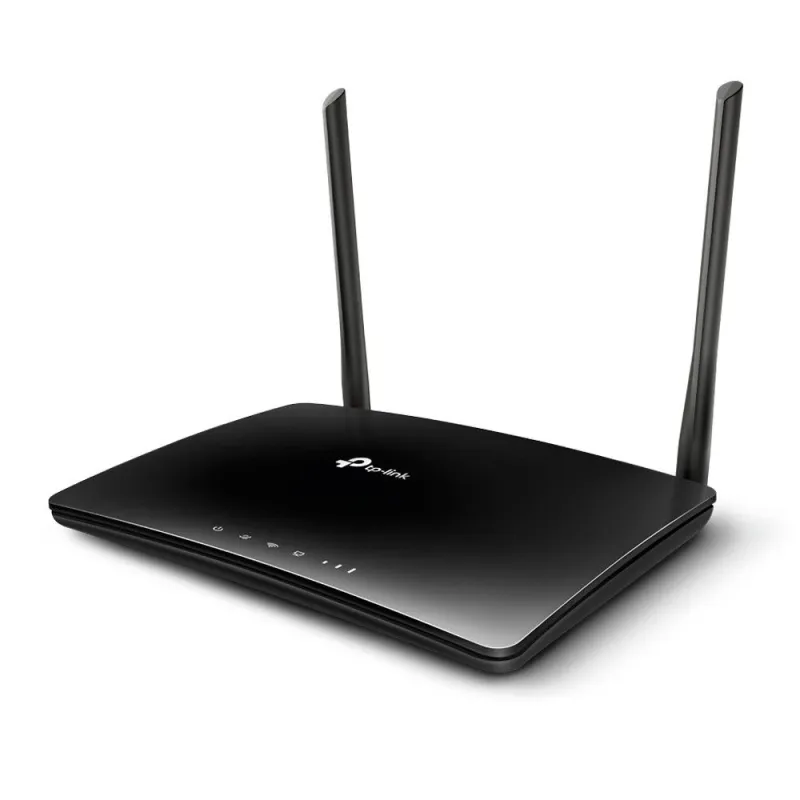

TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router แบบใส่ SIM
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
The Archer MR200 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Set up the Archer MR200 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
