Product Specification |
Overview | TP-Link Archer MR400 อุปกรณ์ Wireless Router 3G/4G LTE แบบใส่ Sim รองรับเครือข่าย 4G LTE ทุกเครือข่าย True, DTAC และ AIS ความเร็วสูงสุด 150Mbps กระจายสัญญาณ Wifi มาตรฐาน AC |
HARDWARE FEATURES |
|---|

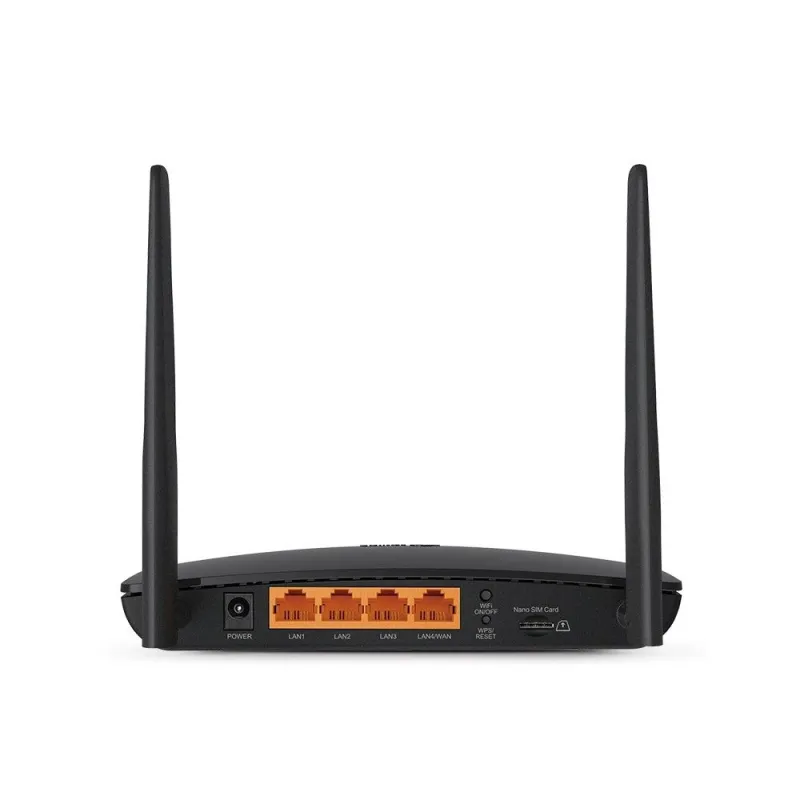

Interface | 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port,
1× Nano SIM Card Slot |
|---|
Button | WPS/RESET Button, Wi-Fi ON/OFF Button |
|---|
External Power Supply | 12V/1A |
|---|
Dimensions ( W x D x H ) | 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) |
|---|
Antenna | 2× Detachable External 4G LTE Antennas |
|---|
WIRELESS FEATURES |
|---|
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|
Frequency | 2.4 GHz and 5 GHz |
|---|
Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
|---|
Reception Sensitivity | 5 GHz:
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
2.4 GHz:
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
|---|
Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
|---|
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics |
|---|
WAN Failover | Yes |
|---|
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
|---|
Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz) |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Prioritizes network traffic by device or application |
|---|
Operating Modes | 3G/4G Router, Wireless Router |
|---|
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|---|
Management | Access Control, Local Management, Remote Management
reboot schedule |
|---|
DHCP | Server, Client, DHCP Client List, Address Reservation |
|---|
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
|---|
Dynamic DNS | DynDns, NO-IP |
|---|
VPN | PPTP VPN, OpenVPN |
|---|
Access Control | Parental Control, Local Management Control |
|---|
Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding |
|---|
Protocols | Supports IPv4 and IPv6 |
|---|
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
|---|
OTHERS |
|---|
Certification | CE, RoHS |
|---|
Package Contents | AC1200 Wireless Dual Band 4G LTE Router, Archer MR400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide |
|---|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Nano SIM Card
|
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | Life Time |
| ** ในกรณีที่ต้องการทำ Dynamic DNS ,Forward Port, VPN ให้ตรวจสอบกับผู้ให้บริการ เรื่อง IP Address ว่าเป็น IP Public หรือไม่ ในกรณีที่ไม่ได้เป็น IP Public จะไม่สามารถใช้งานได้ **สามารถใช้กับระบบ Cloud ได้ไม่มีปัญหาใดๆ |
