TP-Link Archer-MR600 Datasheet
TP-Link Archer-MR600 Quick Installation Guide
TP-Link Archer-MR600 User Guide
Product Specification | |

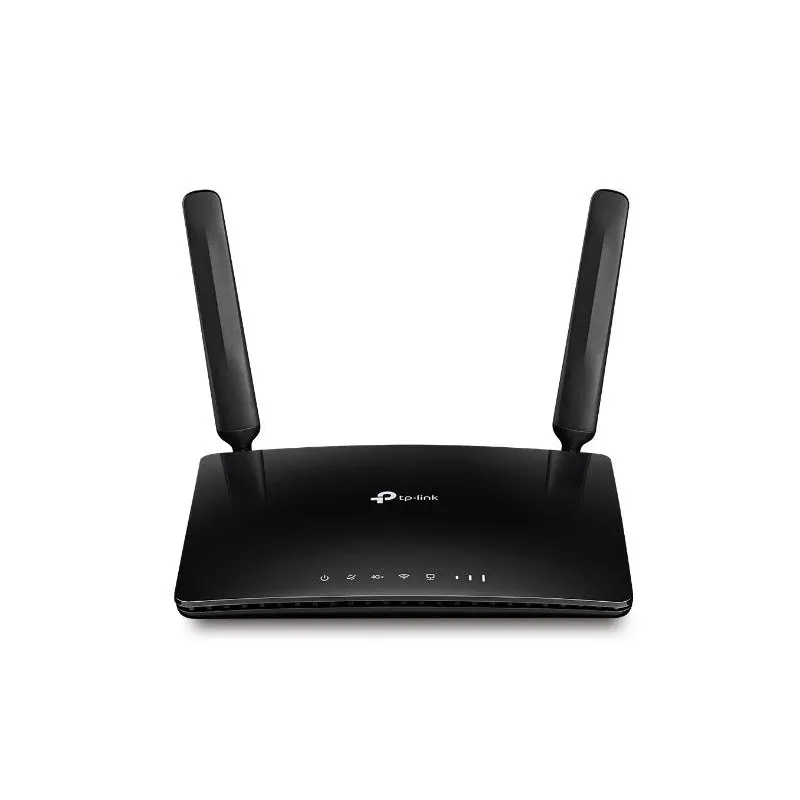

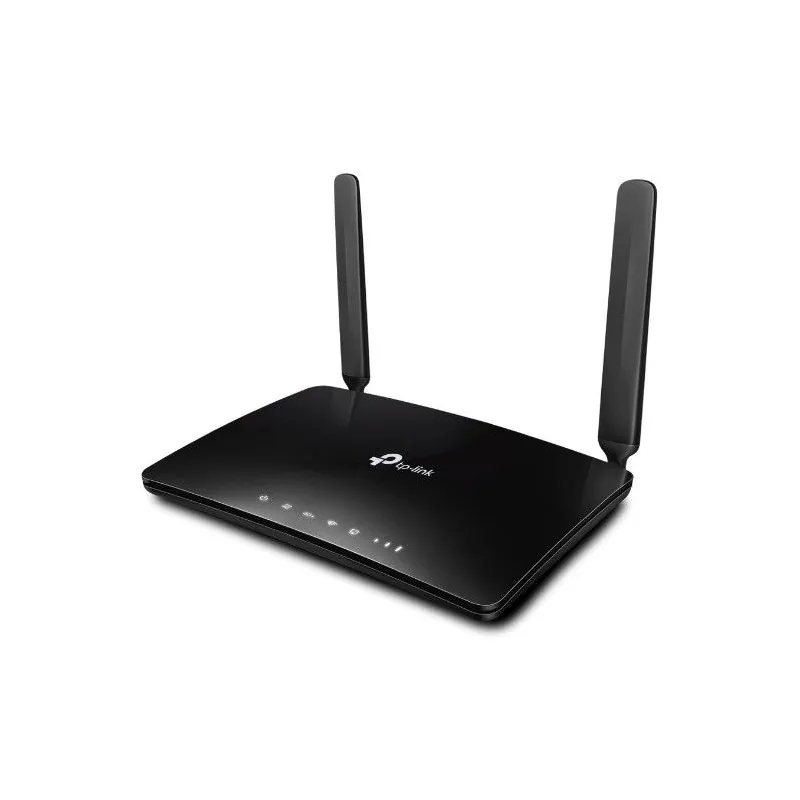

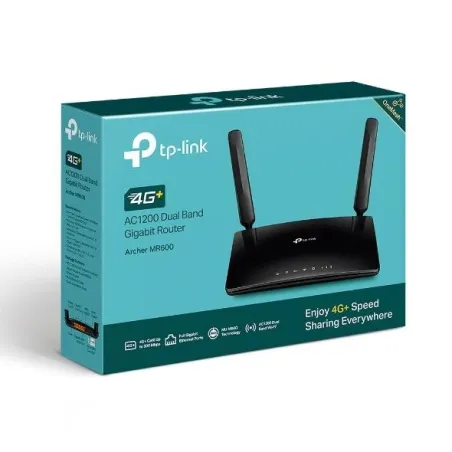

Overview | TP-Link Archer MR600 4G+ Cat6 AC1200 Wireless Dual Band 4G LTE Router แบบใส่ Sim รองรับ 4G ทุกเครือข่าย True, DTAC และ AIS, Port Lan Gigabit กระจายสัญญาณ Wifi มาตรฐาน AC |
HARDWARE FEATURES | |
---|---|

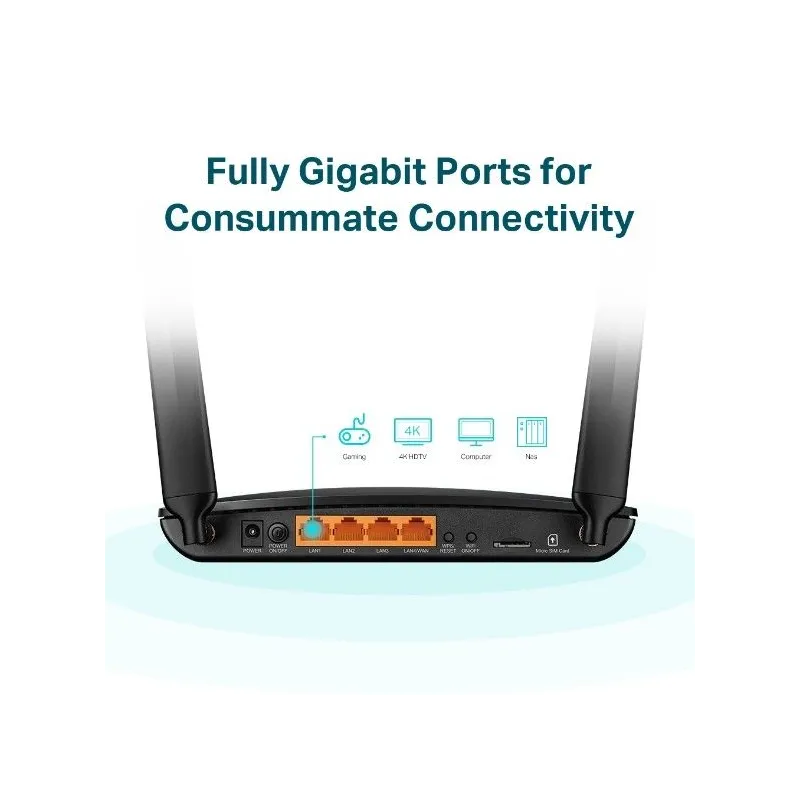

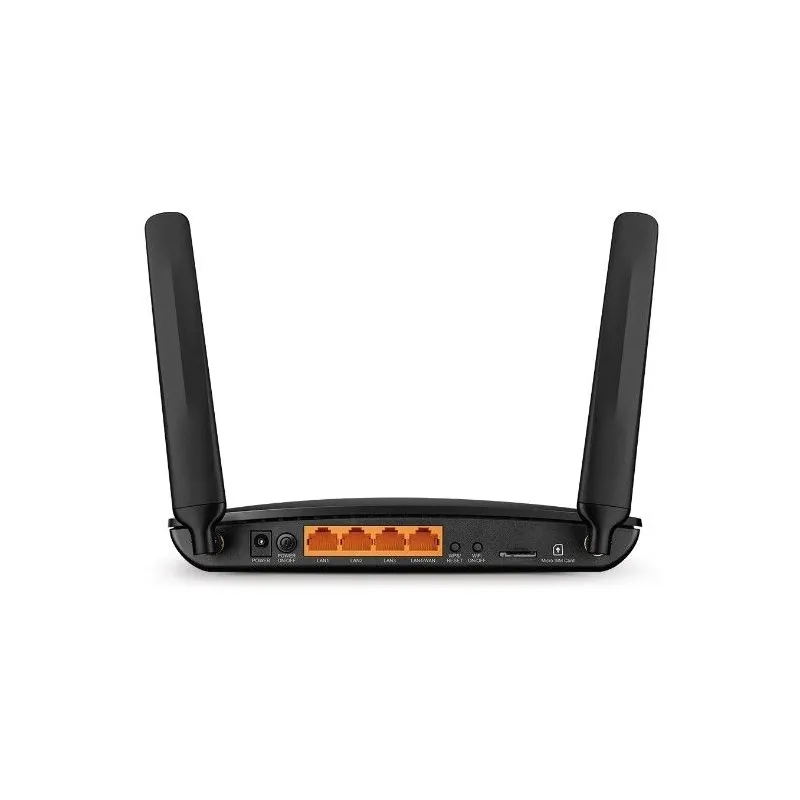

Interface | 1 × 10/100/1000 Mbps LAN/WAN Port |
Button | WPS/Reset Button, WiFi On/Off Button, Power On/Off Button |
External Power Supply | Power Adapter: : Input Power 100-240v~50/60 Hz 0.6A |
Dimensions ( W x D x H ) | 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in) |
Antenna | 2 × Detachable 4G LTE Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm |
Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) |
SOFTWARE FEATURES | |
Quality of Service | Bandwidth Control |
Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | TP-Link Cloud, Local Management, Remote Management |
DHCP | Server, DHCP Client List, Address Reservation |
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | TP-Link, DynDns, NO-IP |
VPN | PPTP VPN, OpenVPN |
Access Control | Parental Control, Local Management Control |
Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
OTHERS | |
Certification | CE, RoHS |
Package Contents | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600 |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
รับประกัน | Life Time |
** ในกรณีที่ต้องการทำ Dynamic DNS และ Forward Port เช่น เพื่อเชื่อมต่อกับกล้องเพื่อดูผ่าน Internet ให้ตรวจสอบกับผู้ให้บริการ เรื่อง IP Address ว่าเป็น IP Public หรือไม่ ในกรณีที่ไม่ได้เป็น IP Public จะไม่สามารถใช้ Dynamic DNS ได้ **สามารถใช้กับระบบ Cloud ได้ไม่มีปัญหาใดๆ |
รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite
ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP
Share File / Printer ระหว่างสาขา
โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN
ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี
เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย
ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร
