Product Specification
|
|
Overview
|

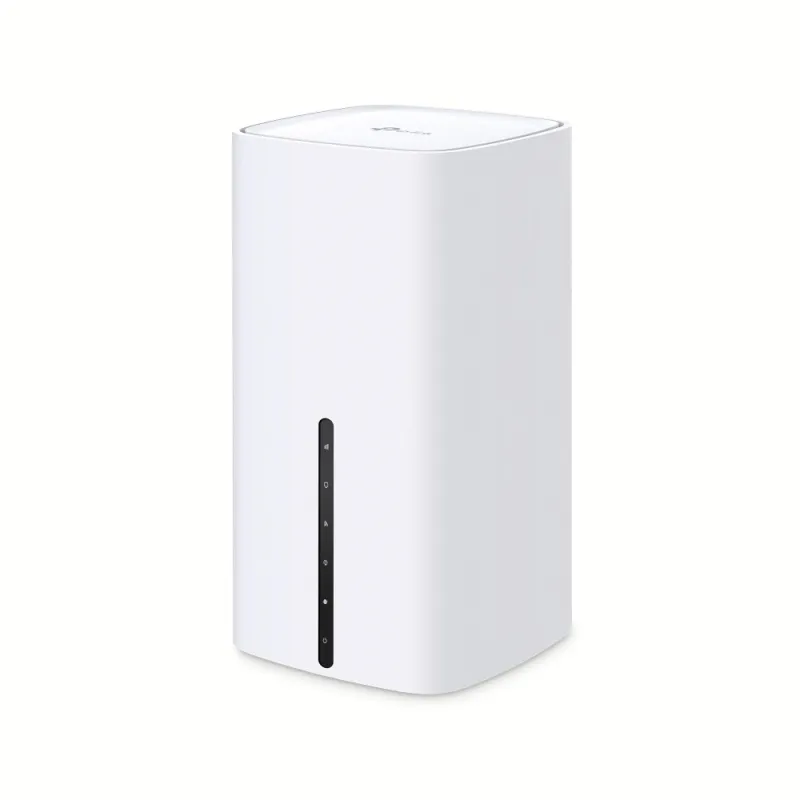

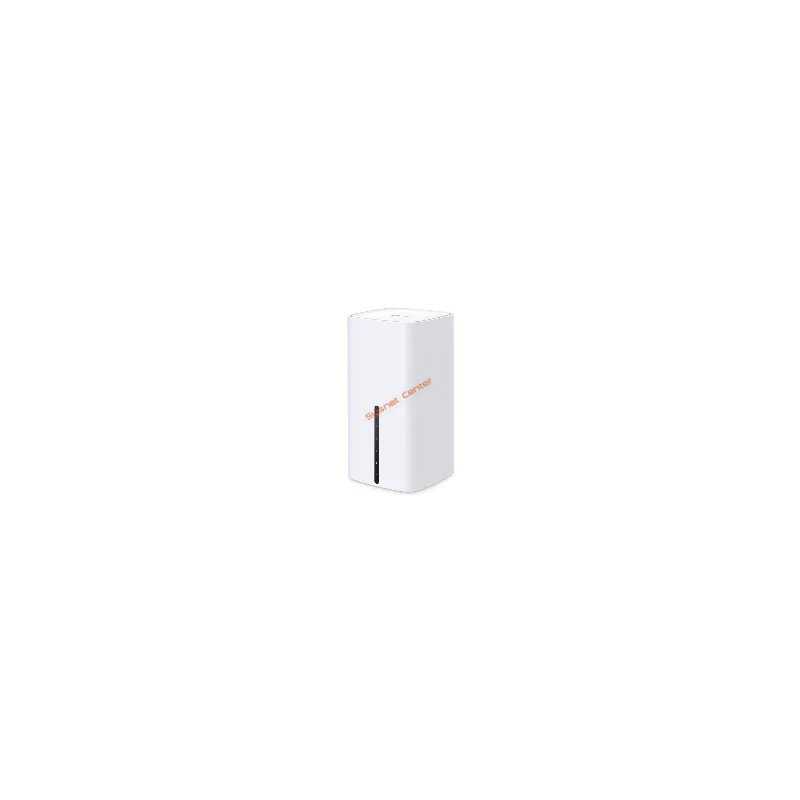

TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit 5G Router แบบใส่ Sim รองรับเครือข่าย 4G/5G ทุกเครือข่าย WIFI มาตรฐาน AX1800, รองรับ MESH WIFI, 2 Port LAN/ 1 Port WAN Gigabit
|
HARDWARE FEATURES
|
| Interface |

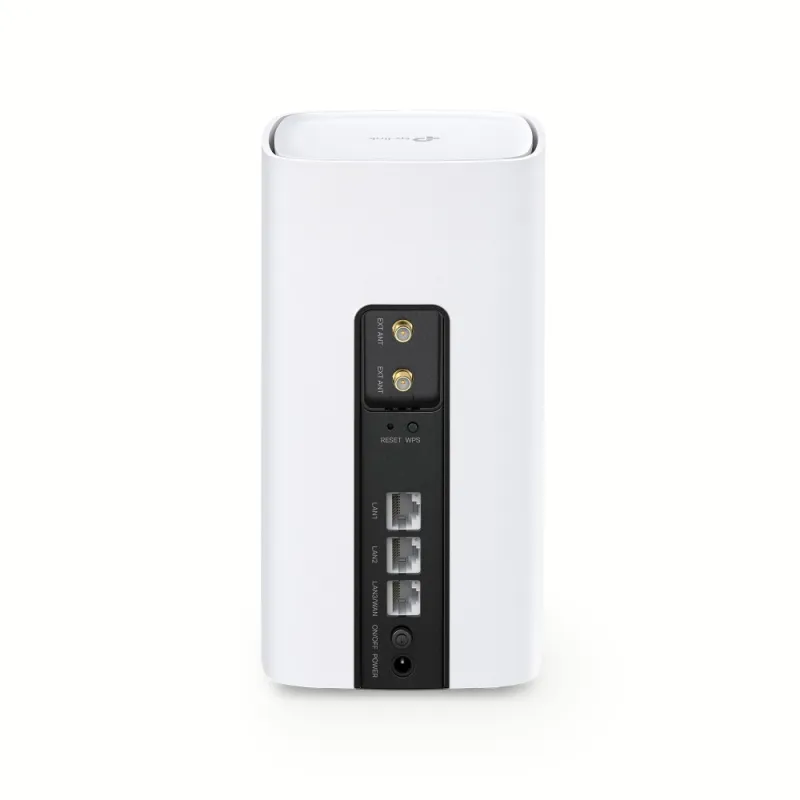

1 × 10/100/1000 Mbps LAN/WAN Port2 × 10/100/1000 Mbps LAN Ports1 × Nano SIM Card Slot2 × External SMA-F Antenna Interface |
| Button |
WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6AOutput parameter 12VDC 2A |
| Dimensions ( W x D x H ) |
3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
| Antenna |
8 × 5G/LTE Internal Antennas2 × Wi-Fi Internal Antennas |
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity |
5GHz：11a 54M：-80 dBm11ax HE20：-68 dBm11ax HE40：-65 dBm11ax HE80：-62 dBm11ac VHT20：-76 dBm11ac VHT40：-72 dBm11ac VHT80：-68 dBm11n HT20：-79 dBm11n HT40：-75 dBm2.4GHz11g 54M：-78 dBm11ax HE20：-65 dBm11ax HE40：-62 dBm11ac VHT20：-73 dBm11ac VHT40：-68 dBm11n HT20：-75 dBm11n HT40：-72 dBm |
| Transmit Power |
<23dBm (5.15GHz~5.35GHz)<30dBm (5.47GHz~5.71GHz)<20dBm (2.4GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
SOFTWARE FEATURES
|
| Quality of Service |
Prioritizes network traffic by device or application |
| Security |
DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| VPN |
PPTP VPN, IPSec VPN , OpenVPN |
| Access Control |
Parental Control, Local Management Control |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network x 15 GHz Guest Network x 1 |
OTHERS
|
| Certification |
CE, RoHS |
| Package Contents |
5G AX1800 Wireless Dual-Band Gigabit Router Archer NX2001.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserNano SIM Card |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
|
รับประกัน
|
Life Time
|
