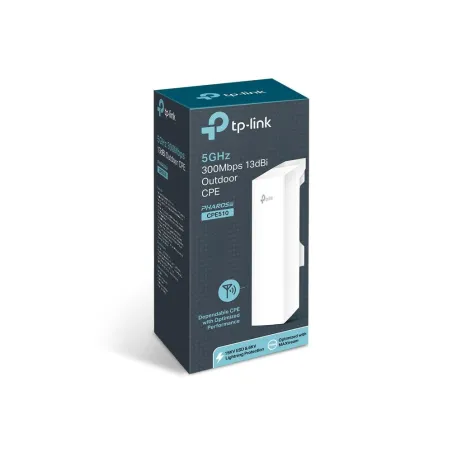

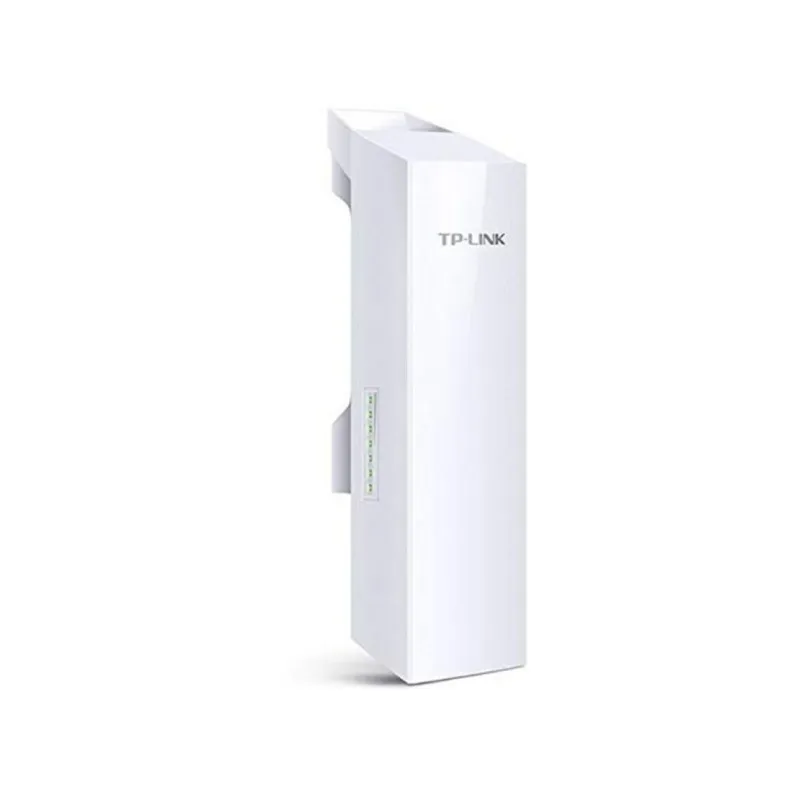

CPE510 TP-LINK WISP CPE Outdoor 5GHz 300Mbps เชื่อมต่อเครือข่ายระยะไกล

Overview

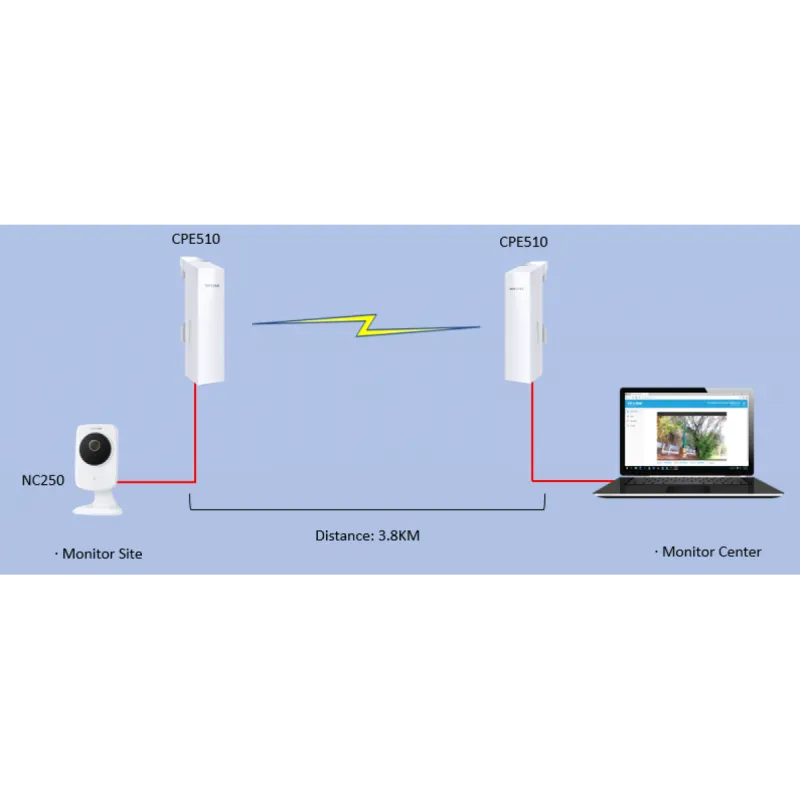

TP-LINK CPE510 WISP CPE Outdoor 5GHz 300Mbps เชื่อมต่อเครือข่ายระยะไกล แบบ Point To Point และ Point To Multi-Point

รองรับ Mode AP  Client / Repeater / AP Router / AP Client Router (WISP) พร้อม POE

Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

64MB DDR2 RAM, 8MB Flash

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

9.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

224 x 79 x 60 mm

Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 45° (E-Plane)
Note: For more details, please refer to datasheet

15KV ESD Protection
6KV Lightning Protection

Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

IEEE 802.11a/n (with Pharos MAXtream disabled)

TDMA Mode (with Pharos MAXtream enabled)

Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

26dBm/398mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

110*57*33.5mm

1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Remote Reset Button

Green

100-240VAC, 50/60Hz

24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

>80%

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

CE, FCC, RoHS, IPX5

Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

รับประกัน

3 ปี
