Overview
|

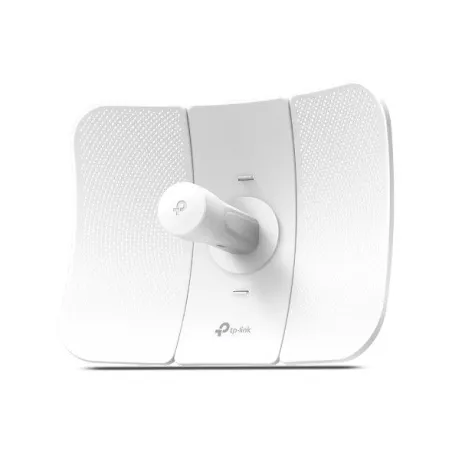

TP-LINK CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point, รองรับ Mode Access Point / Client / AP Client Router (WISP Client) / AP Router
กันน้ำกันฝุ่นมาตรฐาน IP65 พร้อม POE
|
|
|
|
Processor
|
Qualcomm 750MHz CPU, MIPS 74Kc
|
|
Memory
|
128 MB DDR2 RAM, 16 MB Flash
|
|
Interface
|
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
|
|
Power Supply
|
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
|
|
Dimensions ( W x D x H )
|
14.4 x 11.0 x 8.1 in.
(366 x 280 x 207 mm)
|
|
Antenna Gain
|
23 dBi
|
|
Antenna Beamwidth
|
9° (Azimuth)/7° (Elevation)
|
|
Protection
|
15 KV ESD Protection
6 KV Lightning Protection
|
|
Enclosure
|
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
|
|
|
|
Wireless Standards
|
IEEE 802.11a/n/ac
|
|
Wireless Speeds
|
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
|
|
Frequency
|
5.15–5.85 GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
|
|
Transmit Power
|
Max. 27 dBm (Adjustable power by 1dBm)
|
|
|
|
Network Configuration
|
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
|
|
Wireless Configurations
|
Selectable channel width: 20, 40 or 80MHz
Automatic Wi-Fi channel selection
RF transmit power adjustment in 1 dB step
Dynamic Frequency Selection (DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
SSID broadcast enable/ disable
Multi-SSID with VLAN tagging in AP mode
Distance/ ACK timeout setting
Wireless MAC address filter
Wireless advanced features:
Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia
Long range point-to-point
|
|
Management
|
Discovery and Remote Management with Pharos Control (Windows)
HTTP/ HTTPS Web-based management
System log
SNMP agent (v2c)
Ping watchdog
Dynamic DNS
SSH server
|
|
System Tools
|
Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage
Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
|
|
System-level Optimizations
|
Optimized IGMP Snooping / Proxy for multicast applications
|
|
|
|
Dimensions(W x D x H)
|
3.3 x 1.7 x 1.2 in.
(85 × 44 × 30 mm)
|
|
Interfaces
|
1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
|
|
Button
|
Remote Reset Button
|
|
Power Status LEDs
|
Green
|
|
Input
|
100-240VAC, 50/60Hz
|
|
Output
|
24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
|
|
Efficiency
|
> 84.29%
|
|
Certifications
|
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
|
|
|
|
Certification
|
CE, FCC, RoHS, IP65
|
|
Package Contents
|
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
|
|
Environment
|
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
|
|
รับประกัน
|
3 ปี
|
