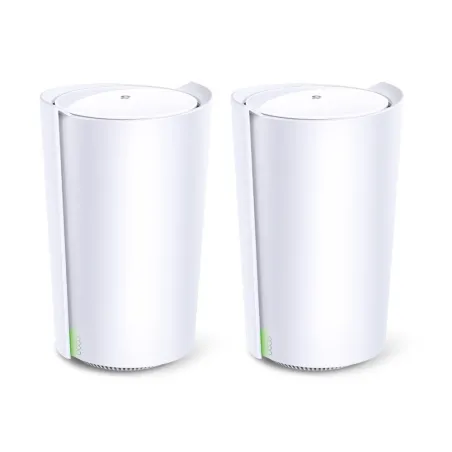

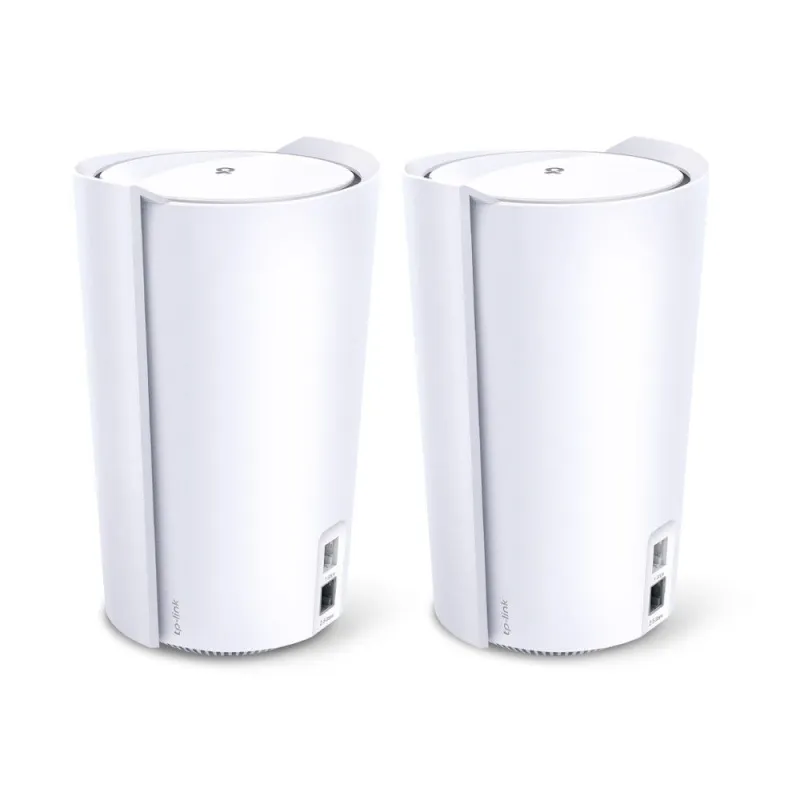

TP-LINK Deco X90 (Pack-2) AX6600 Whole Home Mesh Wi-Fi System

Product Specification

Overview

TP-LINK Deco X90 (Pack-2) AX6600 Whole Home Mesh Wi-Fi System

3 คลื่นความถี่ Tri-Band ช่วยในการเชื่อมต่อระบบ MESH ได้อย่างมีประสิทธิภาพสูงสุด

4x4 MIMO 8 Stream

Port Lan ความเร็ว 2.5 Gigabit 1 Port, 1 Gigabit 1 Port

กระจายสัญญาณ Wireless ภายในบ้านด้วยระบบ Mesh WIFI ไม่ต้องเดินสาย LAN

รับประกัน

Limited lifetime

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

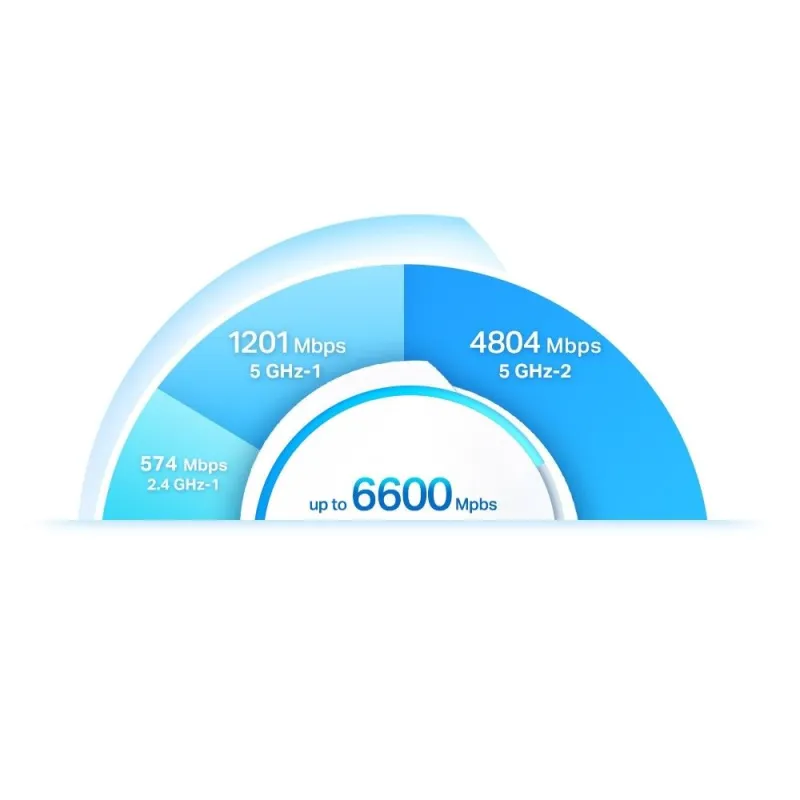

AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

4-6+ Bedroom Houses (2-pack)

TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

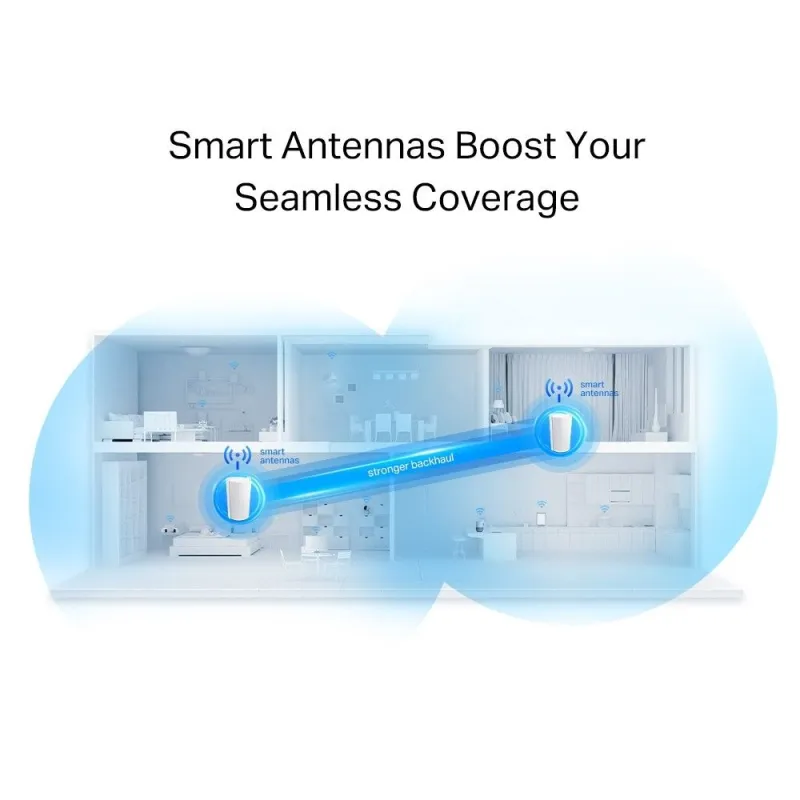

2× Smart Antennas (Internal)
Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverage

Tri-Band
Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

Very High

Tri-Band
Distribute devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

8 Streams
More than enough bandwidth for connected devices

Router Mode
Access Point Mode

1.5 GHz Quad-Core CPU

1× 2.5 Gbps Port
1× Gigabit Port

*Per Deco Unit
Supports WAN/LAN auto-sensing

Reset Button

12 V 2.5 A

WPA-Personal
WPA2-Personal
WPA3-Personal

SPI Firewall
Access Control

HomeShield Security

Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

IPv4
IPv6

HomeShield

HomeShield Parental Controls

Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

HomeShield QoS

QoS by Device

OTA Firmware Upgrade
TP-Link ID
DDNS

Port Forwarding
UPnP

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

Address Reservation
DHCP Client List
Server

TP-Link

Deco App

5.1 × 4.8 × 8.3 in
(130 × 123 × 210 mm)

Deco X90 (2-pack)
2 Deco X90 Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide

Deco X90 (1-pack)
1 Deco X90 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide

Android 4.4 or later
iOS 9.0 or later

CE, EAC, FCC, IC, RoHS, RCM

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
