Product Specification |

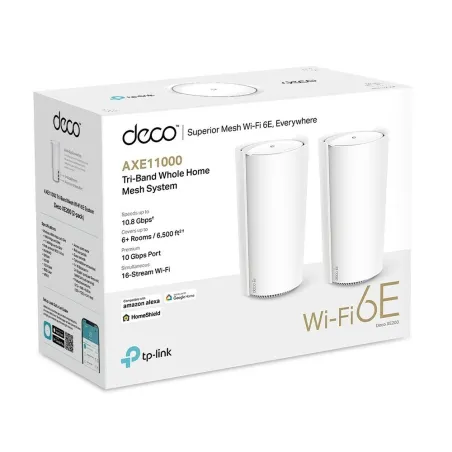

Overview | TP-LINK Deco XE200 (1-Pack) AXE11000 Whole Home Mesh Wi-Fi 6E System, Tri-Band 2.4/5/6GHz, Port Lan 10Gbps รองรับ MESH-WIFI เพื่อกระจายสัญญาณได้ครอบคลุมพื้นที่ รองรับมาตรฐาน WIFI 6E หลีกเลี่ยงความแออัดของสัญญาณด้วยย่านความถี่ใหม่ล่าสุด 6GHz ทำให้ได้ความเร็วได้สูงสุด |
WIRELESS |
|---|
Standards | Wi-Fi 6E
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
|---|
WiFi Speeds | AXE11000
6 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax) |
|---|
WiFi Range | 4-6+ Bedroom Houses (2-pack)
1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
16× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
|---|
WiFi Capacity | Very High Tri-Band
Distribute devices to different bands for optimal performance
8×8 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
16 Streams
More than enough bandwidth for connected devices |
|---|
Working Modes | Router Mode
Access Point Mode |
|---|
HARDWARE |
|---|
Ethernet Ports | 1× 10 Gbps Port + 2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing |
|---|
Buttons | Reset Button |
|---|
SECURITY |
|---|
WiFi Encryption | WPA-Personal
WPA2-Personal
WPA3-Personal |
|---|
Network Security | SPI Firewall
Access Control
HomeShield Security Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
|---|
Guest Network | 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
|---|
SOFTWARE |
|---|
Protocols | IPv4
IPv6 |
|---|
Service Kits | HomeShield |
|---|
Parental Controls | HomeShield Parental Controls Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
|---|
WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
|---|
Quality of Service | HomeShield QoS QoS by Device |
|---|
Cloud Service | OTA Firmware Upgrade
TP-Link ID
DDNS |
|---|
NAT Forwarding | Port Forwarding
UPnP |
|---|
IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
|---|
DHCP | Address Reservation
DHCP Client List
Server |
|---|
DDNS | TP-Link |
|---|
Management | Deco App |
|---|
TEST DATA |
|---|
WiFi Transmission Power | CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<23 dBm (6 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
<30 dBm (6 GHz)
|
|---|
PHYSICAL |
|---|
Dimensions (W×D×H) | 5.12 × 4.86 × 9.49 in (130 × 123.5 × 241 mm) |
|---|
Package Contents | Deco XE200 (2-pack)
2 Deco XE200 units
1 RJ45 Ethernet cable
2 Power adapters
Quick Installation Guide
Deco XE200 (1-pack)
1 Deco XE200 unit
1 RJ45 Ethernet cable
1 Power adapter
Quick Installation Guide |
|---|
OTHERS |
|---|
Certifications | CE, FCC, RoHS |
|---|
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH |
|---|
รับประกัน | Limited lifetime |
| |
