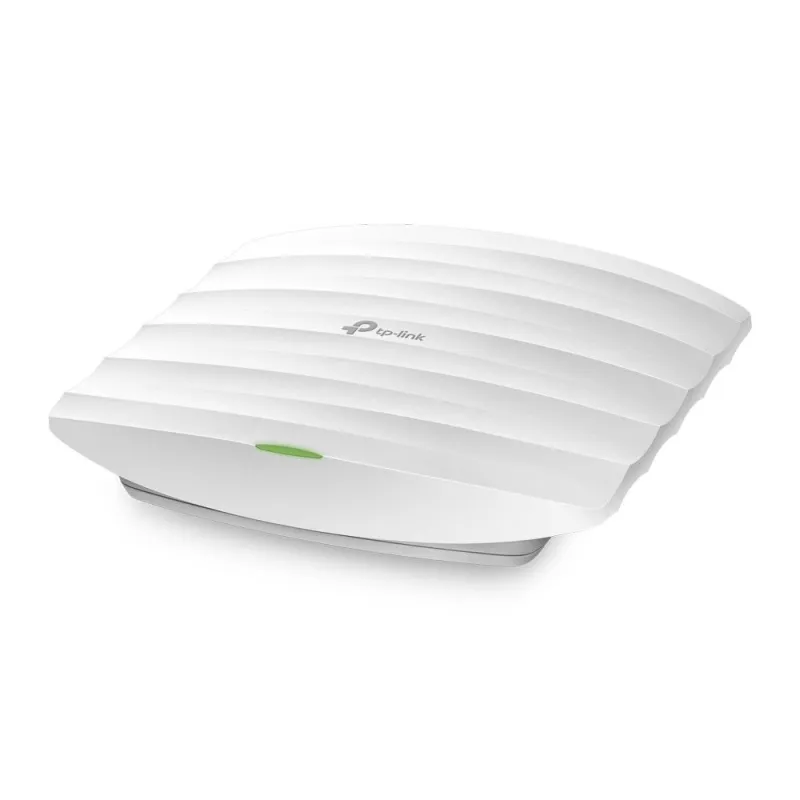

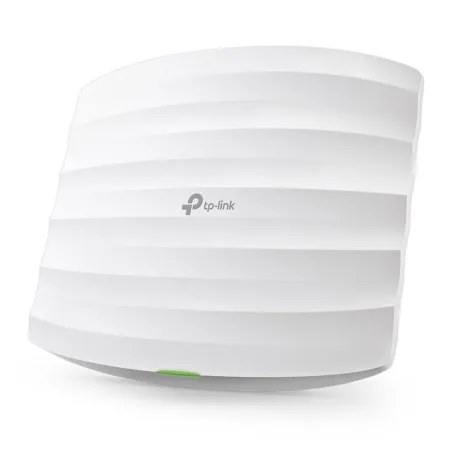

TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point, OMADA Controller

Name: TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point, OMADA Controller
Brand: TP-Link
SKU: 1996
Price: 880 THB
Availability: InStock

แบรนด์ TP-Link

TP-LINK EAP110 Wireless N Ceiling Mount Access Point 300Mbps เสาภายใน 4dBi กระจายรอบทิศทาง รองรับ Omada Controller

Support / ติดตั้งด้วยทีมงาน Certificate

สอบถามข้อมูลสินค้าเพิ่มเติม

LINE ID: @sysnet โทร: 02 102 4284

Click ต้องการใบเสนอราคา

รายละเอียด
รายละเอียดสินค้า

รายละเอียด

Omada EAP Datasheet
Omada Controller Software 3.0.2_User Guide
EAP Controller 2.5_User Guide
EAP110(US)_V4_Installation Guide
EAP110(US)_V4_User Guide

คู่มือการ Config TP-Link Omada Series

TP-Link EAP110

300Mbps Wireless N Ceiling Mount Access Point

Free Omada Controller software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100meters

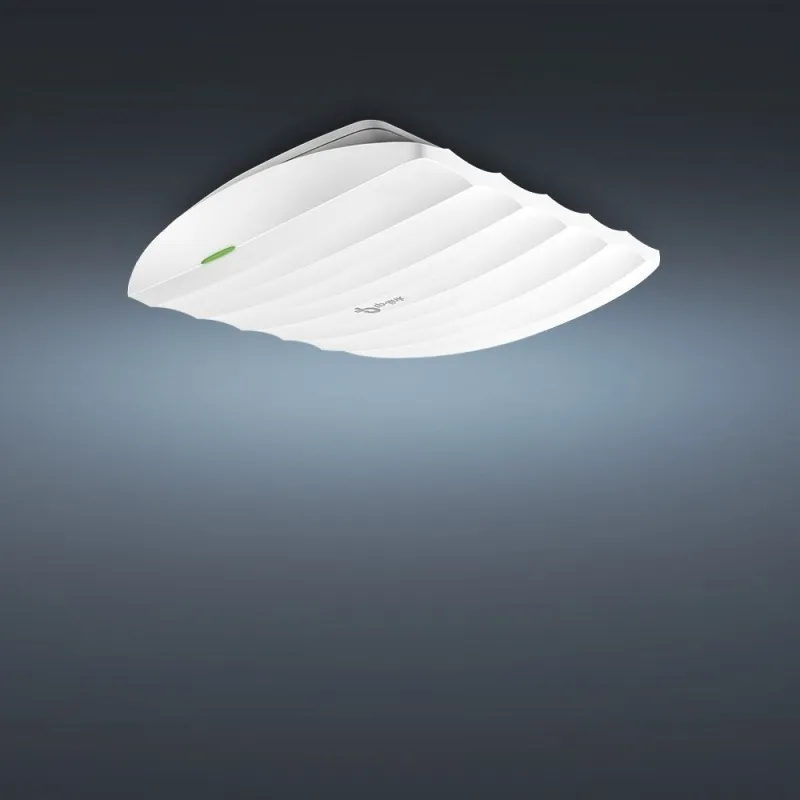

Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Facebook Wi-Fi and SMS authentication help to boost your business
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats
Supports management vlan for an enhanced network management

Product Specification
Overview	TP-LINK EAP110 Wireless N Ceiling Mount Access Point ความเร็วสูงสุดรวม 300Mbps เสาภายใน 4dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ Passive POE 24VDC (มีในชุดอุปกรณ์)

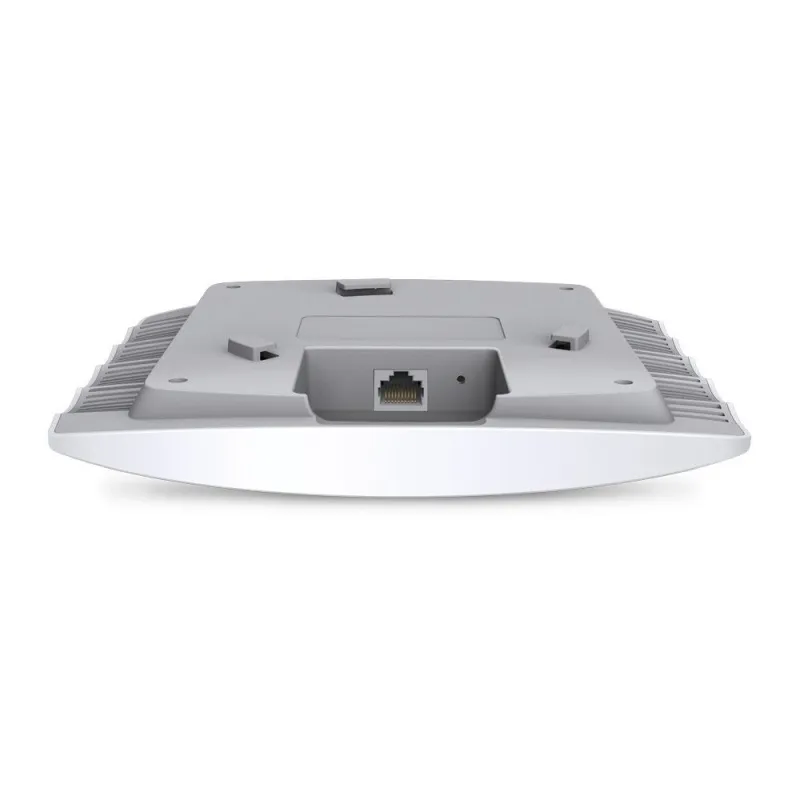

Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button	Reset
Power Supply	24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	2.8W
Dimensions	7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna Type	Internal 2* 4dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: ≤19dBm(EIRP) FCC: ≤21dBm
Omada Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS
Management VLAN	Yes
Certification	CE, FCC, RoHS

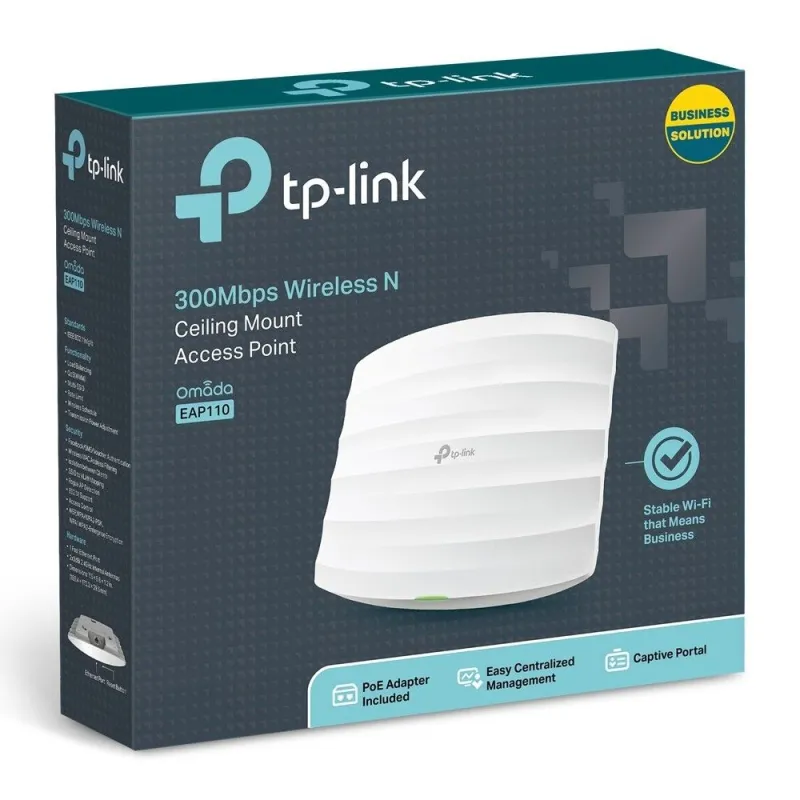

Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
รับประกัน	Limited lifetime
