Product Specification
|
|
Overview
|
TP-LINK EAP110-Outdoor Wireless N Outdoor Access Point ความเร็วสูงสุดรวม 300Mbps เสาภายนอก 3dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ Passive POE 24VDC (มีในชุดอุปกรณ์)
|
|
Interface
|

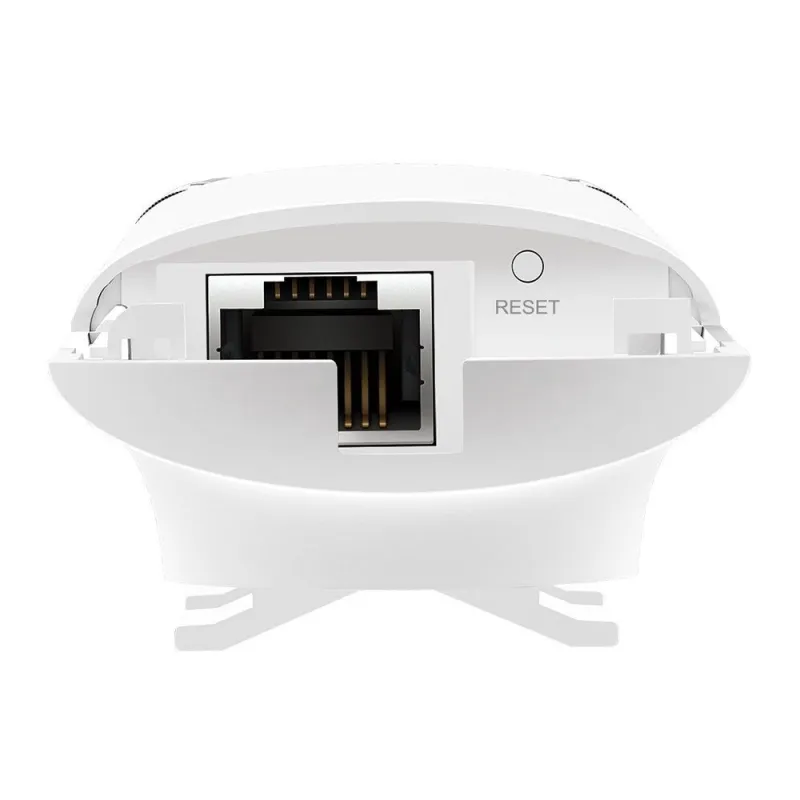

Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
|
|
Button
|
Reset
|
|
Power Supply
|
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
|
|
Power Consumption
|
3.12 W
|
|

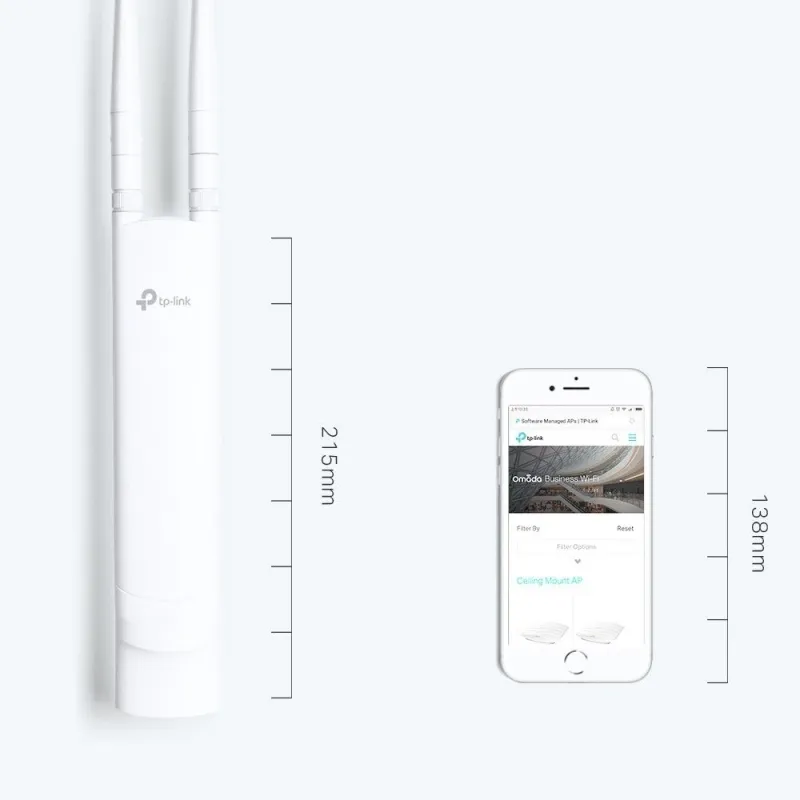

Dimensions ( W x D x H )
|
8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm)
|
|
Antenna Type
|
2*3dBi External Omni waterproof
|
|
Weatherproof Enclosure
|
IP65
|
|

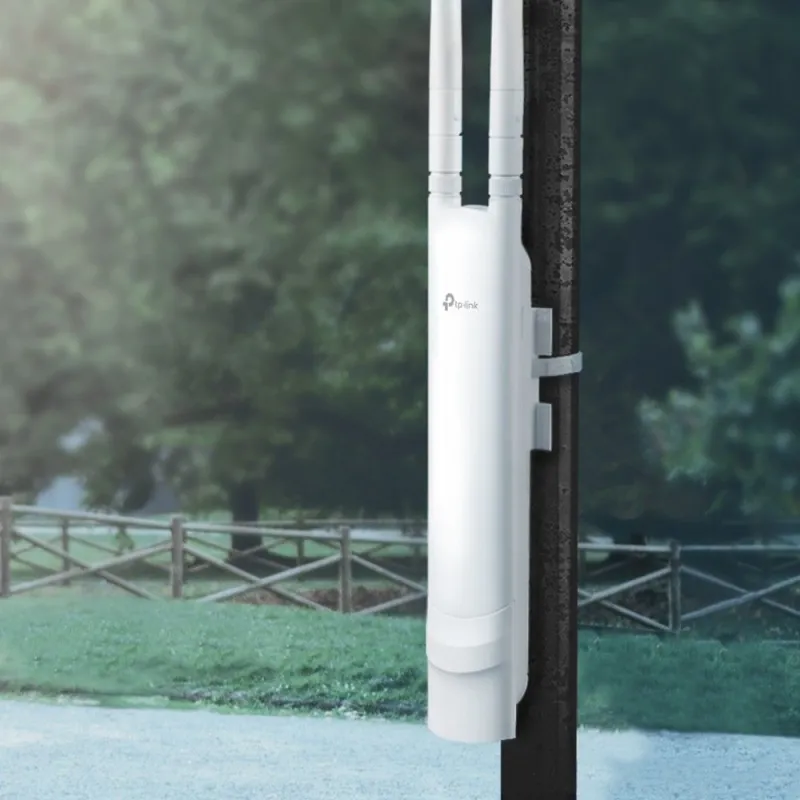

Mounting
|
Pole / Wall Mounting (Kits included)
|
|
Wireless Standards
|
IEEE 802.11n/g/b
|
|
Frequency
|
2.4GHz
|
|
Signal Rate
|
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
|
|
Transmit Power
|
CE：
≤20dBm (EIRP)
FCC:
≤22dBm
|
|
Wireless Functions
|
Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
|
|
Auranet Controller Software
|
Yes
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
Yes
|
|
System Logging Local/Remote Syslog
|
Yes
|
|
Telnet
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
L3 Management
|
Yes
|
|
Multi-site Management
|
Yes
|
|
Management VLAN
|
Yes
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide
|
|
System Requirements
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
|
|
Environment
|
Operating Temperature: -30℃~65℃ (-22℉~149℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
รับประกัน
|
3 Years
|
